AT211-CEPEK (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )5AFE,7AFE

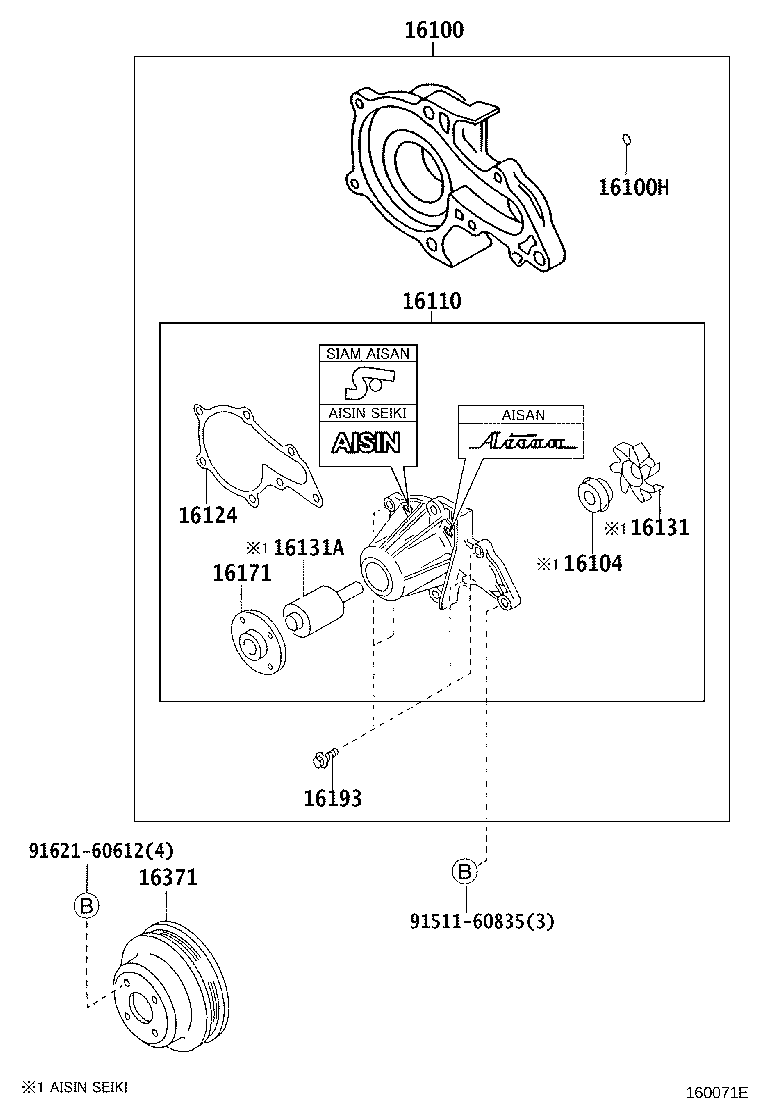

Click highlighted areas on diagram

diagram 16100 16100H 16104 16110 16124 16131 16131A 16171 16193 16371 9151160835 9162160612
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-19305

7AFE..AT211

 1
16100H - RING, O(FOR WATER PUMP)
96761-24035

4AGE,5AFE,7AFE..AT21#

 1
16104 - SEAL SET, WATER PUMP
16104-46060

7AFE..AT211

 1
16104-46060

5AFE,7AFE..AT211,212

 1
16104-46060

4AGE,5AFE,7AFE..AT21#

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-19185

7AFE..AT211

AISIN SEIKI

 1
16110-19175

7AFE..AT211

AISAN

 1
16110-19176

7AFE..AT211

AISAN

 1
16124 - GASKET, WATER PUMP COVER
16124-15110

5AFE,7AFE..AT211,212

AISIN SEIKI

 1
16124-16060

5AFE,7AFE..AT211,212

AISAN

 1
16131 - ROTOR, WATER PUMP
16131-16090

4AGE,5AFE,7AFE..AT21#

 1
16131-16090

5AFE,7AFE..AT211,212

 1
16131A - BEARING, WATER PUMP
90029-36846

4AGE,5AFE,7AFE..AT21#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-10012

5AFE,7AFE..AT211,212

AISIN SEIKI

 1
16171-15070

5AFE,7AFE..AT211,212

AISAN

 1
16171-15071

5AFE,7AFE..AT211,212

AISAN

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-15011

5AFE,7AFE..AT211,212

AISIN SEIKI

 4
16193-15100

5AFE,7AFE..AT211,212

AISAN

 4
16371 - PULLEY, FAN
16371-15071

5AFE,7AFE..AT211,212

 1
16371-15071

5AFE,7AFE..AT211,212

(J)

 1
16371-02030

5AFE,7AFE..AT211,212

(L)

 1
Common parts
91511-60835
91621-60612
