AT211-CEPEK (1996)
Toyota Carina Ff
(9608- )5AFE,7AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-15050 |
5AFE,7AFE..AT211,212 |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90506-16065 |
7AFE..AT211 |
1 | ||
| 13505B - BOLT, FLANGE (FOR IDLER) | ||||
| 90105-10334 |
5AFE,7AFE..AT211,212 |
1 | ||
| 13505C - PIN(FOR IDLER SPRING TENSION) | ||||
| 90249-06006 |
5AFE,7AFE..AT211,212 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-15040 |
7AFE..AT211 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-15030 |
5AFE,7AFE..AT211,212 |
1 | ||
| 13502-15030 |
7AFE..AT211 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-16070 |
7AFE..AT211 |
1 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-15900 |
5AFE,7AFE..AT211,212 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-19056 |
7AFE..AT211 |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-15010 |
5AFE,7AFE..AT211,212 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-15090 |
5AFE,7AFE..AT211,212 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02090 |
5AFE,7AFE..AT211,212 NO.2 |
8 | ||
| 90913-02088 |
5AFE,7AFE..AT211,212 NO.1 |
8 | ||
| 90913-02089 |
5AFE,7AFE..AT211,212 NO.1 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02090 |
5AFE,7AFE..AT211,212 NO.2 |
8 | ||
| 90913-02088 |
5AFE,7AFE..AT211,212 NO.1 |
8 | ||
| 90913-02089 |
5AFE,7AFE..AT211,212 NO.1 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-29039 |
5AFE,7AFE..AT211,212 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-29039 |
5AFE,7AFE..AT211,212 |
16 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-16031 |
5AFE,7AFE..AT211,212 |
16 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-16031 |
5AFE,7AFE..AT211,212 |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-15070 |
5AFE,7AFE..AT211,212 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-15020 |
5AFE,7AFE..AT211,212 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-15020 |
5AFE,7AFE..AT211,212 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
5AFE,7AFE..AT211,212 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
5AFE,7AFE..AT211,212 |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-74020 |
5AFE,7AFE..AT211,212 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-74020 |
5AFE,7AFE..AT211,212 |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-74070 |
5AFE,7AFE..AT211,212 厚さ=2.65 |
1 | ||
| 13753-74190 |
5AFE,7AFE..AT211,212 厚さ=2.95 |
1 | ||
| 13753-74010 |
5AFE,7AFE..AT211,212 厚さ=2.50 |
1 | ||
| 13753-74150 |
5AFE,7AFE..AT211,212 厚さ=2.85 |
1 | ||
| 13753-74090 |
5AFE,7AFE..AT211,212 厚さ=2.70 |
1 | ||
| 13753-74110 |
5AFE,7AFE..AT211,212 厚さ=2.75 |
1 | ||
| 13753-74170 |
5AFE,7AFE..AT211,212 厚さ=2.90 |
1 | ||
| 13753-74050 |
5AFE,7AFE..AT211,212 厚さ=2.60 |
1 | ||
| 13753-74290 |
5AFE,7AFE..AT211,212 厚さ=3.20 |
1 | ||
| 13753-74210 |
5AFE,7AFE..AT211,212 厚さ=3.00 |
1 | ||
| 13753-74030 |
5AFE,7AFE..AT211,212 厚さ=2.55 |
1 | ||
| 13753-74230 |
5AFE,7AFE..AT211,212 厚さ=3.05 |
1 | ||
| 13753-74330 |
5AFE,7AFE..AT211,212 厚さ=3.30 |
1 | ||
| 13753-74270 |
5AFE,7AFE..AT211,212 厚さ=3.15 |
1 | ||
| 13753-74130 |
5AFE,7AFE..AT211,212 厚さ=2.80 |
1 | ||
| 13753-74310 |
5AFE,7AFE..AT211,212 厚さ=3.25 |
1 | ||
| 13753-74250 |
5AFE,7AFE..AT211,212 厚さ=3.10 |
1 | ||
| 13753-74050 |
5AFE,7AFE..AT211,212 厚さ=2.60 |
16 | ||
| 13753-74030 |
5AFE,7AFE..AT211,212 厚さ=2.55 |
16 | ||
| 13753-74090 |
5AFE,7AFE..AT211,212 厚さ=2.70 |
16 | ||
| 13753-74070 |
5AFE,7AFE..AT211,212 厚さ=2.65 |
16 | ||
| 13753-74170 |
5AFE,7AFE..AT211,212 厚さ=2.90 |
16 | ||
| 13753-74110 |
5AFE,7AFE..AT211,212 厚さ=2.75 |
16 | ||
| 13753-74230 |
5AFE,7AFE..AT211,212 厚さ=3.05 |
16 | ||
| 13753-74150 |
5AFE,7AFE..AT211,212 厚さ=2.85 |
16 | ||
| 13753-74130 |
5AFE,7AFE..AT211,212 厚さ=2.80 |
16 | ||
| 13753-74010 |
5AFE,7AFE..AT211,212 厚さ=2.50 |
16 | ||
| 13753-74210 |
5AFE,7AFE..AT211,212 厚さ=3.00 |
16 | ||
| 13753-74190 |
5AFE,7AFE..AT211,212 厚さ=2.95 |
16 | ||
| 13753-74330 |
5AFE,7AFE..AT211,212 厚さ=3.30 |
16 | ||
| 13753-74290 |
5AFE,7AFE..AT211,212 厚さ=3.20 |
16 | ||
| 13753-74270 |
5AFE,7AFE..AT211,212 厚さ=3.15 |
16 | ||
| 13753-74310 |
5AFE,7AFE..AT211,212 厚さ=3.25 |
16 | ||
| 13753-74250 |
5AFE,7AFE..AT211,212 厚さ=3.10 |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-74070 |
5AFE,7AFE..AT211,212 厚さ=2.65 |
1 | ||
| 13753-74190 |
5AFE,7AFE..AT211,212 厚さ=2.95 |
1 | ||
| 13753-74010 |
5AFE,7AFE..AT211,212 厚さ=2.50 |
1 | ||
| 13753-74150 |
5AFE,7AFE..AT211,212 厚さ=2.85 |
1 | ||
| 13753-74090 |
5AFE,7AFE..AT211,212 厚さ=2.70 |
1 | ||
| 13753-74110 |
5AFE,7AFE..AT211,212 厚さ=2.75 |
1 | ||
| 13753-74170 |
5AFE,7AFE..AT211,212 厚さ=2.90 |
1 | ||
| 13753-74050 |
5AFE,7AFE..AT211,212 厚さ=2.60 |
1 | ||
| 13753-74290 |
5AFE,7AFE..AT211,212 厚さ=3.20 |
1 | ||
| 13753-74210 |
5AFE,7AFE..AT211,212 厚さ=3.00 |
1 | ||
| 13753-74030 |
5AFE,7AFE..AT211,212 厚さ=2.55 |
1 | ||
| 13753-74230 |
5AFE,7AFE..AT211,212 厚さ=3.05 |
1 | ||
| 13753-74330 |
5AFE,7AFE..AT211,212 厚さ=3.30 |
1 | ||
| 13753-74270 |
5AFE,7AFE..AT211,212 厚さ=3.15 |
1 | ||
| 13753-74130 |
5AFE,7AFE..AT211,212 厚さ=2.80 |
1 | ||
| 13753-74310 |
5AFE,7AFE..AT211,212 厚さ=3.25 |
1 | ||
| 13753-74250 |
5AFE,7AFE..AT211,212 厚さ=3.10 |
1 | ||
| 13753-74050 |
5AFE,7AFE..AT211,212 厚さ=2.60 |
16 | ||
| 13753-74030 |
5AFE,7AFE..AT211,212 厚さ=2.55 |
16 | ||
| 13753-74090 |
5AFE,7AFE..AT211,212 厚さ=2.70 |
16 | ||
| 13753-74070 |
5AFE,7AFE..AT211,212 厚さ=2.65 |
16 | ||
| 13753-74170 |
5AFE,7AFE..AT211,212 厚さ=2.90 |
16 | ||
| 13753-74110 |
5AFE,7AFE..AT211,212 厚さ=2.75 |
16 | ||
| 13753-74230 |
5AFE,7AFE..AT211,212 厚さ=3.05 |
16 | ||
| 13753-74150 |
5AFE,7AFE..AT211,212 厚さ=2.85 |
16 | ||
| 13753-74130 |
5AFE,7AFE..AT211,212 厚さ=2.80 |
16 | ||
| 13753-74010 |
5AFE,7AFE..AT211,212 厚さ=2.50 |
16 | ||
| 13753-74210 |
5AFE,7AFE..AT211,212 厚さ=3.00 |
16 | ||
| 13753-74190 |
5AFE,7AFE..AT211,212 厚さ=2.95 |
16 | ||
| 13753-74330 |
5AFE,7AFE..AT211,212 厚さ=3.30 |
16 | ||
| 13753-74290 |
5AFE,7AFE..AT211,212 厚さ=3.20 |
16 | ||
| 13753-74270 |
5AFE,7AFE..AT211,212 厚さ=3.15 |
16 | ||
| 13753-74310 |
5AFE,7AFE..AT211,212 厚さ=3.25 |
16 | ||
| 13753-74250 |
5AFE,7AFE..AT211,212 厚さ=3.10 |
16 | ||
| Common parts | ||||
| 90119-10380 | ||||
| 90206-34001 | ||||
| 90250-04108 | ||||
| 90520-31002 | ||||

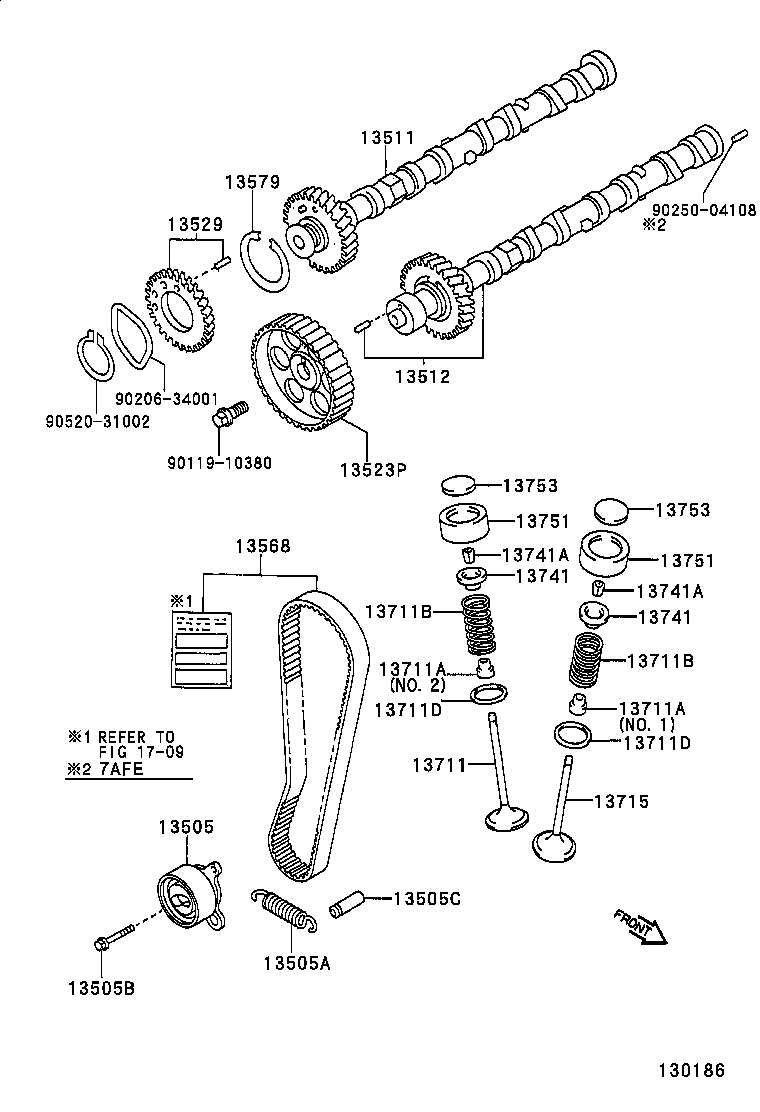

| Linked diagrams | ||||
| 1709 | ||||
