AT211-CEPEK (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )5AFE,7AFE

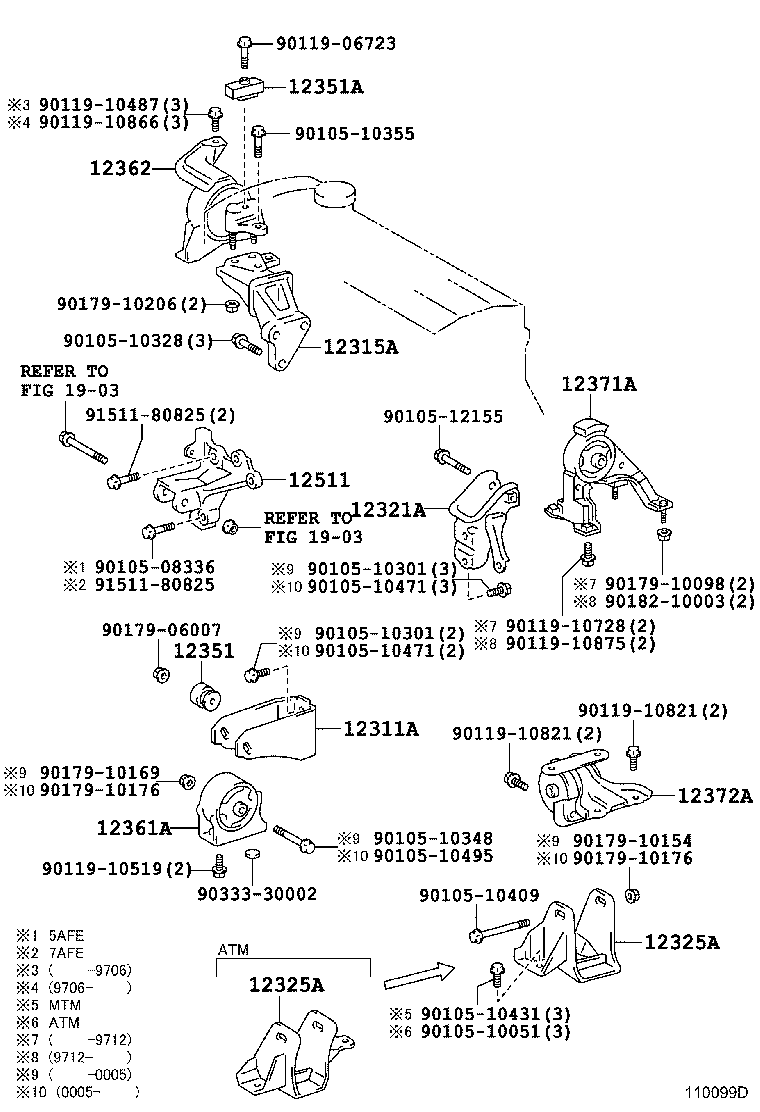

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12325A 12351 12351A 12361A 12362 12371A 12372A 12511 1903 1903 9010508336 9010510051 9010510301 9010510301 9010510328 9010510348 9010510355 9010510409 9010510431 9010510471 9010510471 9010510495 9010512155 9011906723 9011910487 9011910519 9011910728 9011910821 9011910821 9011910866 9011910875 9017906007 9017910098 9017910154 9017910169 9017910176 9017910176 9017910206 9018210003 9033330002 9151180825 9151180825
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-16170

5AFE,7AFE..AT211,212

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-16061

5AFE,7AFE..AT211,212

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-16270

5AFE,7AFE..AT211,212..4FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16210

7AFE..AT211..4FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16210

7AFE..AT211..4FC

 1
12351 - DAMPER, ENGINE MOUNTING
12351-64020

5AFE,7AFE..AT211,212

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-16040

5AFE,7AFE..AT211,212

 1
12351-16050

5AFE,7AFE..AT211,212

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-16290

5AFE,7AFE..AT211,212..4FC

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-16120

5AFE,7AFE..AT211,212

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-16350

5AFE,7AFE..AT211,212

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-16351

5AFE,7AFE..AT211,212..4FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-16110

7AFE..AT211

 1
Common parts
90105-08336
90105-10051
90105-10301
90105-10328
90105-10348
90105-10355
90105-10409
90105-10431
90105-10471
90105-10495
90105-12155
90119-06723
90119-10487
90119-10519
90119-10728
90119-10821
90119-10866
90119-10875
90179-06007
90179-10098
90179-10154
90179-10169
90179-10176
90179-10206
90182-10003
90333-30002
91511-80825
Linked diagrams
1903
