AT211-CEMEK (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )AT21#..MTM

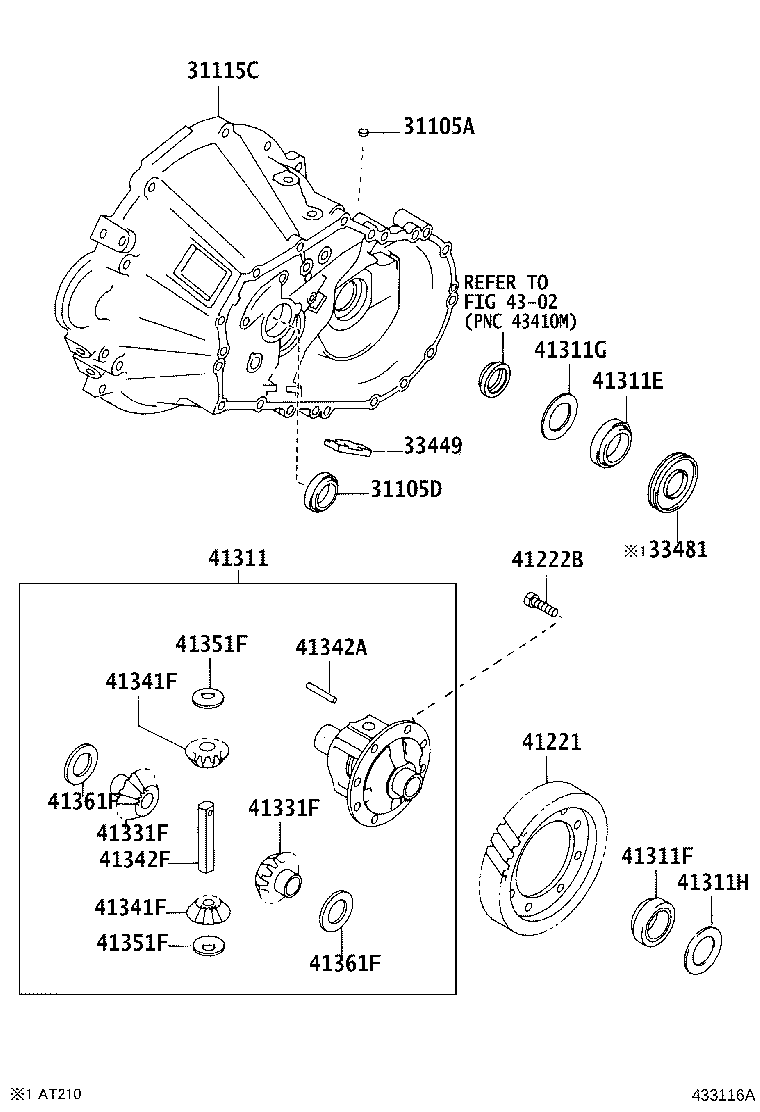

Click highlighted areas on diagram

C51,C56,C57,C160

diagram 31105A 31105D 31115C 33449 33481 41221 41222B 41311 41311E 41311F 41311G 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302
Part # Description Qty Price
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

AT21#,CT210,211..MTM

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25016

AT211,212..5F

 1
90311-30006

CT210,211,215,ST215..5F

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-16042

AT210..6F;AT211,212..5F

 1
31115-16041

AT21#..5F

 1
33449 - MAGNET, TRANSMISSION
33449-12020

AT21#..MTM

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12330

AT211..5F

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-11040

ST215..5F..TI;AT21#,CT210,211..MTM

 8
41311 - CASE, FRONT DIFFERENTIAL
41301-12041

AT21#..MTM

 1
41301-32060

CT210,211..5F

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40016

CT210,211..5F

 1
90366-38004

AT21#..MTM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

AT212;AT210,211..MTM

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90201-41012

AT21#..MTM

厚さ=2.10

 1
90560-41003

AT21#..MTM

厚さ=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90201-41048

AT21#..MTM

厚さ=2.20,ﾏｰｸ C

 1
90201-41046

AT21#..MTM

厚さ=2.10,ﾏｰｸ A

 1
90201-41052

AT21#..MTM

厚さ=2.40,ﾏｰｸ G

 1
90201-41053

AT21#..MTM

厚さ=2.45,ﾏｰｸ H

 1
90201-41055

AT21#..MTM

厚さ=2.55,ﾏｰｸ K

 1
90201-41056

AT21#..MTM

厚さ=2.60,ﾏｰｸ L

 1
90201-41061

AT21#..MTM

厚さ=2.85,ﾏｰｸ R

 1
90201-41047

AT21#..MTM

厚さ=2.15,ﾏｰｸ B

 1
90201-41050

AT21#..MTM

厚さ=2.30,ﾏｰｸ E

 1
90201-41057

AT21#..MTM

厚さ=2.65,ﾏｰｸ M

 1
90201-41058

AT21#..MTM

厚さ=2.70,ﾏｰｸ N

 1
90201-41051

AT21#..MTM

厚さ=2.35,ﾏｰｸ F

 1
90201-41054

AT21#..MTM

厚さ=2.50,ﾏｰｸ J

 1
90201-41063

AT21#..MTM

厚さ=2.95,ﾏｰｸ T

 1
90201-41060

AT21#..MTM

厚さ=2.80,ﾏｰｸ Q

 1
90201-41059

AT21#..MTM

厚さ=2.75,ﾏｰｸ P

 1
90201-41049

AT21#..MTM

厚さ=2.25,ﾏｰｸ D

 1
90201-41064

AT21#..MTM

厚さ=3.00,ﾏｰｸ U

 1
90201-41062

AT21#..MTM

厚さ=2.90,ﾏｰｸ S

 1
90564-41016

AT21#..MTM

厚さ=2.20,ﾏｰｸ CC

 1
90564-41020

AT21#..MTM

厚さ=2.40,ﾏｰｸ GG

 1
90564-41014

AT21#..MTM

厚さ=2.10,ﾏｰｸ AA

 1
90564-41015

AT21#..MTM

厚さ=2.15,ﾏｰｸ BB

 1
90564-41017

AT21#..MTM

厚さ=2.25,ﾏｰｸ DD

 1
90564-41022

AT21#..MTM

厚さ=2.50,ﾏｰｸ JJ

 1
90564-41031

AT21#..MTM

厚さ=2.95,ﾏｰｸ TT

 1
90564-41023

AT21#..MTM

厚さ=2.55,ﾏｰｸ KK

 1
90564-41021

AT21#..MTM

厚さ=2.45,ﾏｰｸ HH

 1
90564-41028

AT21#..MTM

厚さ=2.80,ﾏｰｸ QQ

 1
90564-41027

AT21#..MTM

厚さ=2.75,ﾏｰｸ PP

 1
90564-41019

AT21#..MTM

厚さ=2.35,ﾏｰｸ FF

 1
90564-41029

AT21#..MTM

厚さ=2.85,ﾏｰｸ RR

 1
90564-41026

AT21#..MTM

厚さ=2.70,ﾏｰｸ NN

 1
90564-41032

AT21#..MTM

厚さ=3.00,ﾏｰｸ UU

 1
90564-41024

AT21#..MTM

厚さ=2.60,ﾏｰｸ LL

 1
90564-41025

AT21#..MTM

厚さ=2.65,ﾏｰｸ MM

 1
90564-41018

AT21#..MTM

厚さ=2.30,ﾏｰｸ EE

 1
90564-41030

AT21#..MTM

厚さ=2.90,ﾏｰｸ SS

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

AT21#

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

AT21#

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

AT21#

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

AT21#

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ST215..TI;AT21#,CT210,211,216

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12140

AT212;AT210,211..MTM

 1
41342-32020

CT210,211;ST215..5F..TI

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

AT21#

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

AT21#

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22020

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.00,ﾏｰｸ 02

 2
41361-22150

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.05,ﾏｰｸ 15

 2
41361-22030

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.10,ﾏｰｸ 03

 2
41361-22040

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=0.95,ﾏｰｸ 14

 2
41361-22160

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.15,ﾏｰｸ 16

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22020

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.00,ﾏｰｸ 02

 2
41361-22150

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.05,ﾏｰｸ 15

 2
41361-22030

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.10,ﾏｰｸ 03

 2
41361-22040

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=0.95,ﾏｰｸ 14

 2
41361-22160

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.15,ﾏｰｸ 16

 2
Linked diagrams
4302

(9608- )CT210,211..5F

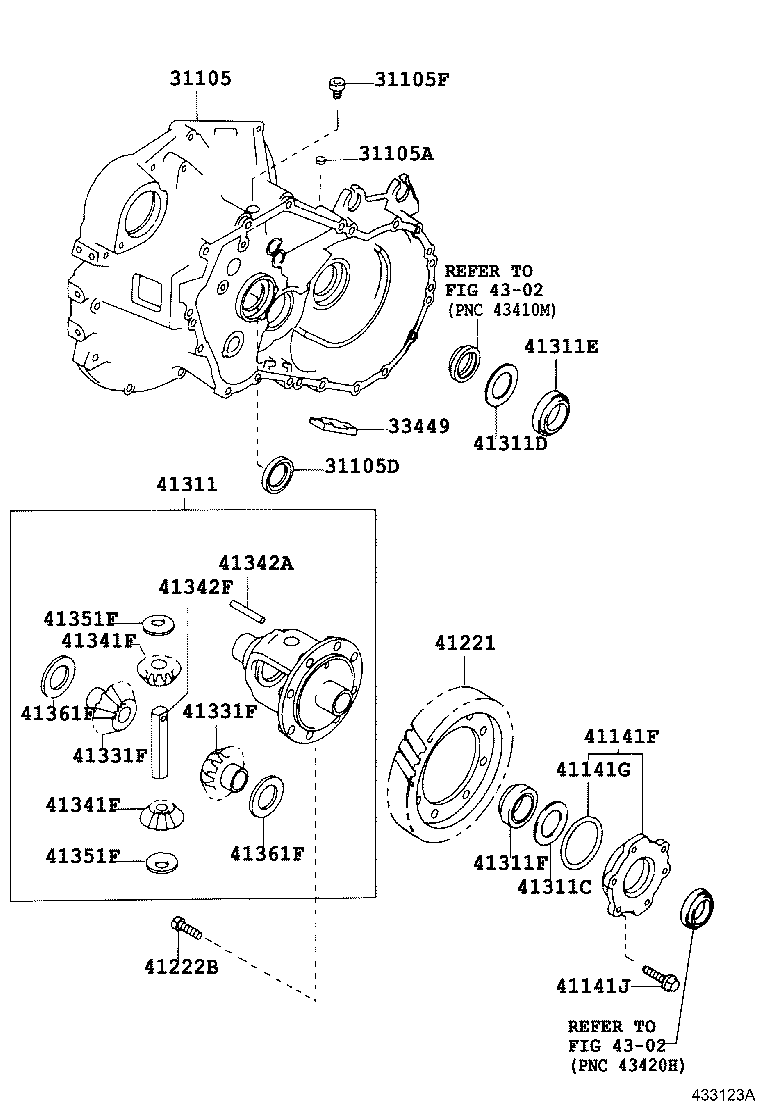

Click highlighted areas on diagram

S51

diagram 31105 31105A 31105D 31105F 33449 41141F 41141G 41141J 41221 41222B 41311 41311C 41311D 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302 4302
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-32070

CT210,211..5F

 1
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

AT21#,CT210,211..MTM

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25016

AT211,212..5F

 1
90311-30006

CT210,211,215,ST215..5F

 1
33449 - MAGNET, TRANSMISSION
33449-12020

AT21#..MTM

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12330

AT211..5F

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-11040

ST215..5F..TI;AT21#,CT210,211..MTM

 8
41311 - CASE, FRONT DIFFERENTIAL
41301-12041

AT21#..MTM

 1
41301-32060

CT210,211..5F

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45011

CT210,211..5F

厚さ=2.40,ﾏｰｸ 11

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40016

CT210,211..5F

 1
90366-38004

AT21#..MTM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

AT212;AT210,211..MTM

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

AT21#

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

AT21#

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

AT21#

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

AT21#

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ST215..TI;AT21#,CT210,211,216

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12140

AT212;AT210,211..MTM

 1
41342-32020

CT210,211;ST215..5F..TI

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

AT21#

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

AT21#

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22020

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.00,ﾏｰｸ 02

 2
41361-22150

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.05,ﾏｰｸ 15

 2
41361-22030

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.10,ﾏｰｸ 03

 2
41361-22040

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=0.95,ﾏｰｸ 14

 2
41361-22160

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.15,ﾏｰｸ 16

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22020

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.00,ﾏｰｸ 02

 2
41361-22150

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.05,ﾏｰｸ 15

 2
41361-22030

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.10,ﾏｰｸ 03

 2
41361-22040

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=0.95,ﾏｰｸ 14

 2
41361-22160

ST215..5F..TI;AT21#,CT210,211..MTM

厚さ=1.15,ﾏｰｸ 16

 2
Linked diagrams
4302
