AT211-CEMEK (1996)
Toyota Carina Ff

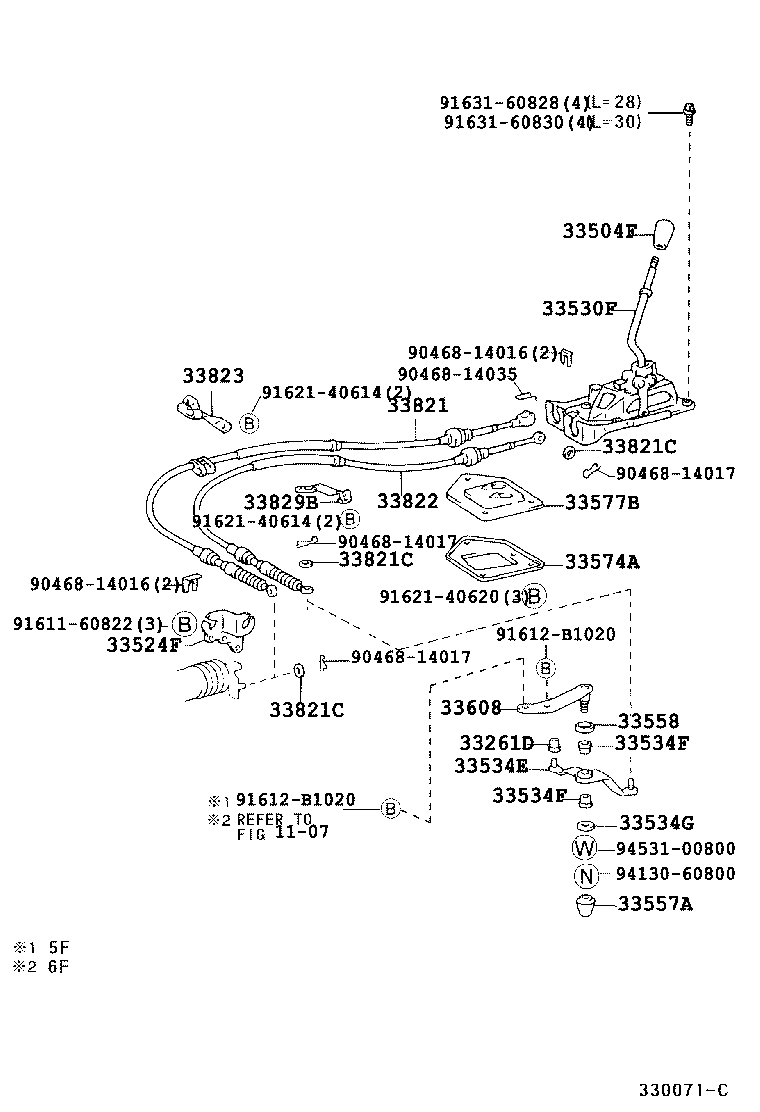

(9608- )AT21#..MTM
C51,C56,C57,C160
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 33557-33010 |
AT21#..MTM |
1 | ||
| 33557-33010 |
AT211,212..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180C0 |
AT211,212,CT21#,ST215..5F BLACK,TRIM1#,4# |
1 | ||
| 33504-12180C0 |
AT211,212,CT211,ST215..5F BLACK,TRIM12,13 |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-12011 |
AT21#..MTM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-20720 |
AT21#,CT210..5F |
1 | ||
| 33530-20721 |
ST215..5F..TI;AT21#,CT210,211..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-16051 |
AT21#..5F |
1 | ||
| 33534-10060 |
AT211,212..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT211,212,CT211,ST215..5F |
2 | ||
| 90386-12022 |
AT21#,CT210,211,215,ST215..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT211,212,CT211,ST215..5F |
2 | ||
| 90386-12022 |
AT21#,CT210,211,215,ST215..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AT211,212,CT211,ST215..5F |
1 | ||
| 90201-08028 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AT211,212,CT211,ST215..5F |
1 | ||
| 33557-32010 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
AT211,212..5F |
1 | ||
| 33558-10030 |
ST215..5F..SI;AT21#,CT215..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-20380 |
AT21#,CT21#,ST215 |
1 | ||
| 33577B - COVER, CONTROL SHAFT HOLE | ||||
| 33577-20010 |
AT21#,CT210,211,215,ST215..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-16021 |
AT21#..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-2B310 |
AT211,212..5F |
1 | ||
| 33821-2B380 |
AT21#..5F |
1 | ||
| 33821-2B330 |
CT210,211..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
AT21#,CT210,211,215,ST215..MTM ｼﾌﾄﾚﾊﾞｰ側 |
1 | ||
| 90201-08077 |
AT21#,CT210,211,215,ST215..MTM 外径=30,ﾄﾗﾝｽｱｸｽﾙ側 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
AT21#,CT210,211,215,ST215..MTM ｼﾌﾄﾚﾊﾞｰ側 |
1 | ||
| 90201-08077 |
AT21#,CT210,211,215,ST215..MTM 外径=30,ﾄﾗﾝｽｱｸｽﾙ側 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
AT21#,CT210,211,215,ST215..MTM ｼﾌﾄﾚﾊﾞｰ側 |
1 | ||
| 90201-08077 |
AT21#,CT210,211,215,ST215..MTM 外径=30,ﾄﾗﾝｽｱｸｽﾙ側 |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-20630 |
CT210,211..5F |
1 | ||
| 33822-20610 |
AT211,212..5F |
1 | ||
| 33822-20680 |
AT21#..5F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-20190 |
AT21#,CT210,211..MTM |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-20060 |
ST215..5F..SI;AT21#,CT210,211,215..MTM |
1 | ||
| Common parts | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14035 | ||||
| 91611-60822 | ||||
| 91612-B1020 | ||||
| 91621-40614 | ||||
| 91621-40620 | ||||
| 91631-60828 | ||||
| 91631-60830 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 1107 | ||||

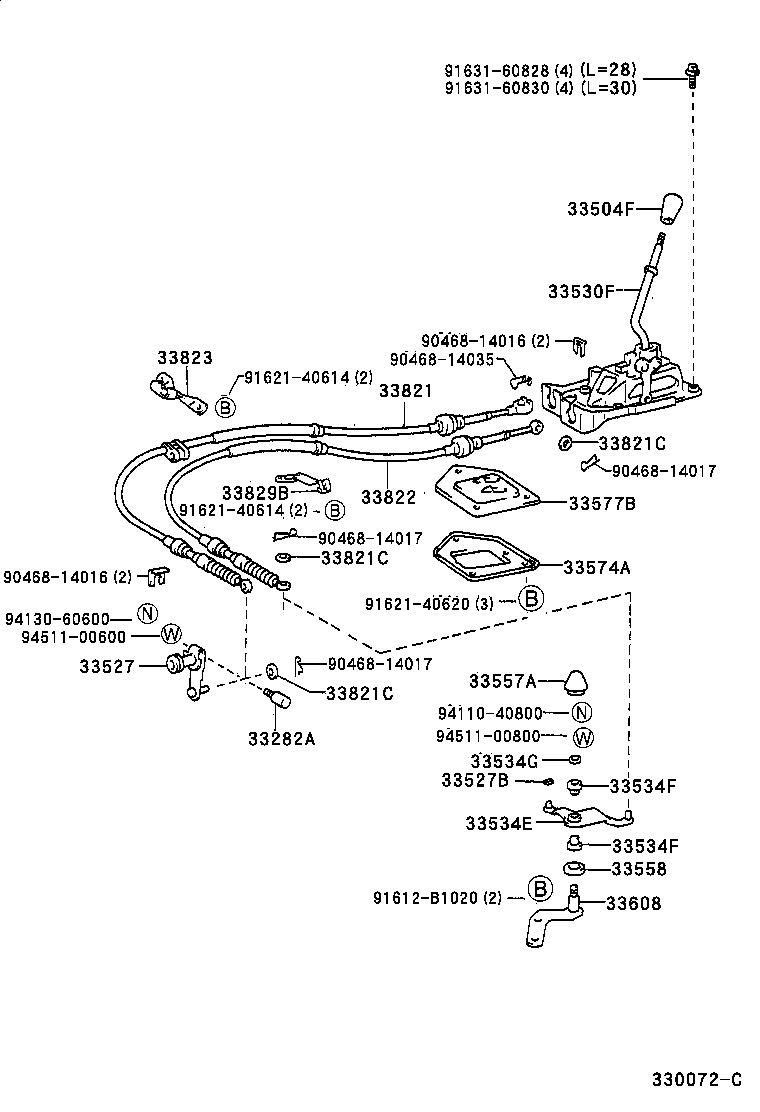

(9608- )CT210,211..5F
S51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180C0 |
AT211,212,CT21#,ST215..5F BLACK,TRIM1#,4# |
1 | ||
| 33504-12180C0 |
AT211,212,CT211,ST215..5F BLACK,TRIM12,13 |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
CT210,211,215,ST215..5F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-20720 |
AT21#,CT210..5F |
1 | ||
| 33530-20721 |
ST215..5F..TI;AT21#,CT210,211..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-16051 |
AT21#..5F |
1 | ||
| 33534-10060 |
AT211,212..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT211,212,CT211,ST215..5F |
2 | ||
| 90386-12022 |
AT21#,CT210,211,215,ST215..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT211,212,CT211,ST215..5F |
2 | ||
| 90386-12022 |
AT21#,CT210,211,215,ST215..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AT211,212,CT211,ST215..5F |
1 | ||
| 90201-08028 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AT211,212,CT211,ST215..5F |
1 | ||
| 33557-32010 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
AT211,212..5F |
1 | ||
| 33558-10030 |
ST215..5F..SI;AT21#,CT215..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-20380 |
AT21#,CT21#,ST215 |
1 | ||
| 33577B - COVER, CONTROL SHAFT HOLE | ||||
| 33577-20010 |
AT21#,CT210,211,215,ST215..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-16021 |
AT21#..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-2B310 |
AT211,212..5F |
1 | ||
| 33821-2B380 |
AT21#..5F |
1 | ||
| 33821-2B330 |
CT210,211..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
AT21#,CT210,211,215,ST215..MTM ｼﾌﾄﾚﾊﾞｰ側 |
1 | ||
| 90201-08077 |
AT21#,CT210,211,215,ST215..MTM 外径=30,ﾄﾗﾝｽｱｸｽﾙ側 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
AT21#,CT210,211,215,ST215..MTM ｼﾌﾄﾚﾊﾞｰ側 |
1 | ||
| 90201-08077 |
AT21#,CT210,211,215,ST215..MTM 外径=30,ﾄﾗﾝｽｱｸｽﾙ側 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
AT21#,CT210,211,215,ST215..MTM ｼﾌﾄﾚﾊﾞｰ側 |
1 | ||
| 90201-08077 |
AT21#,CT210,211,215,ST215..MTM 外径=30,ﾄﾗﾝｽｱｸｽﾙ側 |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-20630 |
CT210,211..5F |
1 | ||
| 33822-20610 |
AT211,212..5F |
1 | ||
| 33822-20680 |
AT21#..5F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-20190 |
AT21#,CT210,211..MTM |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-20060 |
ST215..5F..SI;AT21#,CT210,211,215..MTM |
1 | ||
| Common parts | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14035 | ||||
| 91612-B1020 | ||||
| 91621-40614 | ||||
| 91621-40620 | ||||
| 91631-60828 | ||||
| 91631-60830 | ||||
| 94110-40800 | ||||
| 94130-60600 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
