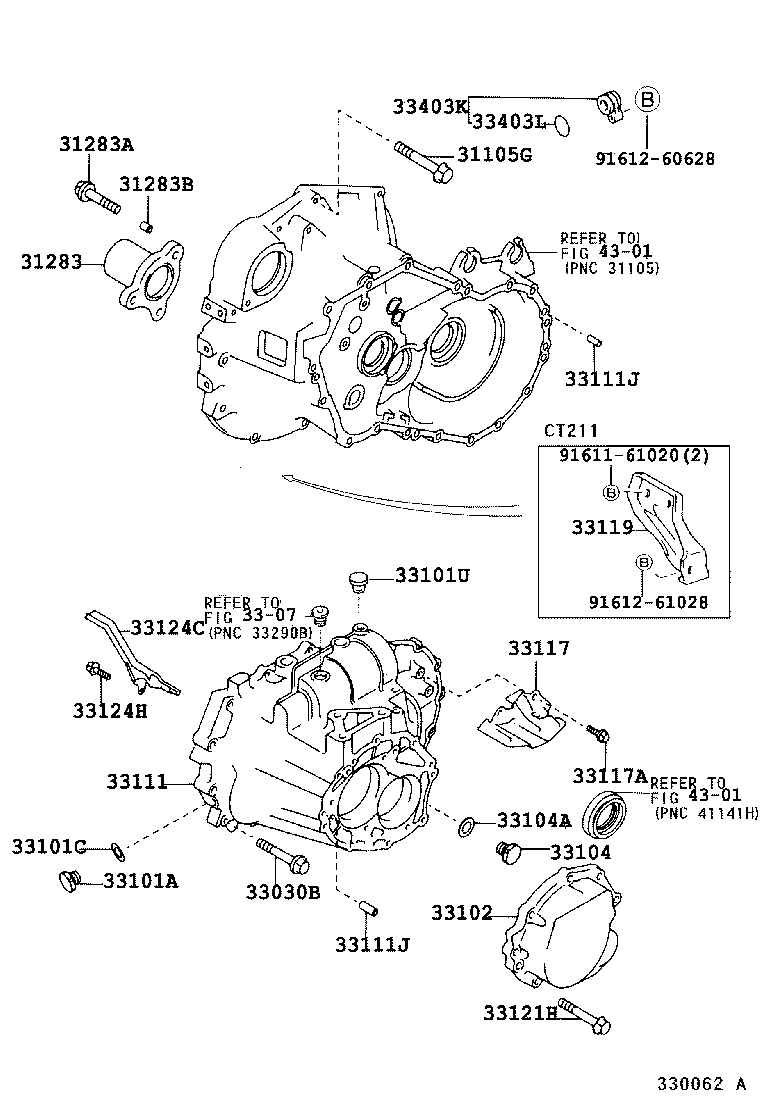

AT211-CEMEK (1996)
Toyota Carina Ff
(9608- )CT210,211..5F
S51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12042 |
AT21#..MTM *12−1.25PX75−30 |
1 | ||
| 90105-10077 |
AT21#,CT210,211,215,ST215..MTM *10−1.25PX43−26 |
1 | ||
| 90119-12168 |
AT21#..MTM *12−1.25PX55−30 |
2 | ||
| 90105-08040 |
CT210,211,215,ST215..5F *8−1.25PX18−15 |
1 | ||
| 90119-12168 |
CT210,211,215,ST215..5F *12−1.25PX55−30 |
3 | ||
| 31283 - RETAINER, CLUTCH RELEASE BEARING HUB | ||||
| 31283-32010 |
CT210,211..5F |
1 | ||
| 31283A - BOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER) | ||||
| 90105-06023 |
CT210,211..5F |
3 | ||
| 31283B - PIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER) | ||||
| 90253-08002 |
CT210,211..5F |
2 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08064 |
AT21#..5F *8−1.25PX51−28 |
13 | ||
| 90105-08086 |
AT21#..5F *8−1.25PX45−27.5 |
3 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
AT21#,CT210,211..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03133 |
ST215..5F..TI;AT21#,CT210,211..5F |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12021 |
AT21#..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-16061 |
AT21#..5F |
1 | ||
| 33111-16062 |
AT21#..5F |
1 | ||
| 33111-16063 |
AT211,212..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST215..5F..SI;AT21#,CT215..MTM 長さ=23,外径=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST215..5F..SI;AT21#,CT215..MTM 長さ=23,外径=8 |
4 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-32011 |
CT210,211..5F |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
ST215..5F..SI;CT210,211,215..5F |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 91611-60835 |
AT21#..MTM |
9 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-12012 |
AT21#..5F |
1 | ||
| 33124-20050 |
AT211,212..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-G0820 |
AT21#..MTM |
1 | ||
| 33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-35230 |
AT210..6F;AT211,212..5F |
1 | ||
| 33403L - RING, O | ||||
| 96711-24030 |
AT210..6F;ST215..5F..SI;AT211,212,CT215..5F |
1 | ||
| Common parts | ||||
| 91611-61020 | ||||
| 91612-60628 | ||||
| 91612-61028 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 4301 | ||||

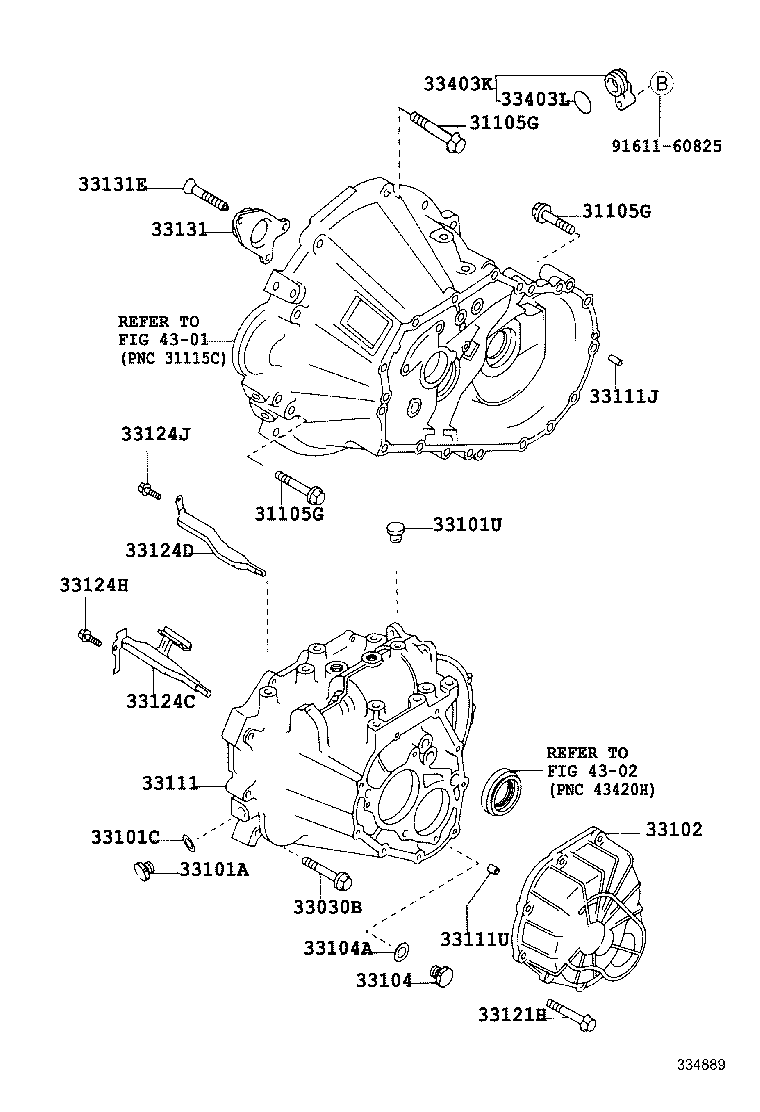

(9608- )AT21#..5F
C51,C56,C57
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12042 |
AT21#..MTM *12−1.25PX75−30 |
1 | ||
| 90105-10077 |
AT21#,CT210,211,215,ST215..MTM *10−1.25PX43−26 |
1 | ||
| 90119-12168 |
AT21#..MTM *12−1.25PX55−30 |
2 | ||
| 90105-08040 |
CT210,211,215,ST215..5F *8−1.25PX18−15 |
1 | ||
| 90119-12168 |
CT210,211,215,ST215..5F *12−1.25PX55−30 |
3 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12042 |
AT21#..MTM *12−1.25PX75−30 |
1 | ||
| 90105-10077 |
AT21#,CT210,211,215,ST215..MTM *10−1.25PX43−26 |
1 | ||
| 90119-12168 |
AT21#..MTM *12−1.25PX55−30 |
2 | ||
| 90105-08040 |
CT210,211,215,ST215..5F *8−1.25PX18−15 |
1 | ||
| 90119-12168 |
CT210,211,215,ST215..5F *12−1.25PX55−30 |
3 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12042 |
AT21#..MTM *12−1.25PX75−30 |
1 | ||
| 90105-10077 |
AT21#,CT210,211,215,ST215..MTM *10−1.25PX43−26 |
1 | ||
| 90119-12168 |
AT21#..MTM *12−1.25PX55−30 |
2 | ||
| 90105-08040 |
CT210,211,215,ST215..5F *8−1.25PX18−15 |
1 | ||
| 90119-12168 |
CT210,211,215,ST215..5F *12−1.25PX55−30 |
3 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08064 |
AT21#..5F *8−1.25PX51−28 |
13 | ||
| 90105-08086 |
AT21#..5F *8−1.25PX45−27.5 |
3 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
AT21#,CT210,211..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03133 |
ST215..5F..TI;AT21#,CT210,211..5F |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12021 |
AT21#..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-16061 |
AT21#..5F |
1 | ||
| 33111-16062 |
AT21#..5F |
1 | ||
| 33111-16063 |
AT211,212..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST215..5F..SI;AT21#,CT215..MTM 長さ=23,外径=8 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
AT21#..MTM 長さ=11,外径=11 |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 91611-60835 |
AT21#..MTM |
9 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-12012 |
AT21#..5F |
1 | ||
| 33124-20050 |
AT211,212..5F |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12021 |
AT21#..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-G0820 |
AT21#..MTM |
1 | ||
| 33124J - BOLT, W/WASHER | ||||
| 91611-G0820 |
AT21#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-12080 |
AT21#..MTM |
1 | ||
| 33131E - SCREW(FOR BEARING RETAINER FRONT) | ||||
| 90149-60028 |
AT21#..MTM |
3 | ||
| 33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-35230 |
AT210..6F;AT211,212..5F |
1 | ||
| 33403L - RING, O | ||||
| 96711-24030 |
AT210..6F;ST215..5F..SI;AT211,212,CT215..5F |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||
