AT211-CEMEK (1996)
Toyota Carina Ff

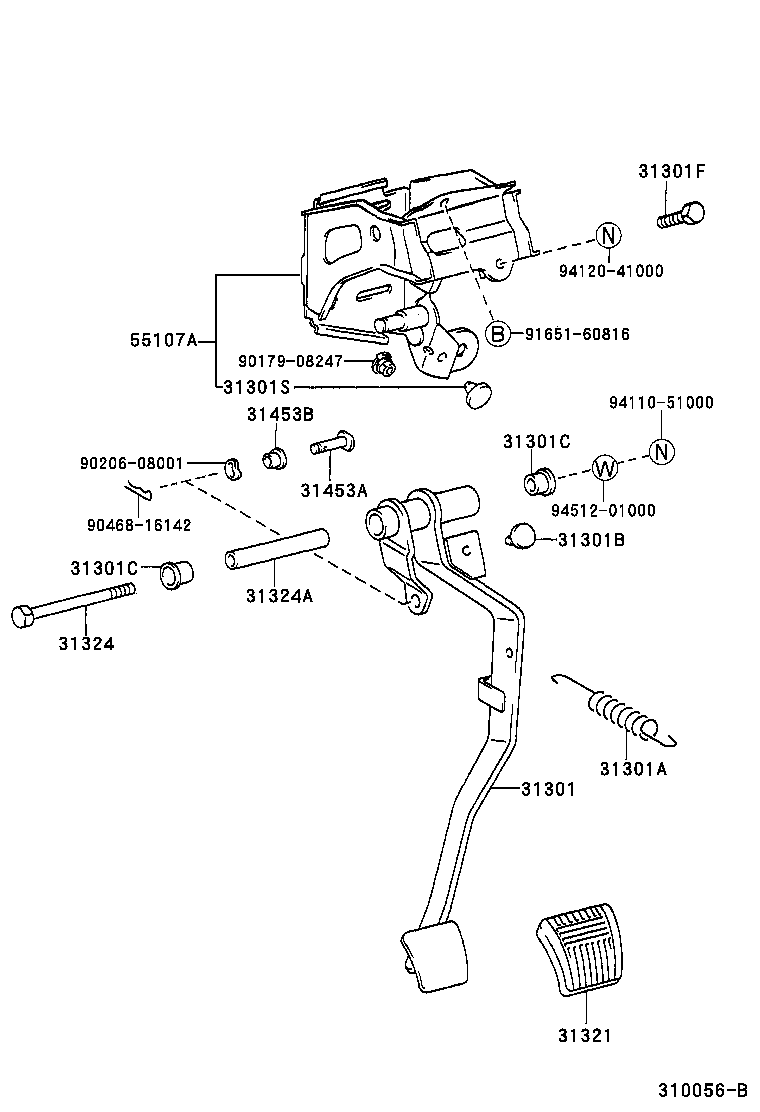

ILLUST NO. 1 OF 2(9608- )AT21#,ST215..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-20460 |
AT21#,ST215..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-07011 |
AT21#,ST215..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AT21#,CT210,211,215,ST215..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AT21#,CT210,211,215,ST215..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31301S - CUSHION, NO.2(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10100 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10002 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AT21#,CT210,211,215,ST215..MTM 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-20360 |
AT21#,ST215..5F |
1 | ||
| 55107-21030 |
AT21#,ST215..MTM |
1 | ||
| Common parts | ||||
| 90179-08247 | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91651-60816 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
ILLUST NO. 1 OF 2(9608- )CT210,211,215..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-20460 |
AT21#,ST215..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AT21#,CT210,211,215,ST215..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AT21#,CT210,211,215,ST215..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31301S - CUSHION, NO.2(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10100 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10002 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31354 - SEAT, CLUTCH PEDAL SPRING, UPPER | ||||
| 31354-20030 |
CT210,211,215..5F |
1 | ||
| 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90386-10019 |
CT210,211,215..5F |
1 | ||
| 31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90249-10127 |
CT210,211,215..5F |
1 | ||
| 31355 - SEAT, CLUTCH PEDAL SPRING, LOWER | ||||
| 31355-20030 |
CT210,211,215..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AT21#,CT210,211,215,ST215..MTM 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-20360 |
AT21#,ST215..5F |
1 | ||
| 55107-21030 |
AT21#,ST215..MTM |
1 | ||
| Common parts | ||||
| 90179-08247 | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91651-60816 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 96160-00800 | ||||

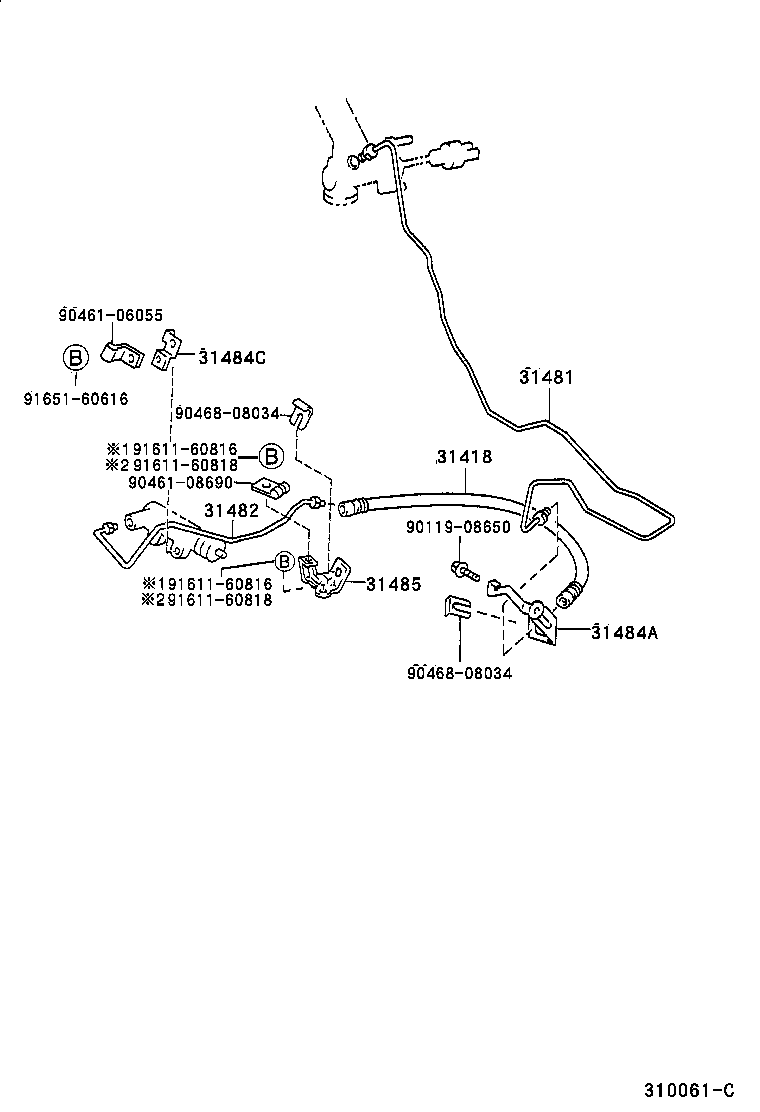

ILLUST NO. 2 OF 2(9608- )CT210,211..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01116 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-20760 |
ST215..5F..SI;AT21#,CT210,211,215..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-20481 |
AT21#..MTM |
1 | ||
| 31482-20490 |
CT210,211..5F |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-20540 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-12110 |
AT21#..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-20532 |
AT21#..5F |
1 | ||
| 31484-20533 |
AT21#..MTM |
1 | ||
| 31484-20511 |
CT210,211,ST215..5F |
1 | ||
| Common parts | ||||
| 90119-08650 | ||||
| 90461-06055 | ||||
| 90468-08034 | ||||
| 91611-60816 | ||||
| 91651-60616 | ||||
ILLUST NO. 2 OF 2(9608- )AT21#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01116 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-20760 |
ST215..5F..SI;AT21#,CT210,211,215..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-20481 |
AT21#..MTM |
1 | ||
| 31482-20490 |
CT210,211..5F |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-20540 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-12110 |
AT21#..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-20532 |
AT21#..5F |
1 | ||
| 31484-20533 |
AT21#..MTM |
1 | ||
| 31484-20511 |
CT210,211,ST215..5F |
1 | ||
| Common parts | ||||
| 90119-08650 | ||||
| 90461-06055 | ||||
| 90461-08690 | ||||
| 90468-08034 | ||||
| 91611-60816 | ||||
| 91611-60818 | ||||
| 91651-60616 | ||||
