AT211-CEMEK (1996)
Toyota Carina Ff
Production
Aug 1996
-
Dec 2001
Engine
7AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )MTM

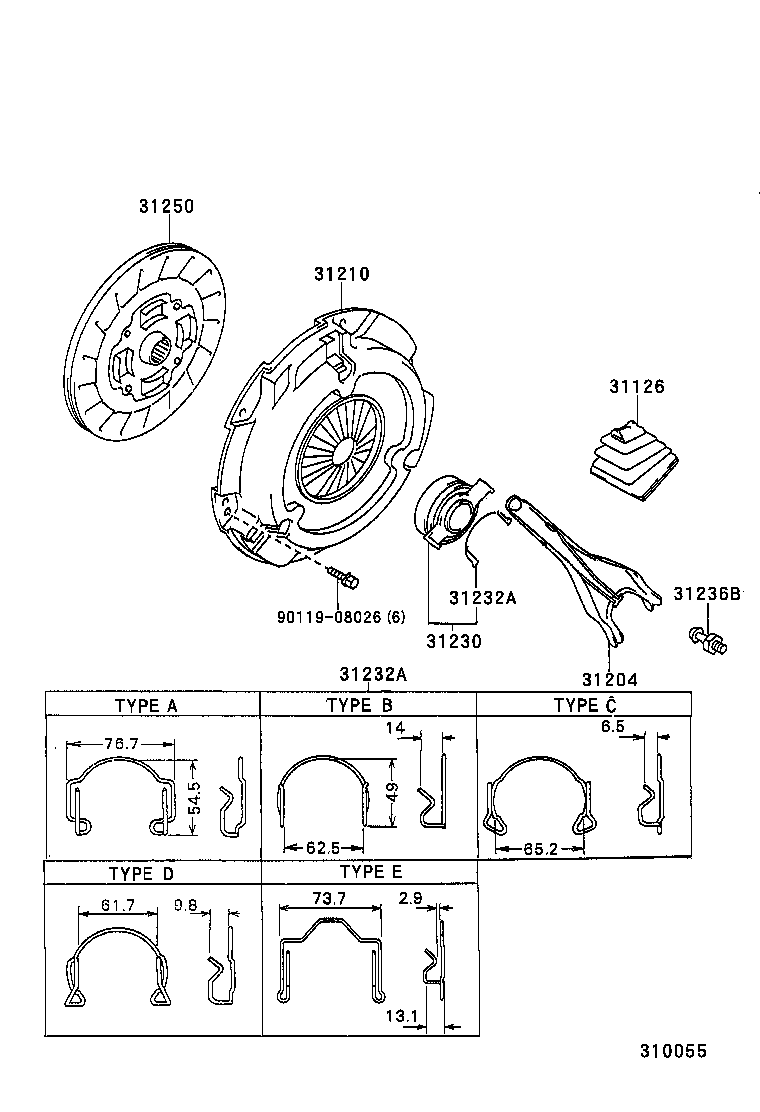

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-32010 |
CT210,211,215,ST215..5F |
1 | ||
| 31126-12051 |
AT21#..MTM |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-17010 |
AT21#..MTM |
1 | ||
| 31204-20100 |
CT210,211,215,ST215..5F |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-12201 |
AT211..5F |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-12171 |
AT21#..MTM |
1 | ||
| 31230-12170 |
AT21#..MTM |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-20020 |
CT210,211,215,ST215..5F TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 31232-12060 |
AT21#..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 31232-12070 |
AT21#..MTM TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 31232-12050 |
AT21#..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-20020 |
CT210,211,215,ST215..5F TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 31232-12060 |
AT21#..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 31232-12070 |
AT21#..MTM TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 31232-12050 |
AT21#..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-12020 |
AT21#..MTM |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-20280 |
AT211,212..5F |
1 | ||
| 31250-32100 |
CT210,211..5F |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
