AT210-CEPVF (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

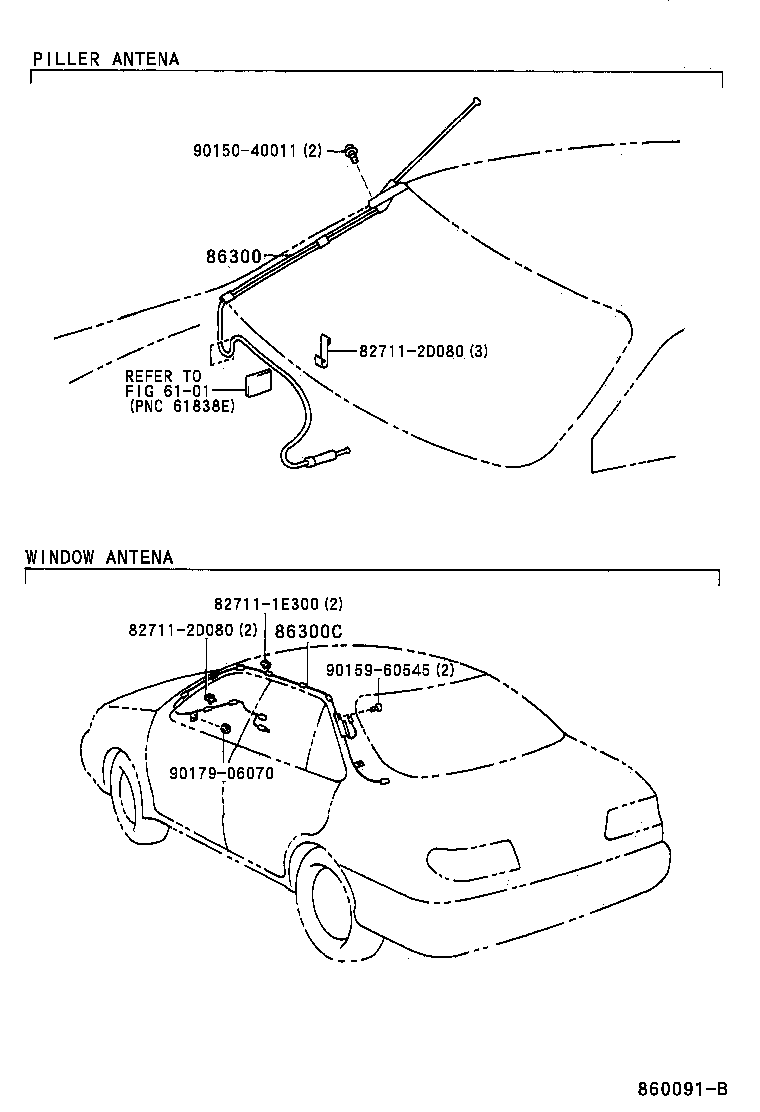

Click highlighted areas on diagram

diagram 6101 827111E300 827112D080 827112D080 86300 86300C 9015040011 9015960545 9017906070
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-2B270

AT210,212,CT21#

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-2B340

AT210,211,ST215

 1
86300-2B300

AT21#,CT210,ST215

 1
Common parts
82711-1E300
82711-2D080
90150-40011
90159-60545
90179-06070
Linked diagrams
6101
