AT210-CEPVF (1996)
Toyota Carina Ff

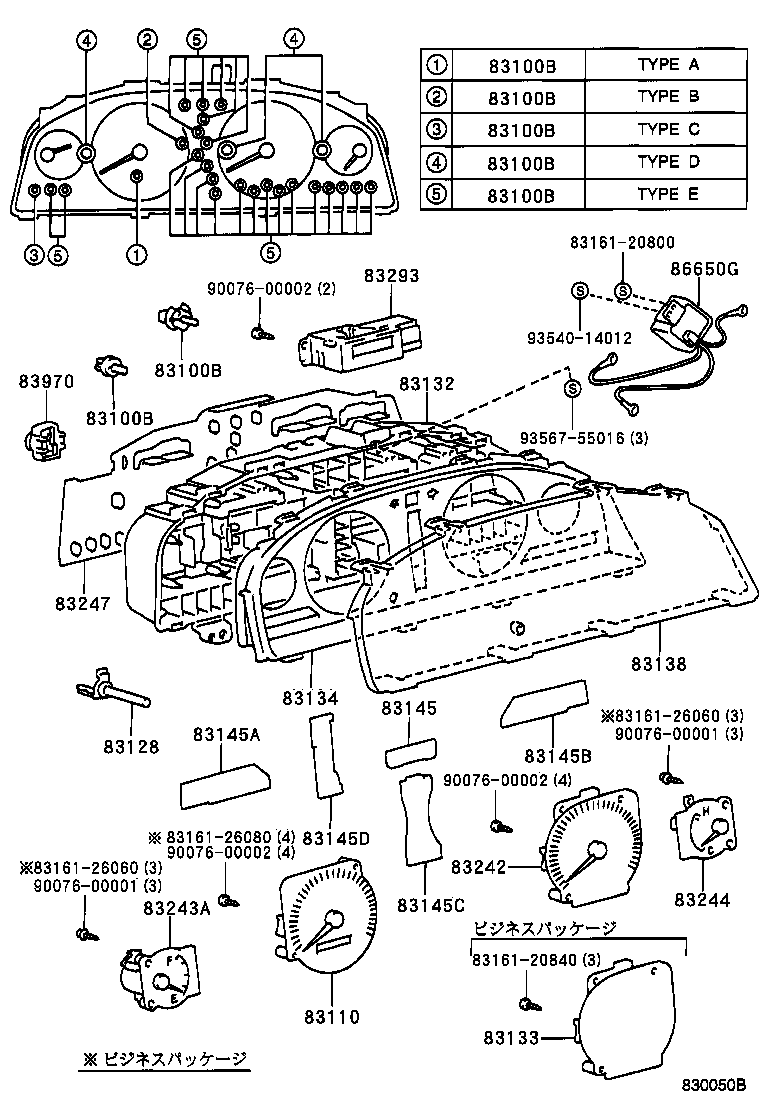

ILLUST NO. 1 OF 3(9608-9808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06013 |
AT210 14V 0.56W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06014 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT210,CT211..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90010-06003 |
AT210,212,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06037 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06013 |
AT210 14V 0.56W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06014 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT210,CT211..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90010-06003 |
AT210,212,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06037 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06013 |
AT210 14V 0.56W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06014 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT210,CT211..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90010-06003 |
AT210,212,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06037 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06013 |
AT210 14V 0.56W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06014 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT210,CT211..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90010-06003 |
AT210,212,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06037 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06013 |
AT210 14V 0.56W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06014 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT210,CT211..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90010-06003 |
AT210,212,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06037 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06013 |
AT210 14V 0.56W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06014 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT210,CT211..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90010-06003 |
AT210,212,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06037 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06013 |
AT210 14V 0.56W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06014 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT210,CT211..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90010-06003 |
AT210,212,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06037 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-20240 |
AT210 |
1 | ||
| 83220-20020 |
AT210 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-44010 |
AT21#,CT21#,ST215 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-20390 |
AT21#,CT21#,ST215 |
1 | ||
| 83841-20410 |
AT21#,CT21#,ST215 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44010 |
AT21#,CT21#,ST215..4FC |
1 | ||
| 83821-44010 |
AT210..4FC |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-20130 |
AT21#,ST215 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83831-20170 |
AT210,ST215..4FC |
1 | ||
| 83831-20140 |
AT210..4FC |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83831-44010 |
AT21#,CT210,211,216,ST215..4FC |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83887-44010 |
AT21#,CT210,211,216,ST215..4FC |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-20800 |
AT210 |
1 | ||
| 83881-20470 |
AT210 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-20470 |
AT210 |
1 | ||
| 83882-20800 |
AT210 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-20470 |
AT210 |
1 | ||
| 83883-20800 |
AT210 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-20481 |
AT210..4FC |
1 | ||
| 83861-20420 |
AT21#,CT210..4FC |
1 | ||
| 83861-20810 |
AT210..4FC |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-20030 |
AT210 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
ST215..4FC..SI;AT21#,CT210..4FC |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-33020 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 83161-20800 | ||||
| 83161-20840 | ||||
| 83161-26060 | ||||
| 83161-26080 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 93540-14012 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 3(9608-9808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
AT210 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
AT21#,CT21#,ST215 |
1 | ||
| 83910-20740 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 96711-24030 | ||||

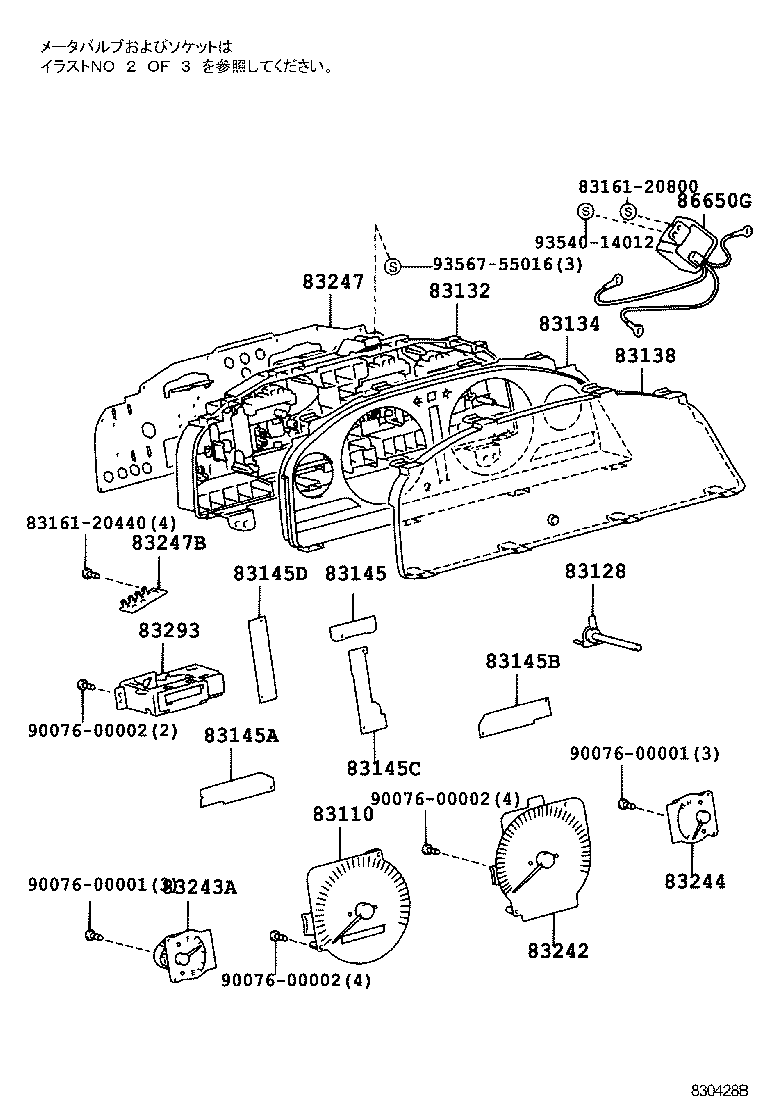

ILLUST NO. 1 OF 3(9808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-20240 |
AT210 |
1 | ||
| 83220-20020 |
AT210 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-44010 |
AT21#,CT21#,ST215 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-20390 |
AT21#,CT21#,ST215 |
1 | ||
| 83841-20410 |
AT21#,CT21#,ST215 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44010 |
AT21#,CT21#,ST215..4FC |
1 | ||
| 83821-44010 |
AT210..4FC |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-20130 |
AT21#,ST215 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83831-20170 |
AT210,ST215..4FC |
1 | ||
| 83831-20140 |
AT210..4FC |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83831-44010 |
AT21#,CT210,211,216,ST215..4FC |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83887-44010 |
AT21#,CT210,211,216,ST215..4FC |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-20800 |
AT210 |
1 | ||
| 83881-20470 |
AT210 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-20470 |
AT210 |
1 | ||
| 83882-20800 |
AT210 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-20470 |
AT210 |
1 | ||
| 83883-20800 |
AT210 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-20481 |
AT210..4FC |
1 | ||
| 83861-20420 |
AT21#,CT210..4FC |
1 | ||
| 83861-20810 |
AT210..4FC |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-20030 |
AT210 |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-33020 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 83161-20440 | ||||
| 83161-20800 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 93540-14012 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 3(9808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
AT21#,CT21#,ST215 |
1 | ||
| 83910-20740 |
AT21#,CT21#,ST215 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
AT21#,CT21#,ST215 |
1 | ||
| 83910-20740 |
AT21#,CT21#,ST215 |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90072-02005 |
AT21#,CT21#,ST215 14V 1.12W |
1 | ||
| Common parts | ||||
| 93567-55014 | ||||
ILLUST NO. 2 OF 3(9808- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06013 |
AT210 14V 0.56W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06014 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT210,CT211..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90010-06003 |
AT210,212,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06037 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06013 |
AT210 14V 0.56W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06014 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT210,CT211..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90010-06003 |
AT210,212,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06037 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06013 |
AT210 14V 0.56W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06014 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT210,CT211..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90010-06003 |
AT210,212,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06037 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06013 |
AT210 14V 0.56W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06014 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT210,CT211..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90010-06003 |
AT210,212,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06018 |
AT210 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06037 |
AT210 14V 3.0W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
