AT210-CEPVF (1996)
Toyota Carina Ff

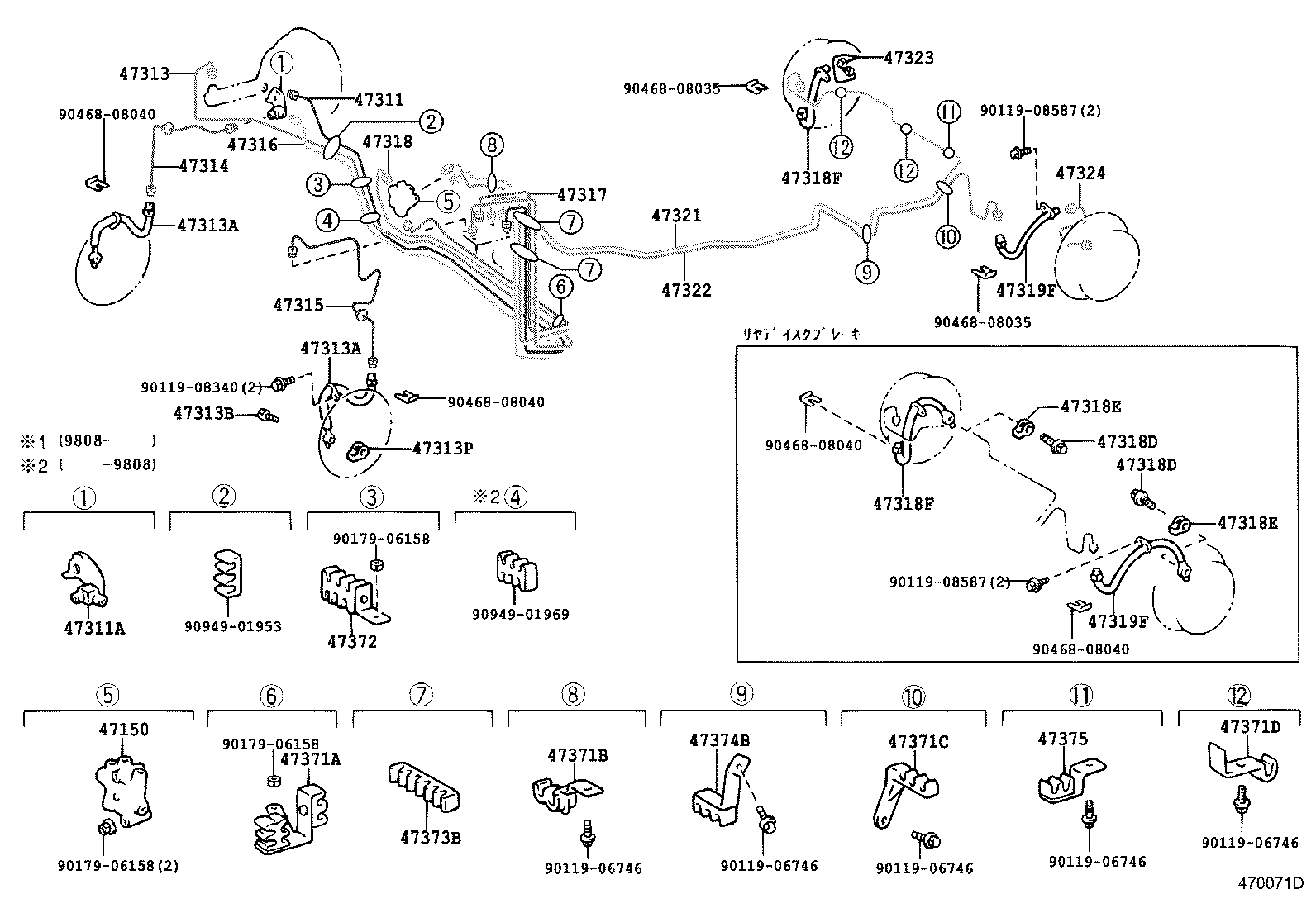

ILLUST NO. 1 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-46010 |
AT210 |
1 | ||
| 47150-32100 |
AT210 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-2B200 |
AT210,ST215 |
1 | ||
| 47311-21030 |
AT210,ST215 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10201 |
AT210,ST215 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20810 |
AT210,ST215 |
1 | ||
| 47313-21040 |
AT210,ST215 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02995 |
AT210 右側 |
1 | ||
| 90947-02821 |
AT21#,CT21#,ST215 右側 |
1 | ||
| 90947-02996 |
AT210 左側 |
1 | ||
| 90947-02820 |
AT21#,CT21#,ST215 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02995 |
AT210 右側 |
1 | ||
| 90947-02821 |
AT21#,CT21#,ST215 右側 |
1 | ||
| 90947-02996 |
AT210 左側 |
1 | ||
| 90947-02820 |
AT21#,CT21#,ST215 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AT21#,CT21#,ST215 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT21#,CT21#,ST215 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20520 |
AT210,ST215 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20700 |
AT21#,CT21#,ST215 |
1 | ||
| 47315-21020 |
AT21#,CT21#,ST215 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20610 |
AT210,ST215 |
1 | ||
| 47316-21280 |
AT210,ST215 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-21010 |
AT21#,CT21#,ST215 |
1 | ||
| 47317-20250 |
AT21#,CT21#,ST215 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-21060 |
AT21#,CT21#,ST215 |
1 | ||
| 47318-20380 |
AT21#,CT21#,ST215 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AT210 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AT210 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT210 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT210 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02896 |
AT210 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02896 |
AT210 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02897 |
AT210 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02897 |
AT210 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20420 |
AT21#,CT210,211 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20520 |
AT21#,CT21#,ST215 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20660 |
AT21#,CT21#,ST215 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-20680 |
AT21#,CT21#,ST215 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-20700 |
AT21#,CT21#,ST215 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-20690 |
AT21#,CT21#,ST215 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-21020 |
AT21#,CT21#,ST215 |
1 | ||
| 47371-20670 |
AT21#,CT21#,ST215 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01B10 |
AT21#,CT21#,ST215 |
1 | ||
| 90949-01B10 |
AT21#,CT21#,ST215 |
2 | ||
| 90949-01856 |
AT21#,CT21#,ST215 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-20291 |
AT21#,CT21#,ST215 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20500 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 90119-06746 | ||||
| 90119-08340 | ||||
| 90119-08587 | ||||
| 90179-06158 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90949-01953 | ||||
| 90949-01969 | ||||
ILLUST NO. 2 OF 2(9608-9808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-20010 |
AT21#,CT21#,ST215 |
1 | ||
| 44050-21010 |
AT21#,CT211 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
AT21#,CT21#,ST215 |
3 | ||
| 44545-35080 |
AT210,211,CT21#,ST215 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
AT21#,CT21#,ST215 |
3 | ||
| 44545-35080 |
AT210,211,CT21#,ST215 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
AT21#,CT21#,ST215 |
3 | ||
| 44545-35080 |
AT210,211,CT21#,ST215 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35080 |
AT21#,CT21#,ST215 |
3 | ||
| 44546-35080 |
AT210,211,CT21#,ST215 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35080 |
AT21#,CT21#,ST215 |
3 | ||
| 44546-35080 |
AT210,211,CT21#,ST215 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35080 |
AT21#,CT21#,ST215 |
3 | ||
| 44546-35080 |
AT210,211,CT21#,ST215 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-21010 |
AT21#,CT21#,ST215 |
1 | ||
| 44591-20090 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 91633-60820 | ||||

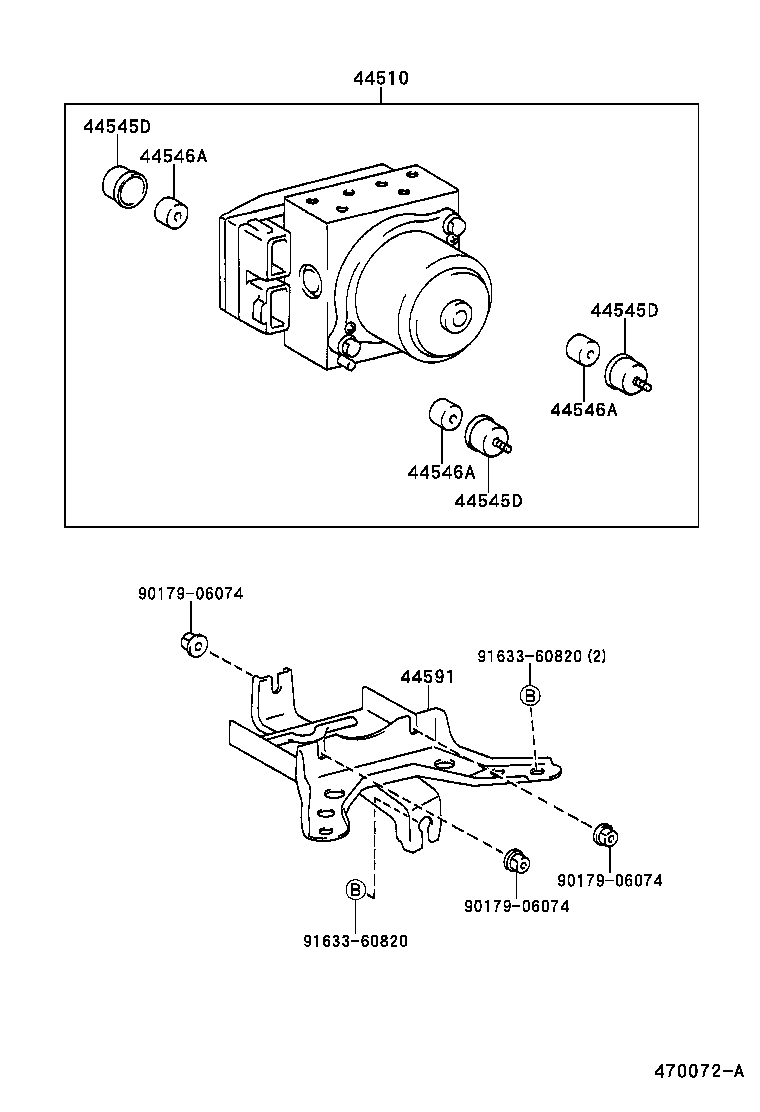

ILLUST NO. 2 OF 2(9808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-20010 |
AT21#,CT21#,ST215 |
1 | ||
| 44050-21010 |
AT21#,CT211 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
AT21#,CT21#,ST215 |
3 | ||
| 44545-35080 |
AT210,211,CT21#,ST215 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
AT21#,CT21#,ST215 |
3 | ||
| 44545-35080 |
AT210,211,CT21#,ST215 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
AT21#,CT21#,ST215 |
3 | ||
| 44545-35080 |
AT210,211,CT21#,ST215 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35080 |
AT21#,CT21#,ST215 |
3 | ||
| 44546-35080 |
AT210,211,CT21#,ST215 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35080 |
AT21#,CT21#,ST215 |
3 | ||
| 44546-35080 |
AT210,211,CT21#,ST215 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35080 |
AT21#,CT21#,ST215 |
3 | ||
| 44546-35080 |
AT210,211,CT21#,ST215 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-21010 |
AT21#,CT21#,ST215 |
1 | ||
| 44591-20090 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 90029-02600 | ||||
| 90029-46400 | ||||
| 90179-06074 | ||||
| 91633-60820 | ||||
| 93219-15008 | ||||
| Linked diagrams | ||||
| 8414 | ||||
