AT210-CEPVF (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )AT210,211..4FC

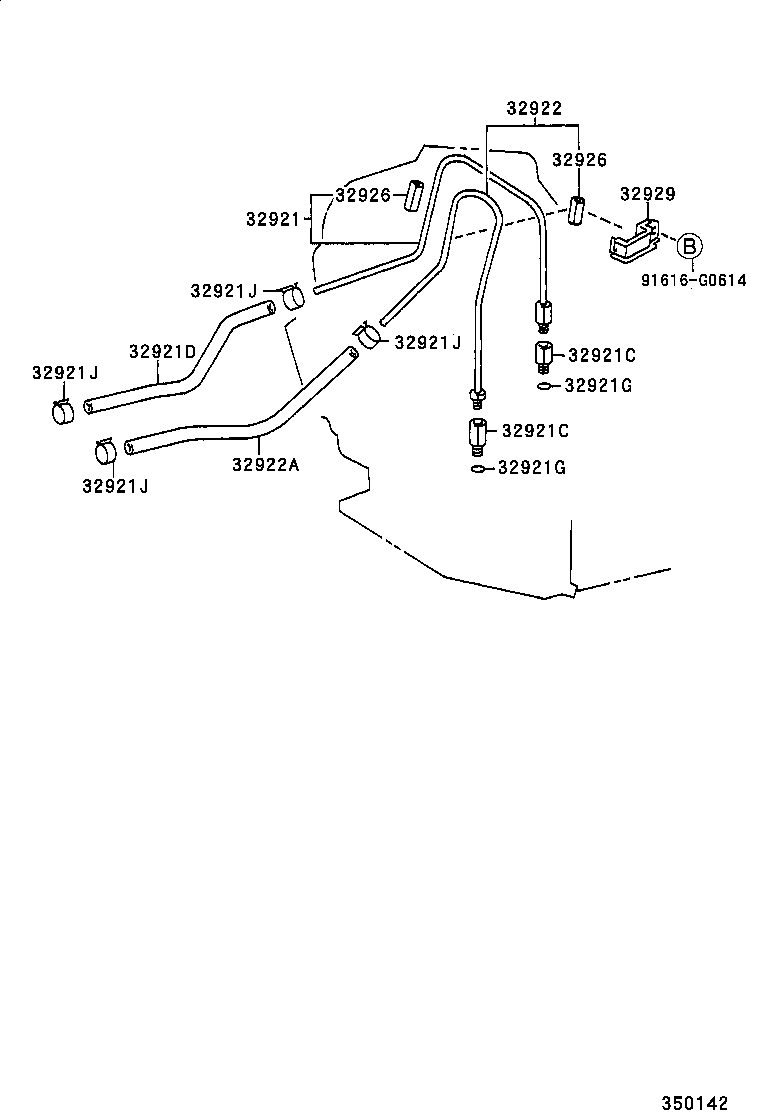

Click highlighted areas on diagram

A245E,A246E

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32926 32926 32929 91616G0614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-20470

AT210,211..4FC

 1
32921-20410

AT210,211..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

AT210,211..4FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

AT210,211..4FC

 2
32921D - HOSE(FOR OIL COOLER INLET)
90445-17117

AT210,211..4FC

 1
90445-17124

AT210,211..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

AT210,211..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

AT210,211..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT210,211,ST215..4FC..(GT,SI)

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT210,211,ST215..4FC..(GT,SI)

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT210,211,ST215..4FC..(GT,SI)

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT210,211,ST215..4FC..(GT,SI)

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-20420

AT210,211..4FC

 1
32922-20500

AT210,211..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17117

AT210,211..4FC

 1
90445-17124

AT210,211..4FC

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

AT210,211..4FC

長さ=35,内径=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

AT210,211..4FC

長さ=35,内径=10

 2
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-22050

AT210,211..4FC

 1
32924-20080

AT210,211..4FC

 2
Common parts
91616-G0614
