AT210-CEPVF (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )AT210..4FC

Click highlighted areas on diagram

A246E

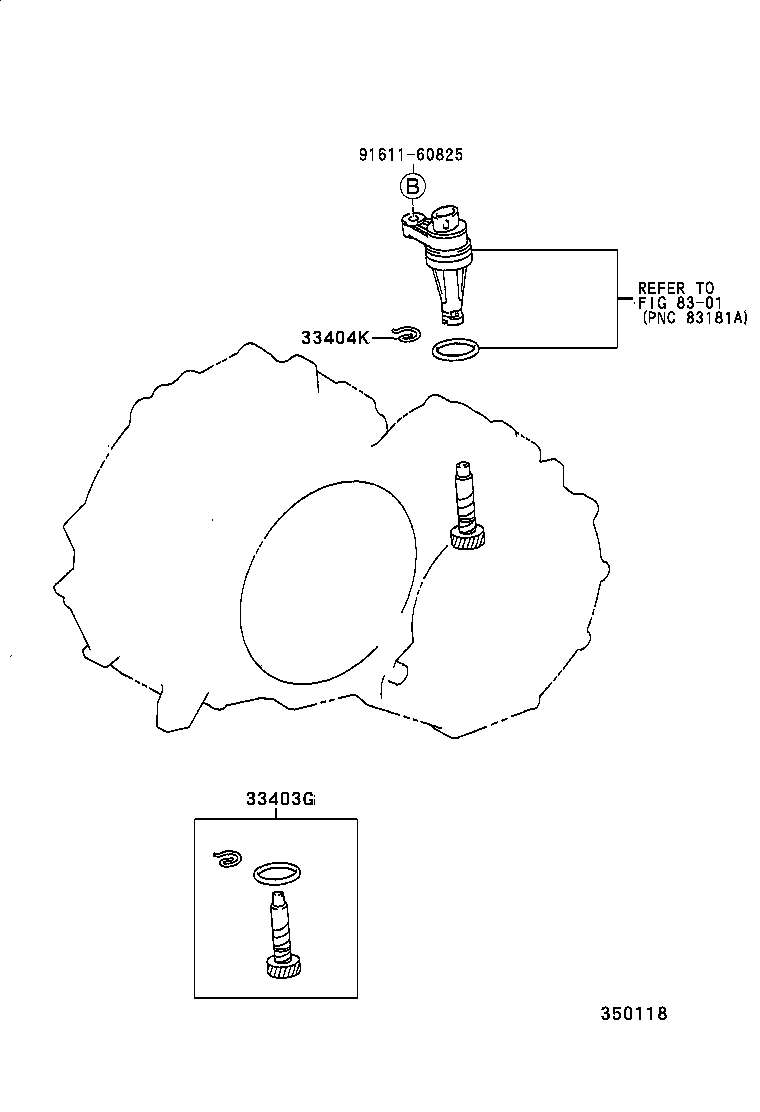

diagram 33403G 33404K 8301 9161160825
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-19455

AT210..4FC

歯数=30,ﾏｰｸ 30:35

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AT210..4FC

 1
Common parts
91611-60825
Linked diagrams
8301
