AT192-CEPNK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

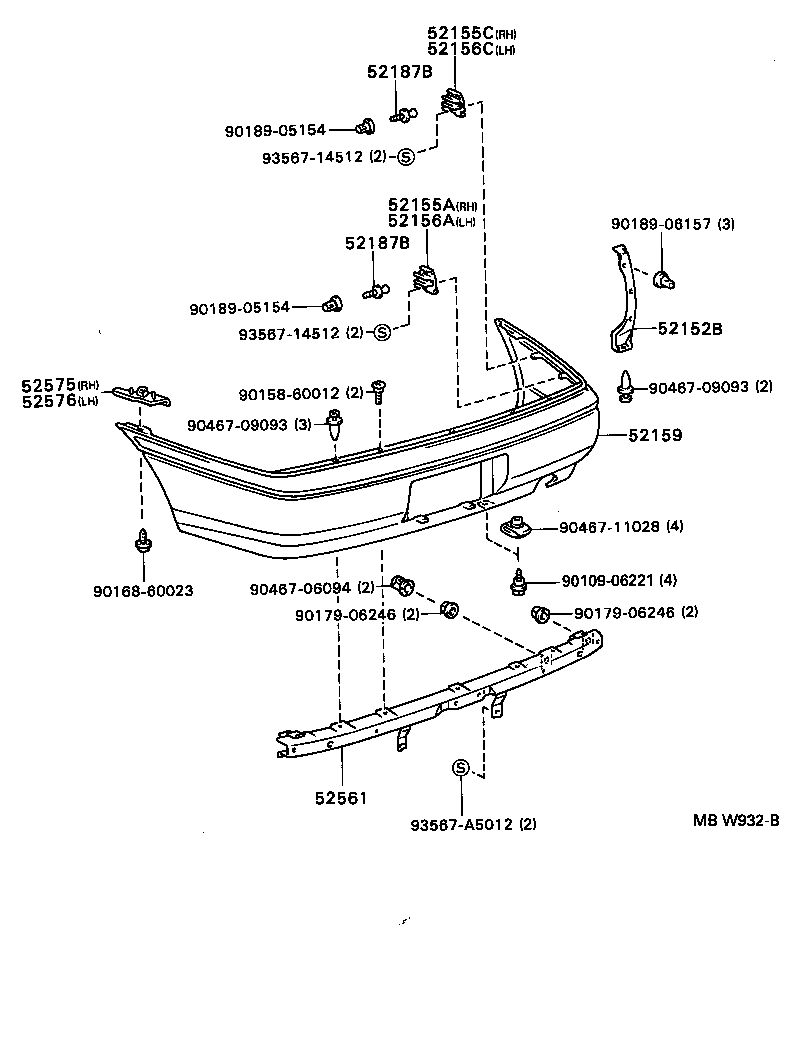

Click highlighted areas on diagram

diagram 52152B 52155A 52155C 52156A 52156C 52159 52187B 52187B 52561 52575 52576 9010906221 9015860012 9016860023 9017906246 9017906246 9018905154 9018905154 9018906157 9046706094 9046709093 9046709093 9046711028 9356714512 9356714512 93567A5012
Part # Description Qty Price
52152B - EXTENSION, REAR BUMPER, RH
52152-20190

AT19#,CT19#,ST19#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-20290

AT19#,CT19#,ST19#

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-20300

AT19#,CT19#,ST19#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-20290

AT19#,CT19#,ST19#

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52155-20300

AT19#,CT19#,ST19#

 1
52159 - COVER, REAR BUMPER
52159-20720H0

AT19#,CT19#,ST19#

MEDIUM TORQUOISE ME,749

 1
52159-20720D1

AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI

LIGHT BEIGE ME,3K9

 1
52159-20720B0

AT19#,CT19#,ST19#

DARK BLUEISH GRAY ME,183

 1
52159-20720A0

AT19#,CT19#,ST19#

SUPER WHITE 2,040

 1
52159-20720J0

AT19#,CT19#,ST195

DK.BLUE MM,8G5

 1
52159-20720C0

AT19#,CT19#,ST195

BLACK ME,205

 1
52159-20720D0

AT19#,CT19#,ST19#

WINE RED MICA,3J8

 1
52159-20720G1

AT19#,CT190..SG,SGI,SX,SXI

DK GREEN MICA,6M1

 1
52159-20720G0

AT19#,CT19#,ST19#

DK.MOSS GREEN MICA M,6M4

 1
52159-20720F0

AT19#,CT19#,ST19#

PALE YELLOW OPAL,574

 1
52187B - GUIDE, REAR BUMPER LOCATION
52187-12140

AT19#,CT19#,ST19#

 4
52187B - GUIDE, REAR BUMPER LOCATION
52187-12140

AT19#,CT19#,ST19#

 4
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52508-20020

AT19#,CT19#,ST19#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-20040

AT19#,CT19#,ST19#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-20040

AT19#,CT19#,ST19#

 1
Common parts
90109-06221
90158-60012
90168-60023
90179-06246
90189-05154
90189-06157
90467-06094
90467-09093
90467-11028
93567-14512
93567-A5012
