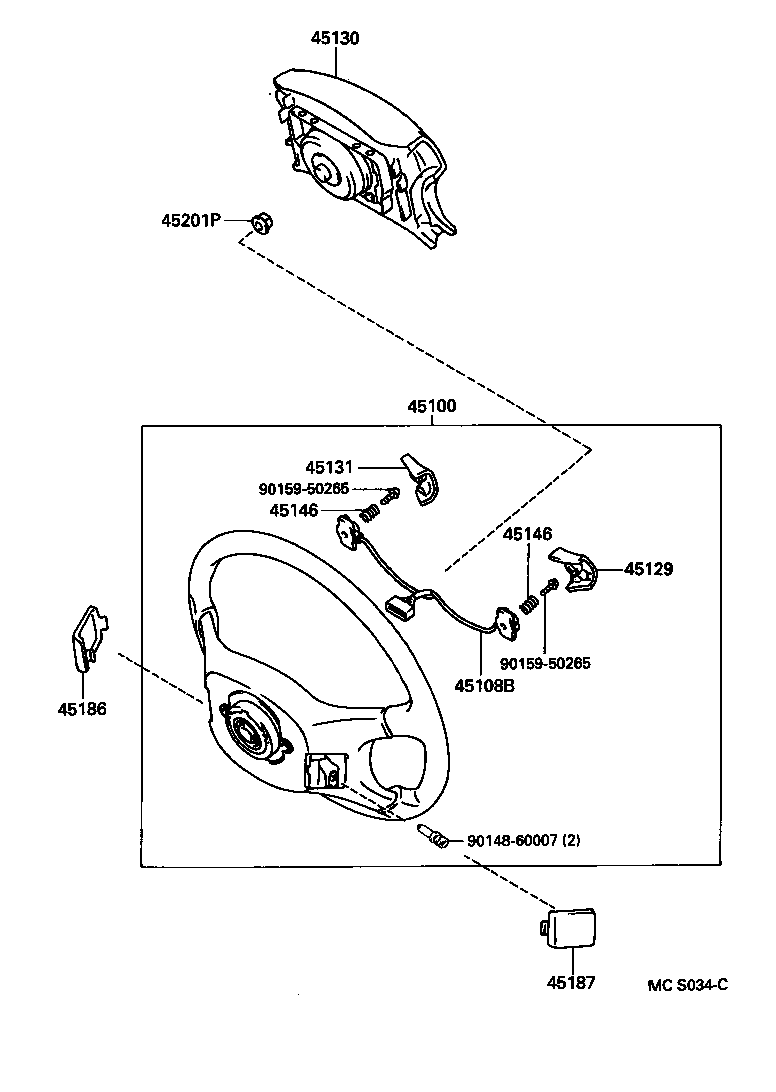

AT192-CEPNK (1992)
Toyota Carina Ff
(9208-9408)
SRS ｴｱﾊﾞﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B230C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45100-2B180C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45100-2B420C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45100-2B231C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45100-2B221C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45100-2B420E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45100-2B220C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45100-2B080C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,BLACK,TRIM1# |
1 | ||
| 45100-2B080E1 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ANTELOPE,TRIM4# |
1 | ||
| 45100-2B440C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45100-2B620C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,4-SPOKE,ｱﾘ(*80),BLACK,BLACK,TRIM1# |
1 | ||
| 45100-2B620E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,4-SPOKE,ｱﾘ(*80),ANTELOPE,ANTELOPE,TRIM4# |
1 | ||
| 45100-2B440E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-32020C0 |
AT19#,CT19#,ST195 BLACK,TRIM1# |
1 | ||
| 45129-33010C0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45129-32020E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B171C0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45130-2B170C0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45130-2B181C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45130-2B340C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B390E0 |
AT19#,CT19#,ST195 ｱﾘ(*80),ANTELOPE,ANTELOPE,TRIM4# |
1 | ||
| 45130-2B310E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45130-2B351C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B350E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45130-2B390C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,BLACK,TRIM1# |
1 | ||
| 45130-2B310C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI BLACK,TRIM1# |
1 | ||
| 45130-2B321C0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45130-2B351E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45130-2B350C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-33010C0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45131-32070C0 |
AT19#,CT19#,ST195 BLACK,TRIM1# |
1 | ||
| 45131-32070E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI |
2 | ||
| 45146-32070 |
AT19#,CT19#,ST195 |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI |
2 | ||
| 45146-32070 |
AT19#,CT19#,ST195 |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-32040E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45186-2002022 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45186-32040C0 |
AT19#,CT19#,ST195 BLACK,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20030C0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45187-32040E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45187-32040C0 |
AT19#,CT19#,ST195 BLACK,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT19#,CT19#,ST19# |
1 | ||
| 90179-12071 |
AT19#,CT19#,ST19# |
1 | ||

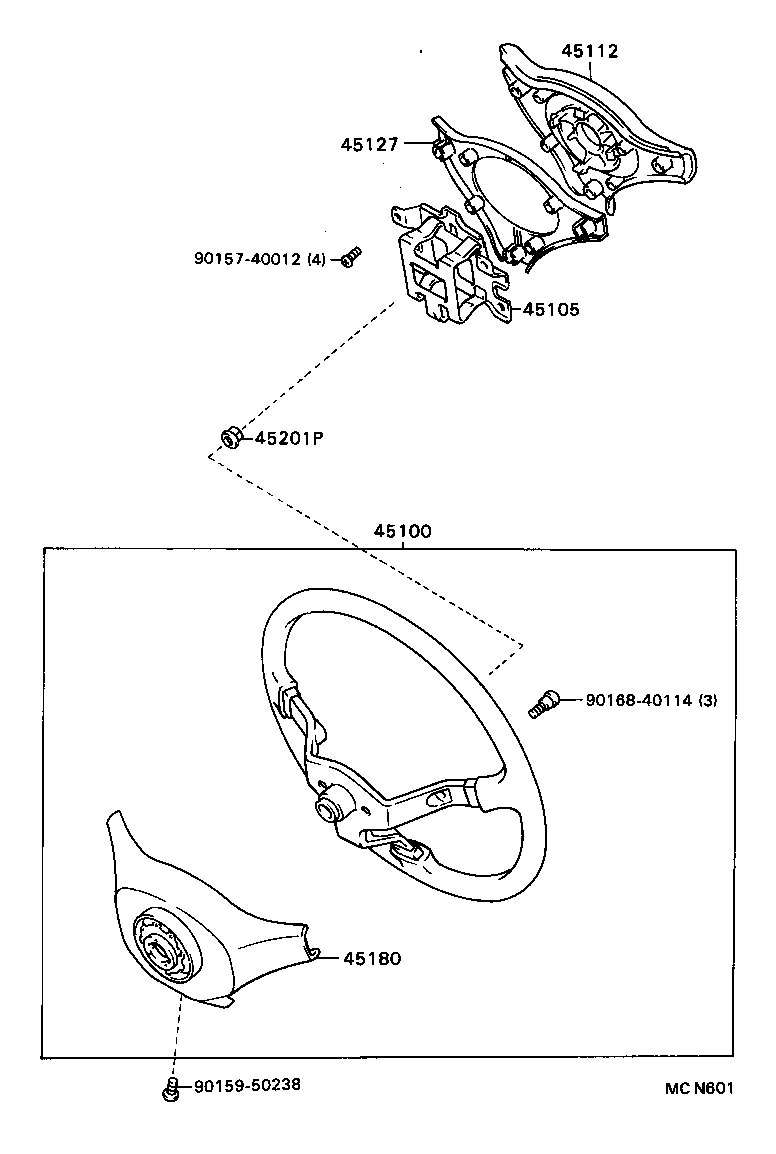

(9208-9408)SE,SG,SGI,SX,SXI
TYPE 1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B230C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45100-2B180C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45100-2B420C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45100-2B231C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45100-2B221C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45100-2B420E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45100-2B220C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45100-2B080C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,BLACK,TRIM1# |
1 | ||
| 45100-2B080E1 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ANTELOPE,TRIM4# |
1 | ||
| 45100-2B440C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45100-2B620C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,4-SPOKE,ｱﾘ(*80),BLACK,BLACK,TRIM1# |
1 | ||
| 45100-2B620E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,4-SPOKE,ｱﾘ(*80),ANTELOPE,ANTELOPE,TRIM4# |
1 | ||
| 45100-2B440E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20430 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI TYPE 2 |
1 | ||
| 45105-20410 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI TYPE 1 |
1 | ||
| 45105-20380 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI |
1 | ||
| 45112 - PAD, STEERING WHEEL | ||||
| 45112-20621C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45112-20620C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45112-20630C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45127 - INSERT, HORN BUTTON, UPPER NO.1 | ||||
| 45127-20010 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-20120E1 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45180-20120C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI BLACK,TRIM1# |
1 | ||
| 45180-20220C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45180-20200C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT19#,CT19#,ST19# |
1 | ||
| 90179-12071 |
AT19#,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90157-40012 | ||||
| 90159-50238 | ||||
| 90168-40114 | ||||

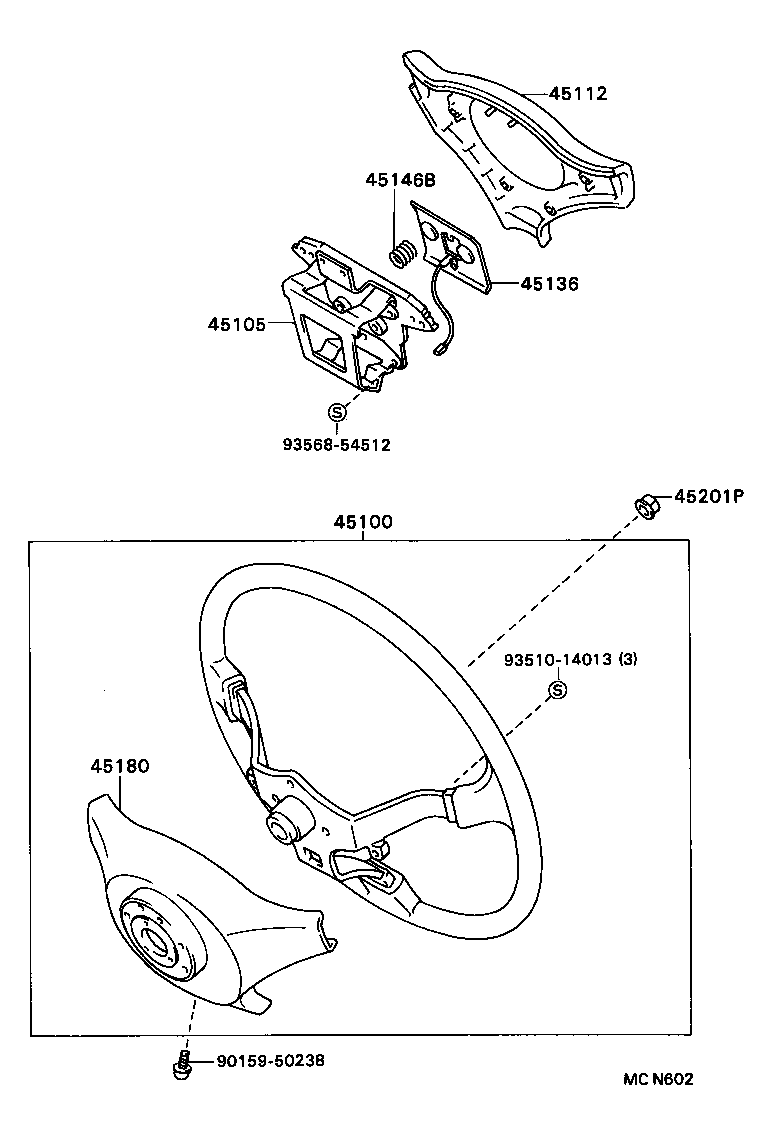

(9208-9408)SE,SG,SGI,SX,SXI
TYPE 2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B230C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45100-2B180C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45100-2B420C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45100-2B231C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45100-2B221C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45100-2B420E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45100-2B220C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45100-2B080C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,BLACK,TRIM1# |
1 | ||
| 45100-2B080E1 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ANTELOPE,TRIM4# |
1 | ||
| 45100-2B440C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45100-2B620C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,4-SPOKE,ｱﾘ(*80),BLACK,BLACK,TRIM1# |
1 | ||
| 45100-2B620E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,4-SPOKE,ｱﾘ(*80),ANTELOPE,ANTELOPE,TRIM4# |
1 | ||
| 45100-2B440E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20430 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI TYPE 2 |
1 | ||
| 45105-20410 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI TYPE 1 |
1 | ||
| 45105-20380 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI |
1 | ||
| 45112 - PAD, STEERING WHEEL | ||||
| 45112-20621C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45112-20620C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45112-20630C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45136 - PLATE, HORN BUTTON CONTACT | ||||
| 45136-20370 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI |
1 | ||
| 45146B - SPRING, HORN BUTTON CONTACT, NO.1 | ||||
| 45146-20140 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-20120E1 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45180-20120C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI BLACK,TRIM1# |
1 | ||
| 45180-20220C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45180-20200C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT19#,CT19#,ST19# |
1 | ||
| 90179-12071 |
AT19#,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90159-50238 | ||||
| 93510-14013 | ||||
| 93568-54512 | ||||

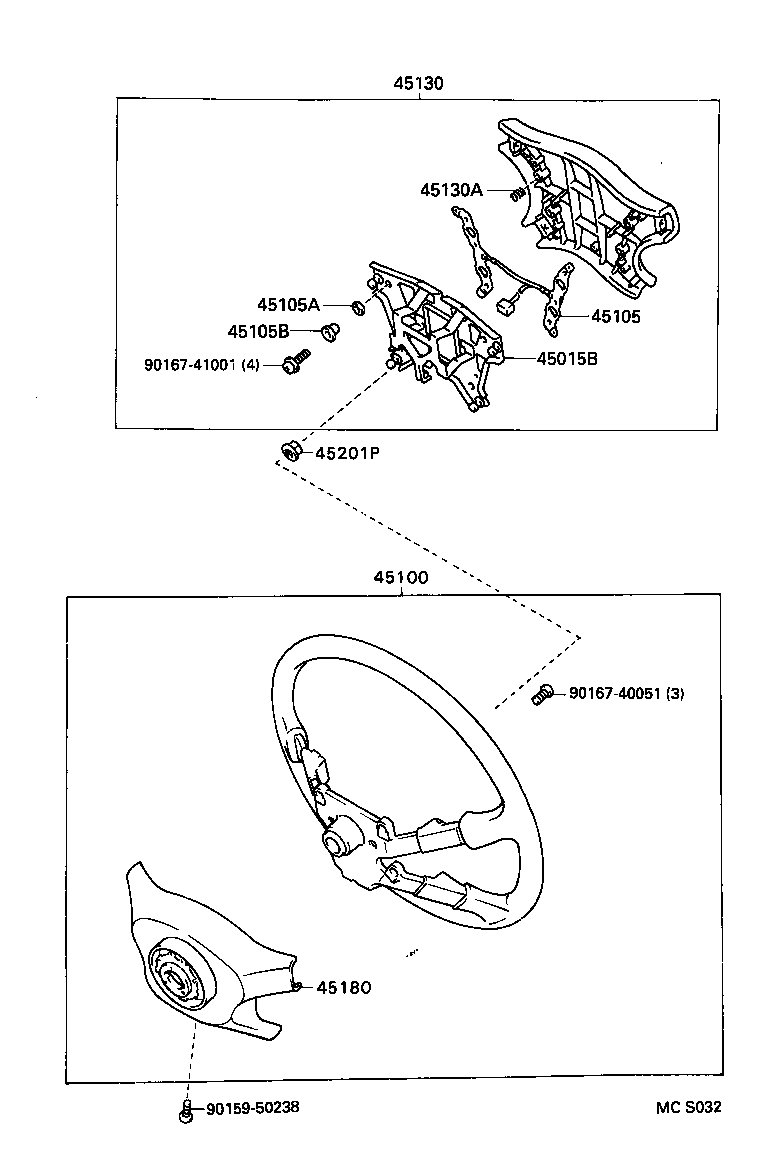

(9408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45015B - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2 | ||||
| 45015-20030 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI |
1 | ||
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B230C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45100-2B180C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45100-2B420C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45100-2B231C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45100-2B221C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45100-2B420E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45100-2B220C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45100-2B080C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,BLACK,TRIM1# |
1 | ||
| 45100-2B080E1 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ANTELOPE,TRIM4# |
1 | ||
| 45100-2B440C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45100-2B620C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,4-SPOKE,ｱﾘ(*80),BLACK,BLACK,TRIM1# |
1 | ||
| 45100-2B620E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,4-SPOKE,ｱﾘ(*80),ANTELOPE,ANTELOPE,TRIM4# |
1 | ||
| 45100-2B440E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20430 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI TYPE 2 |
1 | ||
| 45105-20410 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI TYPE 1 |
1 | ||
| 45105-20380 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI |
1 | ||
| 45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90540-08014 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI |
4 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 45155-22040 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B171C0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45130-2B170C0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45130-2B181C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45130-2B340C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B390E0 |
AT19#,CT19#,ST195 ｱﾘ(*80),ANTELOPE,ANTELOPE,TRIM4# |
1 | ||
| 45130-2B310E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45130-2B351C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B350E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45130-2B390C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,BLACK,TRIM1# |
1 | ||
| 45130-2B310C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI BLACK,TRIM1# |
1 | ||
| 45130-2B321C0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45130-2B351E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45130-2B350C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130A - SPRING, COMPRESSION(FOR HORN BUTTON) | ||||
| 90501-08104 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI |
4 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-20120E1 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45180-20120C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI BLACK,TRIM1# |
1 | ||
| 45180-20220C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45180-20200C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT19#,CT19#,ST19# |
1 | ||
| 90179-12071 |
AT19#,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90159-50238 | ||||
| 90167-40051 | ||||
| 90167-41001 | ||||
(9408- )

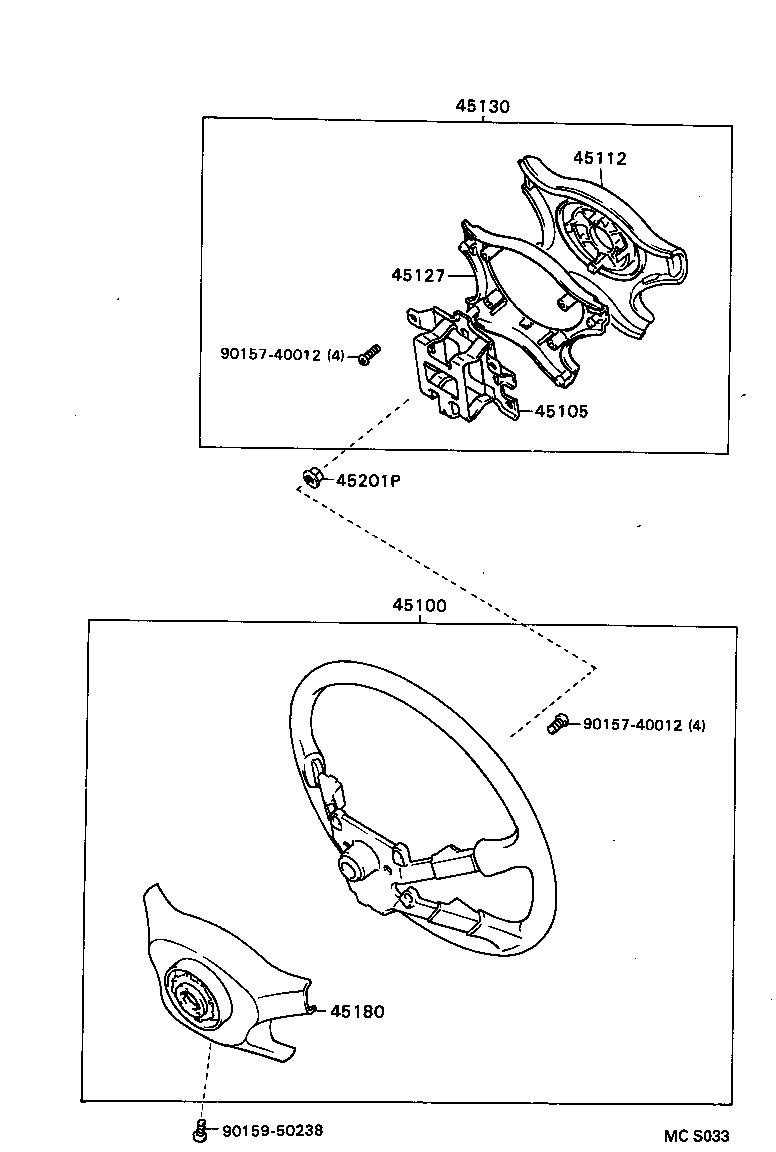

LEATHER TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B230C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45100-2B180C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45100-2B420C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45100-2B231C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45100-2B221C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45100-2B420E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45100-2B220C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45100-2B080C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,BLACK,TRIM1# |
1 | ||
| 45100-2B080E1 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ANTELOPE,TRIM4# |
1 | ||
| 45100-2B440C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45100-2B620C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,4-SPOKE,ｱﾘ(*80),BLACK,BLACK,TRIM1# |
1 | ||
| 45100-2B620E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,4-SPOKE,ｱﾘ(*80),ANTELOPE,ANTELOPE,TRIM4# |
1 | ||
| 45100-2B440E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20430 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI TYPE 2 |
1 | ||
| 45105-20410 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI TYPE 1 |
1 | ||
| 45105-20380 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI |
1 | ||
| 45112 - PAD, STEERING WHEEL | ||||
| 45112-20621C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45112-20620C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45112-20630C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45127 - INSERT, HORN BUTTON, UPPER NO.1 | ||||
| 45127-20010 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B171C0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45130-2B170C0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45130-2B181C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45130-2B340C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B390E0 |
AT19#,CT19#,ST195 ｱﾘ(*80),ANTELOPE,ANTELOPE,TRIM4# |
1 | ||
| 45130-2B310E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45130-2B351C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B350E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45130-2B390C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,BLACK,TRIM1# |
1 | ||
| 45130-2B310C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI BLACK,TRIM1# |
1 | ||
| 45130-2B321C0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45130-2B351E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45130-2B350C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-20120E1 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45180-20120C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI BLACK,TRIM1# |
1 | ||
| 45180-20220C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45180-20200C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT19#,CT19#,ST19# |
1 | ||
| 90179-12071 |
AT19#,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90157-40012 | ||||
| 90159-50238 | ||||
(9408- )

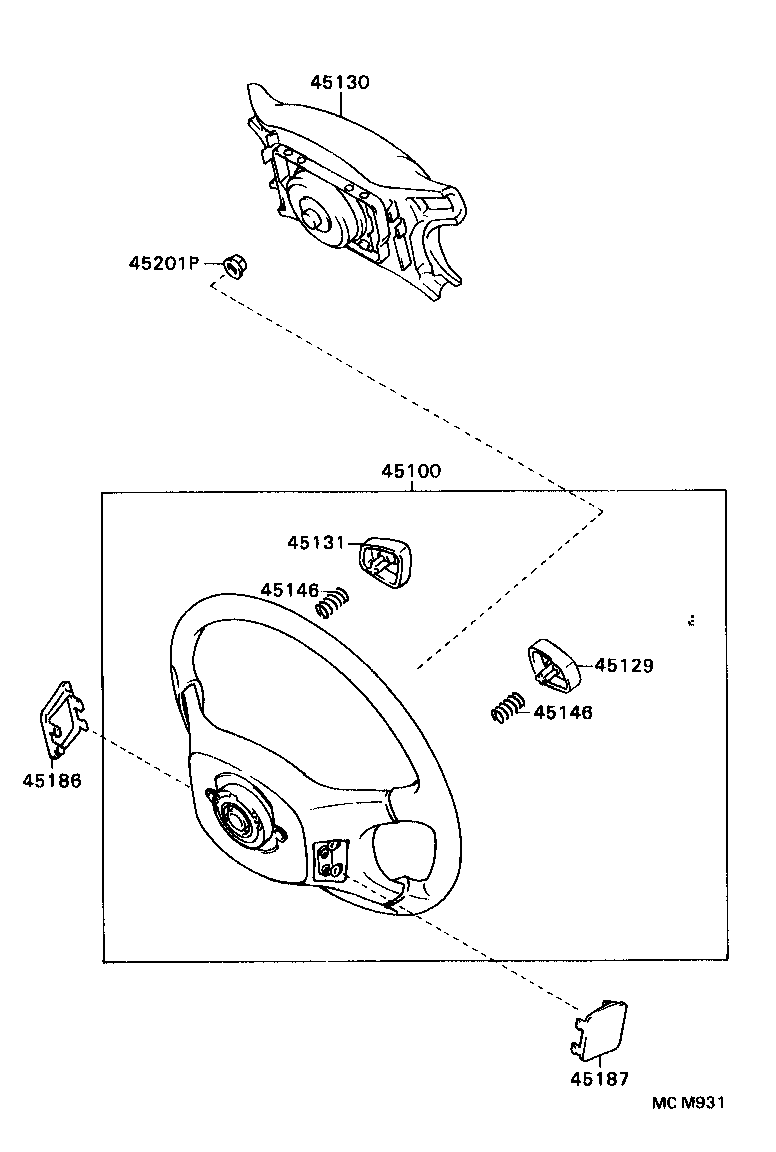

SRS ｴｱﾊﾞﾂｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B230C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45100-2B180C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#,4#,TYPE 1 |
1 | ||
| 45100-2B420C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45100-2B231C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45100-2B221C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45100-2B420E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45100-2B220C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4#,TYPE 2 |
1 | ||
| 45100-2B080C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,BLACK,TRIM1# |
1 | ||
| 45100-2B080E1 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ANTELOPE,TRIM4# |
1 | ||
| 45100-2B440C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45100-2B620C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,4-SPOKE,ｱﾘ(*80),BLACK,BLACK,TRIM1# |
1 | ||
| 45100-2B620E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,4-SPOKE,ｱﾘ(*80),ANTELOPE,ANTELOPE,TRIM4# |
1 | ||
| 45100-2B440E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI 4本ｽﾎﾟｰｸ,ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45108B - BUTTON SUB-ASSY, HORN(FOR STEERING WHEEL ASSY) | ||||
| 45108-32080 |
AT19#,CT19#,ST195 |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-32020C0 |
AT19#,CT19#,ST195 BLACK,TRIM1# |
1 | ||
| 45129-33010C0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45129-32020E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B171C0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45130-2B170C0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45130-2B181C0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45130-2B340C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B390E0 |
AT19#,CT19#,ST195 ｱﾘ(*80),ANTELOPE,ANTELOPE,TRIM4# |
1 | ||
| 45130-2B310E0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45130-2B351C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B350E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45130-2B390C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,BLACK,TRIM1# |
1 | ||
| 45130-2B310C0 |
AT19#,CT19#,ST195..SE,SG,SGI,SX,SXI BLACK,TRIM1# |
1 | ||
| 45130-2B321C0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),BLACK,TRIM1#,4# |
1 | ||
| 45130-2B351E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ｱﾘ(*80),ANTELOPE,TRIM4# |
1 | ||
| 45130-2B350C0 |
AT19#,CT19#,ST195 ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-33010C0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45131-32070C0 |
AT19#,CT19#,ST195 BLACK,TRIM1# |
1 | ||
| 45131-32070E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI |
2 | ||
| 45146-32070 |
AT19#,CT19#,ST195 |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI |
2 | ||
| 45146-32070 |
AT19#,CT19#,ST195 |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-32040E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45186-2002022 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45186-32040C0 |
AT19#,CT19#,ST195 BLACK,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20030C0 |
AT19#,CT19#,ST19#..SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 45187-32040E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 45187-32040C0 |
AT19#,CT19#,ST195 BLACK,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT19#,CT19#,ST19# |
1 | ||
| 90179-12071 |
AT19#,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90148-60007 | ||||
| 90159-50265 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
