AT192-CEPNK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )4AFE,5AFE,7AFE

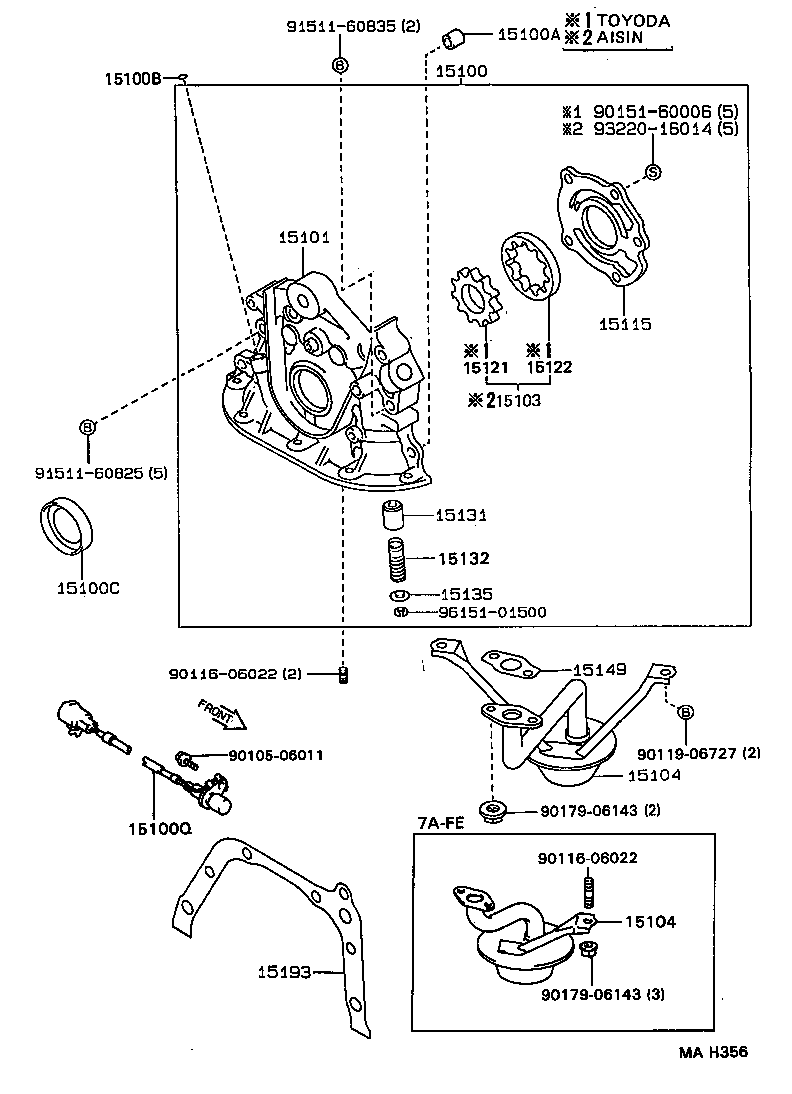

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15100Q 15101 15103 15104 15104 15115 15121 15122 15131 15132 15135 15149 15193 9010506011 9011606022 9011606022 9011906727 9015160006 9017906143 9017906143 9151160825 9151160835 9322016014 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-15060

5AFE..AT192

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

4AFE,5AFE,7AFE..AT19#

 2
15100B - RING, O(FOR OIL PUMP)
96721-19010

4AFE,5AFE,7AFE..AT19#

 1
15100C - SEAL(FOR OIL PUMP)
90311-32018

4AFE,5AFE,7AFE..AT19#

 1
15101 - BODY SUB-ASSY, OIL PUMP
15101-15070

5AFE..AT192

TOYODA KOUKI

 1
15011-15060

5AFE..AT192

AISIN SEIKI

 1
15103 - GEAR SET, OIL PUMP
15103-15020

5AFE,7AFE..AT191,192

 1
15103-15020

4AFE,5AFE,7AFE..AT19#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-15090

4AFE,5AFE..AT190,192

 1
15104 - STRAINER SUB-ASSY, OIL
15104-15090

4AFE,5AFE..AT190,192

 1
15115 - COVER, OIL PUMP
15115-15030

5AFE..AT192

TOYODA KOUKI

 1
15115-15020

5AFE..AT192

AISIN SEIKI

 1
15115-16060

5AFE..AT192

TOYODA KOUKI

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15040

4AFE,5AFE..AT190,192

 1
15121-15040

5AFE..AT192

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15040

4AFE,5AFE..AT190,192

 1
15122-15040

5AFE..AT192

 1
15131 - VALVE, OIL PUMP RELIEF
15131-15030

5AFE..AT192

TOYODA KOUKI

 1
15131-24010

5AFE..AT192

AISIN SEIKI

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

5AFE..AT192

AISIN SEIKI

 1
15132-15030

5AFE..AT192

TOYODA KOUKI

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15030

5AFE..AT192

TOYODA KOUKI

 1
15135-15010

5AFE..AT192

AISIN SEIKI

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-16010

4AFE,5AFE,7AFE..AT19#

 1
15193 - GASKET, OIL PUMP
15197-15030

4AFE,5AFE..AT190,192

 1
15197-15012

4AFE,5AFE..AT19#

 1
Common parts
90105-06011
90116-06022
90119-06727
90151-60006
90179-06143
91511-60825
91511-60835
93220-16014
96151-01500
