AT192-CEPMK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

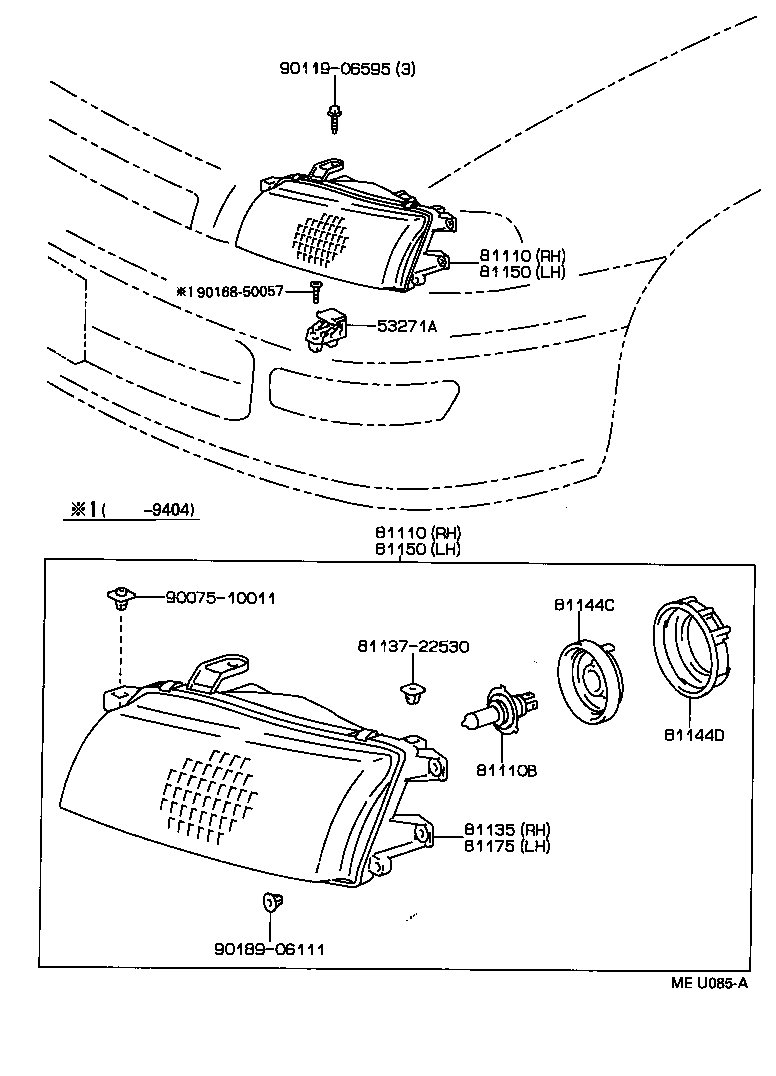

Click highlighted areas on diagram

diagram 53271A 81110 81110 81110B 81135 8113722530 81144C 81144D 81150 81150 81175 9007510011 9011906595 9016850057 9018906111
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060

AT19#,CT19#,ST19#

 2
53271-12040

AT19#,CT19#,ST19#

 2
81110 - HEADLAMP ASSY, RH
81110-2B781

AT19#,CT19#,ST195

 1
81110-2B780

AT19#,CT19#,ST19#

 1
81110 - HEADLAMP ASSY, RH
81110-2B781

AT19#,CT19#,ST195

 1
81110-2B780

AT19#,CT19#,ST19#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AT19#,CT19#,ST19#

12V 60/55W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-2B781

AT19#,CT19#,ST195

 1
81130-2B780

AT19#,CT19#,ST19#

 1
81144C - COVER, HEADLAMP SOCKET
90075-99058

AT19#,CT19#,ST19#

 2
81144D - CAP, HEADLAMP LOCKING
90075-99057

AT19#,CT19#,ST19#

 2
81150 - HEADLAMP ASSY, LH
81150-2B740

AT19#,CT19#,ST19#

 1
81150-2B741

AT19#,CT19#,ST195

 1
81150 - HEADLAMP ASSY, LH
81150-2B740

AT19#,CT19#,ST19#

 1
81150-2B741

AT19#,CT19#,ST195

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-2B740

AT19#,CT19#,ST19#

 1
81170-2B741

AT19#,CT19#,ST195

 1
Common parts
81137-22530
90075-10011
90119-06595
90168-50057
90189-06111
