AT192-CEPMK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

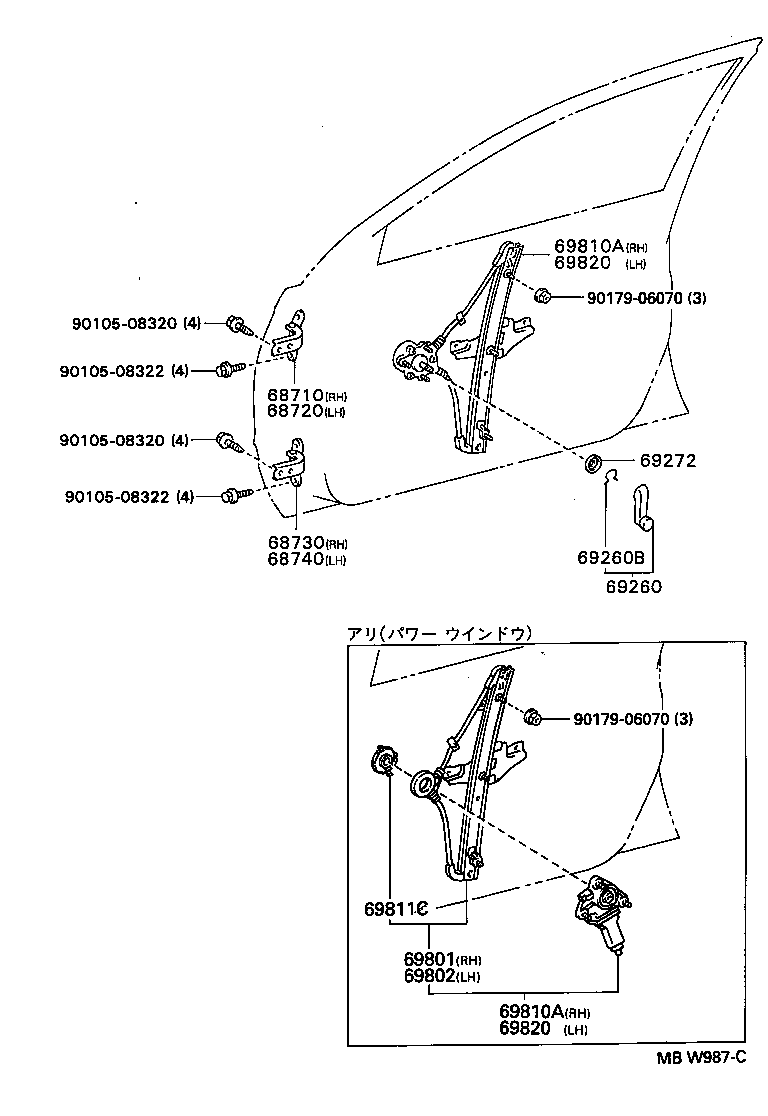

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69802 69810A 69810A 69811C 69820 69820 9010508320 9010508320 9010508322 9010508322 9017906070 9017906070
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12150

AT19#,CT19#,ST195

 1
68710-12130

AT19#,CT19#,ST19#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12130

AT19#,CT19#,ST19#

 1
68720-12150

AT19#,CT19#,ST195

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-12130

AT19#,CT19#,ST19#

 1
68720-12150

AT19#,CT19#,ST195

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-12150

AT19#,CT19#,ST195

 1
68710-12130

AT19#,CT19#,ST19#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-20220

CT19#,ST195;AT19#..SEEXT,SL,SX,SXI

 1
69801-20220

CT195,ST195;AT19#,CT190..SE,SEEXT,SL,SX,SXI

 1
69801-20220

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-20240

CT19#,ST195;AT19#..SEEXT,SL,SX,SXI

 1
69802-20240

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
69802-20240

CT195,ST195;AT19#,CT190..SE,SEEXT,SL,SX,SXI

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-20310

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-20310

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
69811C - PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
69813-32010

CT19#,ST195;AT19#..SEEXT,SL,SX,SXI

 2
69813-32040

CT195,ST195;AT19#,CT190..SE,SEEXT,SL,SX,SXI

右側

 1
69813-32010

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 2
69814-32010

CT195,ST195;AT19#,CT190..SE,SEEXT,SL,SX,SXI

左側

 1
69813-32010

CT195,ST195;AT19#,CT190..SE,SEEXT,SL,SX,SXI

 2
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-20330

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-20330

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
Common parts
90105-08320
90105-08322
90179-06070
