AT192-CEPMK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

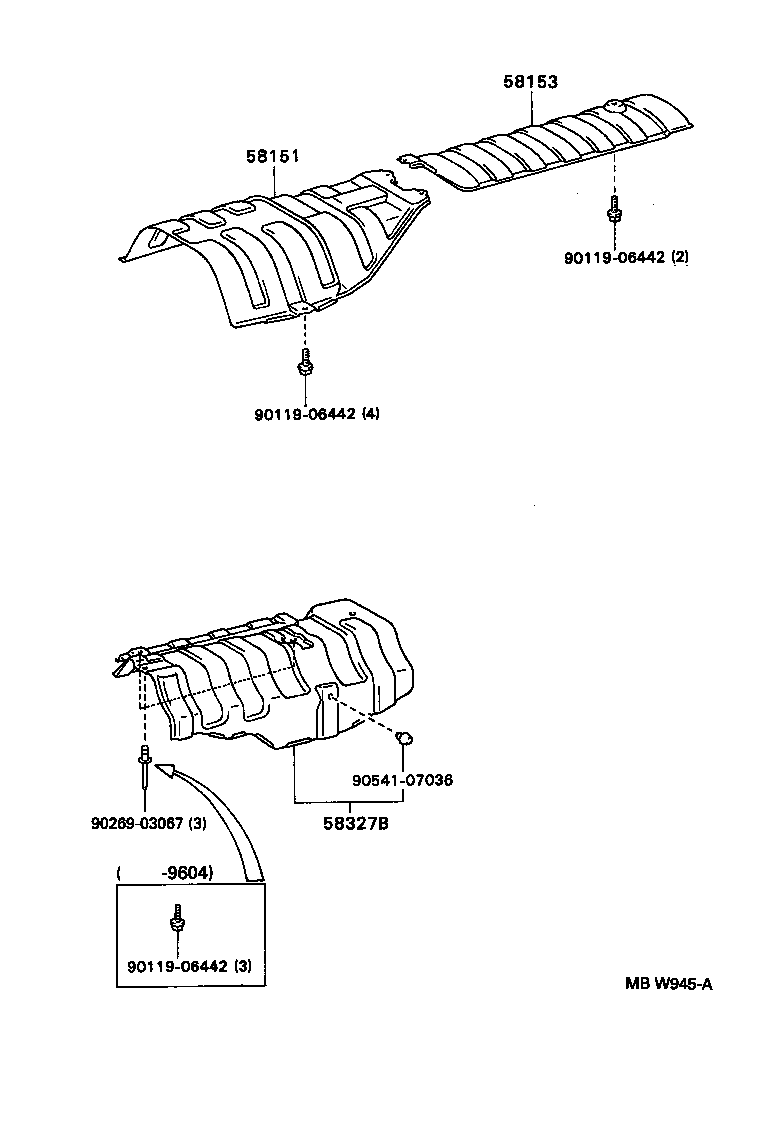

Click highlighted areas on diagram

diagram 58151 58153 58327B 9011906442 9011906442 9011906442 9026903067 9054107036
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-20090

AT192

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-20100

AT19#,ST190

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-20080

AT19#,CT19#,ST19#

 1
Common parts
90119-06442
90269-03067
90541-07036
