AT192-CEPMK (1992)
Toyota Carina Ff

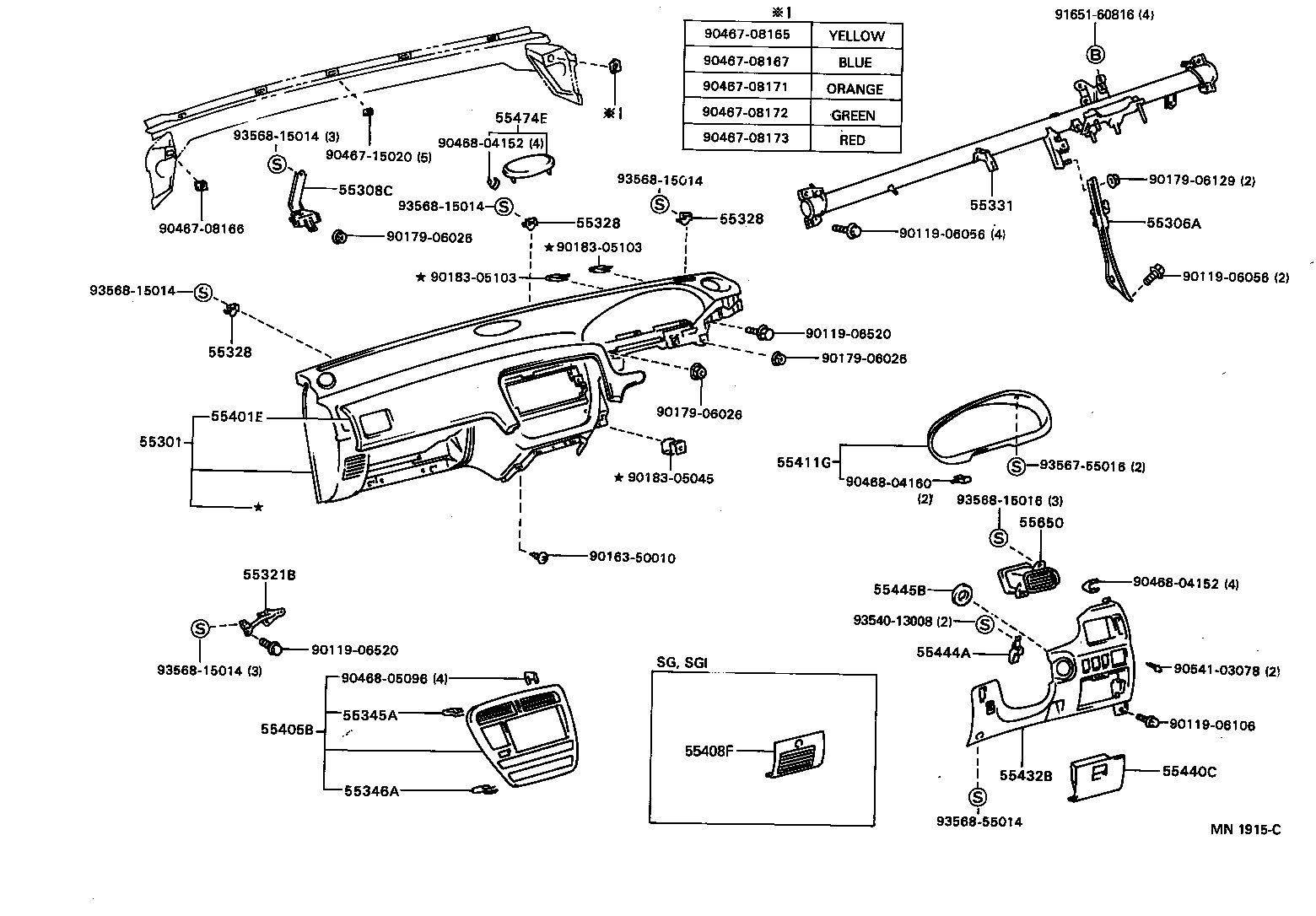

ILLUST NO. 1 OF 2(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-20080E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55300-20080B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55300-20080E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55351-20190 |
AT19#,CT19#,ST19# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-20190 |
AT19#,CT19#,ST19# |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-20100 |
AT19#,CT19#,ST19# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20080 |
AT19#,CT19#,ST19# CENTER |
1 | ||
| 55329-20040 |
AT19#,CT19#,ST19# RH,LH |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20080 |
AT19#,CT19#,ST19# CENTER |
1 | ||
| 55329-20040 |
AT19#,CT19#,ST19# RH,LH |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20080 |
AT19#,CT19#,ST19# CENTER |
1 | ||
| 55329-20040 |
AT19#,CT19#,ST19# RH,LH |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-20170 |
AT19#,CT19#,ST19# |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-20050 |
AT19#,CT19#,ST19# |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90468-04160 |
AT19#,CT19#,ST19# |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-20660E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55401-20660E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55401-20660B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-20170 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-20650 |
AT19#,CT19#,ST19# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-20300E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55432-20300B1 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI SHADOW GRAY,TRIM1# |
1 | ||
| 55432-20300E1 |
AT19#,CT19#,ST195..SE,SEEXT,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-20130E1 |
AT19#,CT19#,ST195..SE,SEEXT,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55440-20130E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55440-20130B1 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI SHADOW GRAY,TRIM1# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-20070 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
2 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-20150 |
AT19#,CT19#,ST19# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-20240E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55650-20240B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55650-20240E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06056 | ||||
| 90119-06106 | ||||
| 90119-06520 | ||||
| 90163-50010 | ||||
| 90179-06026 | ||||
| 90179-06129 | ||||
| 90183-05045 | ||||
| 90183-05103 | ||||
| 90467-08165 | ||||
| 90467-08166 | ||||
| 90467-08167 | ||||
| 90467-08171 | ||||
| 90467-08172 | ||||
| 90467-08173 | ||||
| 90467-15020 | ||||
| 90468-04152 | ||||
| 90468-04160 | ||||
| 90468-05096 | ||||
| 90541-03078 | ||||
| 91651-60816 | ||||
| 93540-13008 | ||||
| 93567-55016 | ||||
| 93568-15014 | ||||
| 93568-15016 | ||||
| 93568-55014 | ||||

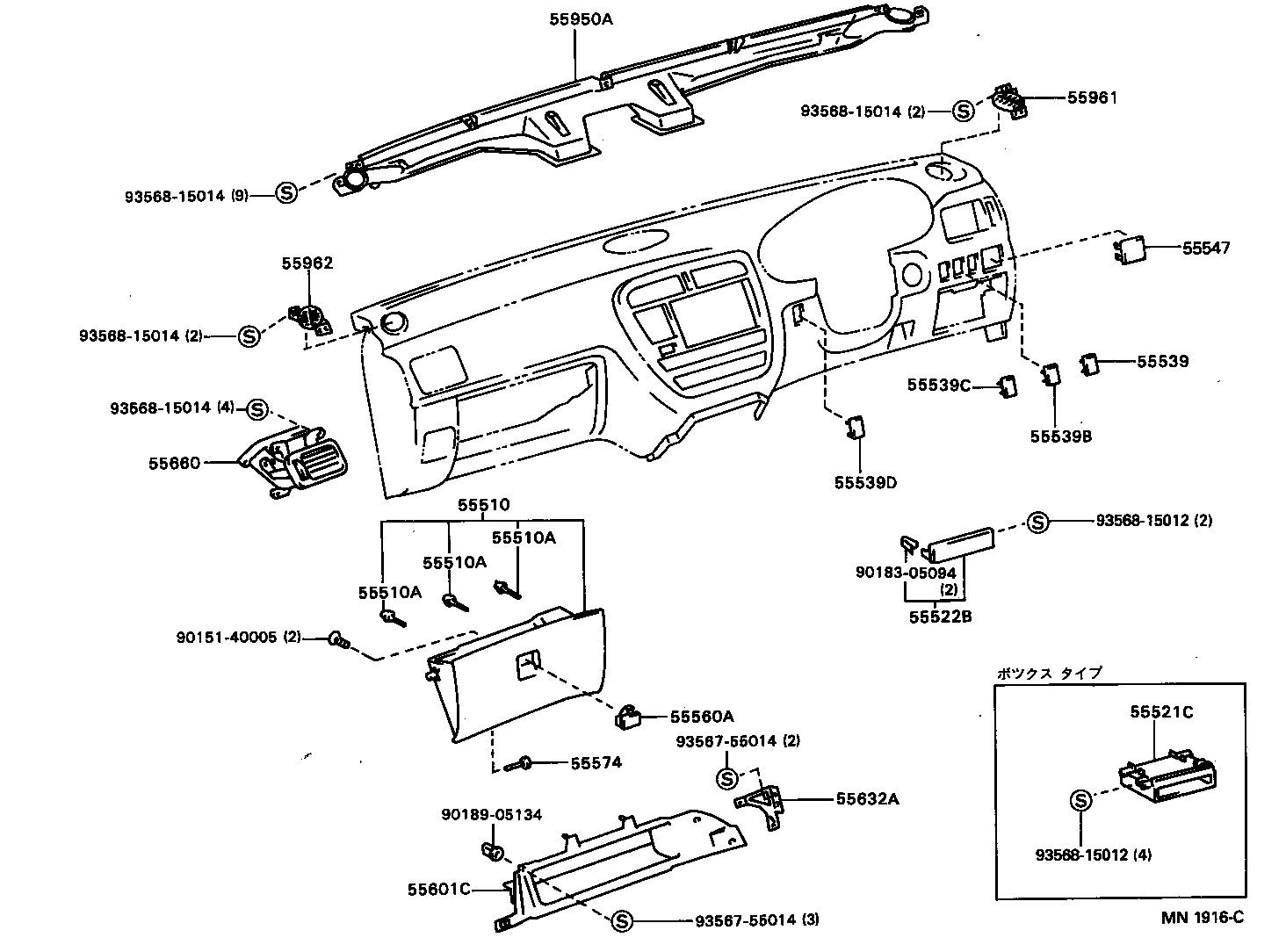

ILLUST NO. 2 OF 2(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-20180B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55550-20180E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55550-20180E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
AT19#,CT19#,ST19# CENTER |
1 | ||
| 90541-05080 |
AT19#,CT19#,ST19# RH,LH |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
AT19#,CT19#,ST19# CENTER |
1 | ||
| 90541-05080 |
AT19#,CT19#,ST19# RH,LH |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
AT19#,CT19#,ST19# CENTER |
1 | ||
| 90541-05080 |
AT19#,CT19#,ST19# RH,LH |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 55521-16030 |
CT190..SG;AT19#,ST195..SL,SX,SXI |
1 | ||
| 55520-20070 |
AT19#,ST195..SL,SX,SXI ｱﾘ(ﾌﾀ ﾂｷ) |
1 | ||
| 55521-16030 |
AT19#,ST195..SL,SX,SXI |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-20070 |
AT19#,CT19#,ST19#..SE,SG,SGI,SL,SX,SXI |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12130E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55539-12130E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-12130E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55539-12130E0 |
AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55539-12130B1 |
ST190..SE,SL,SX;AT19#,CT19#,ST195 SHADOW GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55539-12130B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12130E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55539-12130B1 |
ST195..MTM;AT19#,CT19#,ST190 SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12130B1 |
AT19#,CT19#,ST195 SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12130E0 |
ST195..MTM;AT19#,CT19#,ST190..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-28020B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55547-28020E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK. ROSE,TRIM4# |
1 | ||
| 55547-28020E3 |
AT19#,CT19#,ST195..SE,SEEXT,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55547-28020B1 |
AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI SHADOW GRAY,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12080E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55560-12080E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55560-12080P0 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AT19#,CT19#,ST19# |
2 | ||
| 55601C - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-20100E0 |
CT19#;AT19#,ST19#..SE,SEEXT,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55601-20100B1 |
CT19#;AT19#,ST19#..SE,SEEXT,SL,SX,SXI SHADOW GRAY,TRIM1# |
1 | ||
| 55632A - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55632-20080 |
CT19#;AT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-20210E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55660-20210B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55660-20210E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-20130 |
AT19#,CT19#,ST19# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-20220E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55961-20220E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55961-20220B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-20220E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55962-20220B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55962-20220E1 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 90183-05094 | ||||
| 90189-05134 | ||||
| 93567-55014 | ||||
| 93568-15012 | ||||
| 93568-15014 | ||||
