AT192-CEPMK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )4AFE,5AFE,7AFE

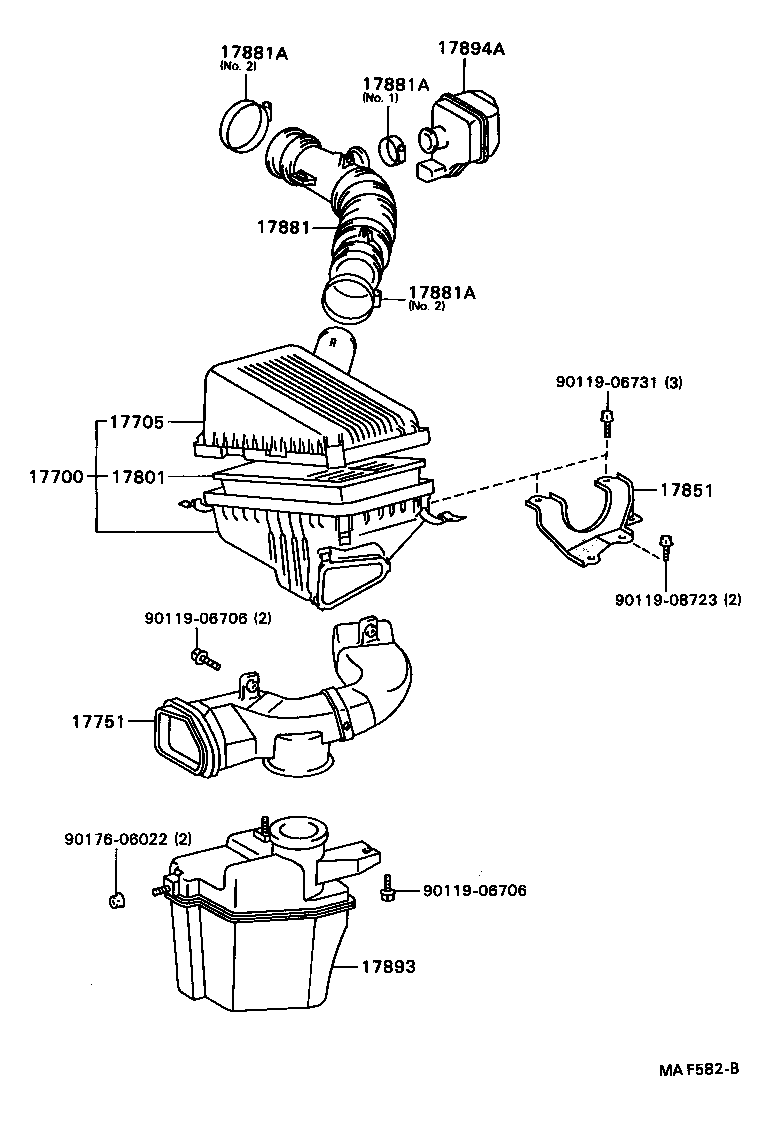

Click highlighted areas on diagram

diagram 17700 17705 17751 17801 17851 17881 17881A 17881A 17881A 17893 17894A 9011906706 9011906706 9011906731 9011908723 9017606022
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-16770

4AFE,5AFE,7AFE..AT19#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16440

4AFE,5AFE,7AFE..AT19#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-16070

4AFE,5AFE,7AFE..AT19#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

4AFE,5AFE,7AFE..AT19#

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-74040

4AFE,5AFE,7AFE..AT19#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-16330

4AFE,5AFE,7AFE..AT19#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73001

4AFE,5AFE..AT19#

NO.2

 2
96111-10730

4AFE,5AFE,7AFE..AT19#

NO.2

 2
90460-50002

4AFE,5AFE,7AFE..AT19#

NO.1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73001

4AFE,5AFE..AT19#

NO.2

 2
96111-10730

4AFE,5AFE,7AFE..AT19#

NO.2

 2
90460-50002

4AFE,5AFE,7AFE..AT19#

NO.1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73001

4AFE,5AFE..AT19#

NO.2

 2
96111-10730

4AFE,5AFE,7AFE..AT19#

NO.2

 2
90460-50002

4AFE,5AFE,7AFE..AT19#

NO.1

 1
17893 - RESONATOR, INTAKE AIR
17893-16100

4AFE,5AFE,7AFE..AT19#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-16030

4AFE,5AFE,7AFE..AT19#

 1
17894-16070

4AFE,5AFE,7AFE..AT19#

 1
Common parts
90119-06706
90119-06731
90119-08723
90176-06022
