AT192-CEMNK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 5AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

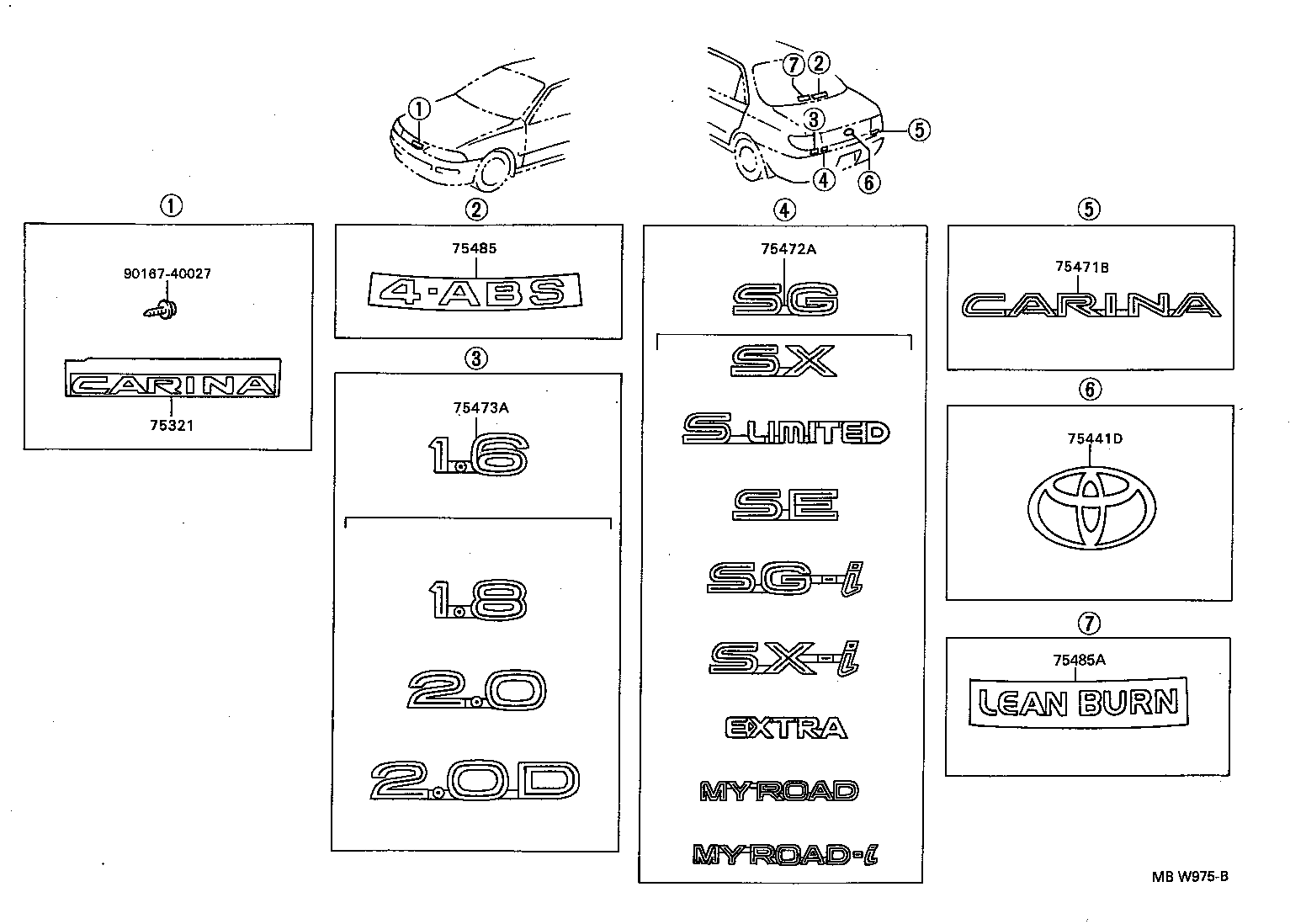

Click highlighted areas on diagram

diagram 75321 75441D 75471B 75472A 75473A 75485 75485A 9016740027
Part # Description Qty Price
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-20670

AT19#,CT19#,ST19#

 1
75321-20680

AT19#,CT19#,ST195

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-20350

AT19#,CT19#,ST19#

 1
75471B - PLATE, REAR BODY NAME, NO.1
75471-20040

AT19#,CT19#,ST19#

 1
75472A - PLATE, REAR BODY NAME, NO.2
75472-20010

AT192,CT19#,ST195..SG

SG

 1
75472-20110

AT192

MYROAD

 1
75485 - PLATE, BACK WINDOW NAME
75485-20600

ST195;AT19#,CT19#..SE,SEEXT,SG,SGI,SL

4−ABS

 1
75485-20340

AT19#,CT19#,ST19#

4−ABS

 1
75485-20600

AT19#,CT19#,ST195

4−ABS

 1
Common parts
90167-40027
