AT192-CEMMK (1992)
Toyota Carina Ff

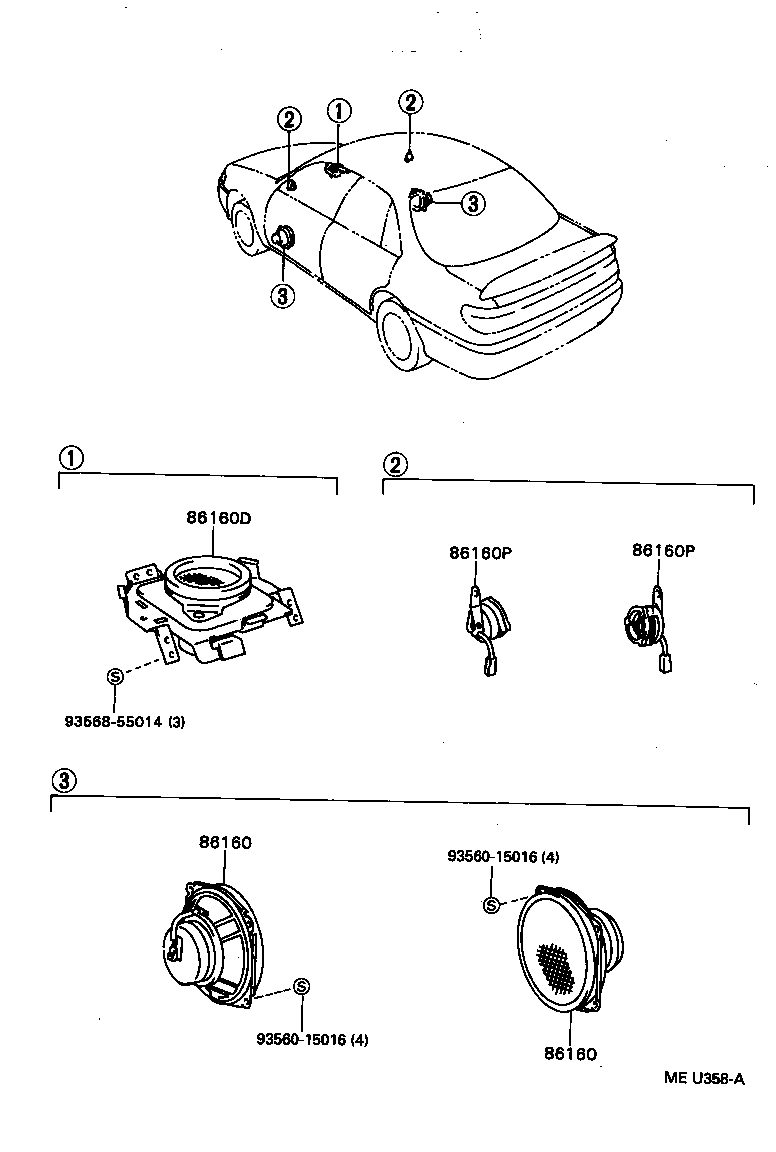

ILLUST NO. 1 OF 3(9208- )
FRONT 2SP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-2B100 |
AT19#,ST19#..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160-20830 |
AT19#,ST19#..SL,SX,SXI |
2 | ||
| 86160-2B100 |
AT19#,ST190..SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160-2B130 |
AT190..M;AT191,192,ST19#..SX,SXI 20W,ｱﾘ(ﾗｼﾞｵﾚｽ---4ｽﾋﾟｰｶ) |
2 | ||
| 86160-0W010 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP),PHILLIPS |
2 | ||
| 86160-2B100 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP),MATSUSHITA |
2 | ||
| 86160-2B100 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-2B100 |
AT19#,ST19#..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160-20830 |
AT19#,ST19#..SL,SX,SXI |
2 | ||
| 86160-2B100 |
AT19#,ST190..SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160-2B130 |
AT190..M;AT191,192,ST19#..SX,SXI 20W,ｱﾘ(ﾗｼﾞｵﾚｽ---4ｽﾋﾟｰｶ) |
2 | ||
| 86160-0W010 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP),PHILLIPS |
2 | ||
| 86160-2B100 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP),MATSUSHITA |
2 | ||
| 86160-2B100 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-2B100 |
AT19#,ST19#..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160-20830 |
AT19#,ST19#..SL,SX,SXI |
2 | ||
| 86160-2B100 |
AT19#,ST190..SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160-2B130 |
AT190..M;AT191,192,ST19#..SX,SXI 20W,ｱﾘ(ﾗｼﾞｵﾚｽ---4ｽﾋﾟｰｶ) |
2 | ||
| 86160-0W010 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP),PHILLIPS |
2 | ||
| 86160-2B100 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP),MATSUSHITA |
2 | ||
| 86160-2B100 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-2B100 |
AT19#,ST19#..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160-20830 |
AT19#,ST19#..SL,SX,SXI |
2 | ||
| 86160-2B100 |
AT19#,ST190..SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160-2B130 |
AT190..M;AT191,192,ST19#..SX,SXI 20W,ｱﾘ(ﾗｼﾞｵﾚｽ---4ｽﾋﾟｰｶ) |
2 | ||
| 86160-0W010 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP),PHILLIPS |
2 | ||
| 86160-2B100 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP),MATSUSHITA |
2 | ||
| 86160-2B100 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| Common parts | ||||
| 93560-15016 | ||||
| 93568-15014 | ||||

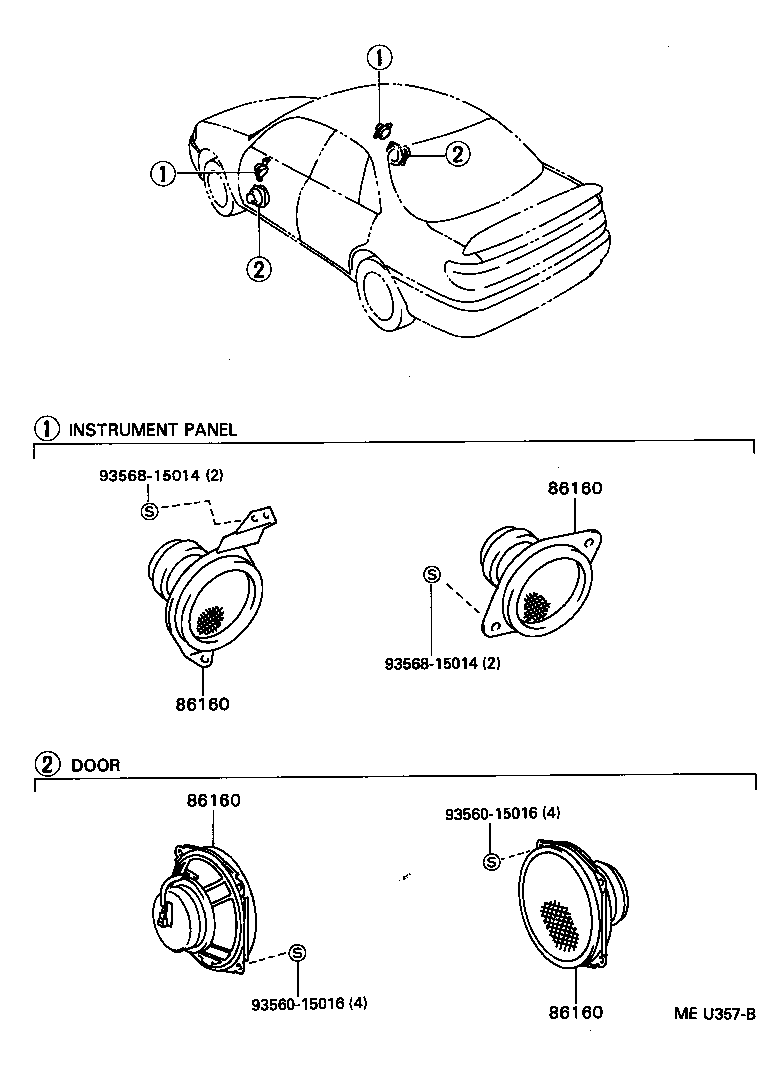

ILLUST NO. 2 OF 3(9208- )
FRONT 4SP,5SP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-2B100 |
AT19#,ST19#..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160-20830 |
AT19#,ST19#..SL,SX,SXI |
2 | ||
| 86160-2B100 |
AT19#,ST190..SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160-2B130 |
AT190..M;AT191,192,ST19#..SX,SXI 20W,ｱﾘ(ﾗｼﾞｵﾚｽ---4ｽﾋﾟｰｶ) |
2 | ||
| 86160-0W010 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP),PHILLIPS |
2 | ||
| 86160-2B100 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP),MATSUSHITA |
2 | ||
| 86160-2B100 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-2B100 |
AT19#,ST19#..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160-20830 |
AT19#,ST19#..SL,SX,SXI |
2 | ||
| 86160-2B100 |
AT19#,ST190..SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| 86160-2B130 |
AT190..M;AT191,192,ST19#..SX,SXI 20W,ｱﾘ(ﾗｼﾞｵﾚｽ---4ｽﾋﾟｰｶ) |
2 | ||
| 86160-0W010 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP),PHILLIPS |
2 | ||
| 86160-2B100 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP),MATSUSHITA |
2 | ||
| 86160-2B100 |
AT19#,ST195..SL,SX,SXI 10W,ｱﾘ(ﾗｼﾞｵ---4SP) |
2 | ||
| Common parts | ||||
| 93560-15016 | ||||
| 93568-55014 | ||||

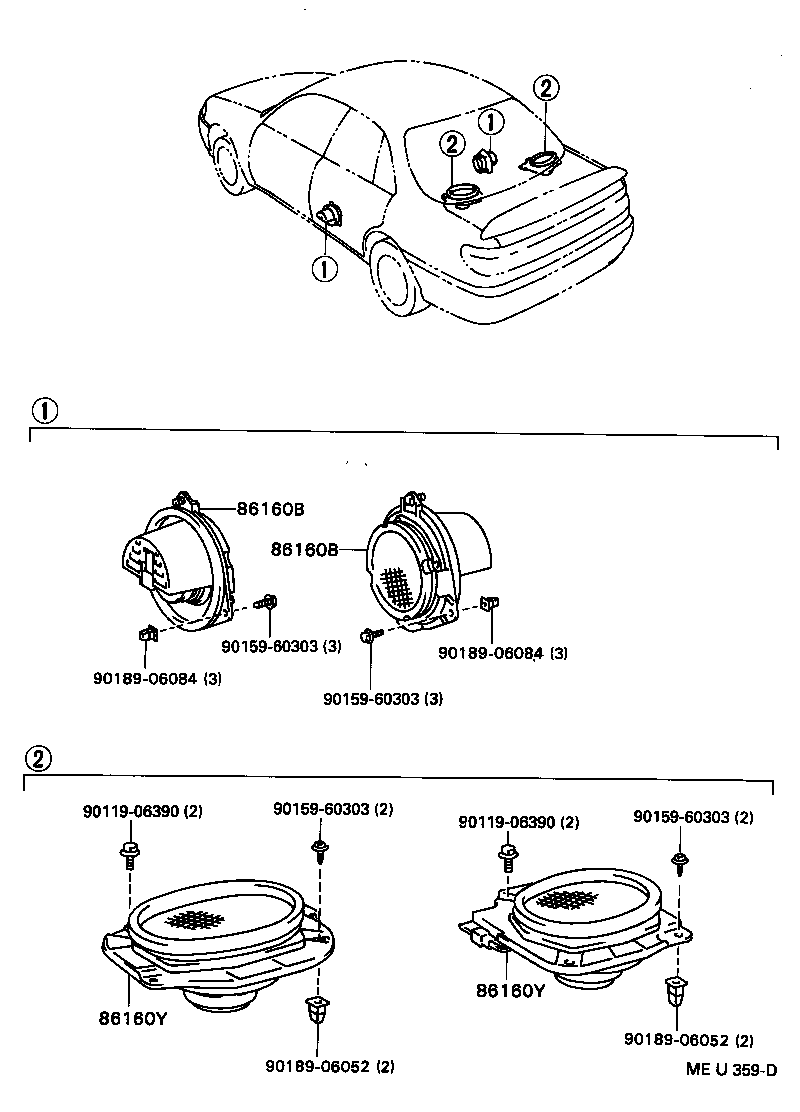

ILLUST NO. 3 OF 3(9208- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-2B110 |
AT19#,ST19#..SL,SX,SXI 10W,MATSUSHITA |
2 | ||
| 86160-2B110 |
AT19#,ST190..SX,SXI 10W,MATSUSHITA |
2 | ||
| 86160-2B110 |
AT19#,ST195..SL,SX,SXI 10W |
2 | ||
| 86160-0W020 |
AT19#,ST195..SL,SX,SXI ｱﾘ(4 ｽﾋﾟ-ｶ),PHILLIPS |
2 | ||
| 86160-2B110 |
AT19#,ST195..SL,SX,SXI ｱﾘ(4 ｽﾋﾟ-ｶ),MATSUSHITA |
2 | ||
| 86160-20820 |
AT190..M;AT191,192,ST19#..SX,SXI 20W,ｱﾘ(ﾗｼﾞｵﾚｽ---4ｽﾋﾟｰｶ) |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-2B110 |
AT19#,ST19#..SL,SX,SXI 10W,MATSUSHITA |
2 | ||
| 86160-2B110 |
AT19#,ST190..SX,SXI 10W,MATSUSHITA |
2 | ||
| 86160-2B110 |
AT19#,ST195..SL,SX,SXI 10W |
2 | ||
| 86160-0W020 |
AT19#,ST195..SL,SX,SXI ｱﾘ(4 ｽﾋﾟ-ｶ),PHILLIPS |
2 | ||
| 86160-2B110 |
AT19#,ST195..SL,SX,SXI ｱﾘ(4 ｽﾋﾟ-ｶ),MATSUSHITA |
2 | ||
| 86160-20820 |
AT190..M;AT191,192,ST19#..SX,SXI 20W,ｱﾘ(ﾗｼﾞｵﾚｽ---4ｽﾋﾟｰｶ) |
2 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-60303 | ||||
| 90189-06052 | ||||
| 90189-06084 | ||||
