AT192-CEMMK (1992)
Toyota Carina Ff
(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130E0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55539-12130B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12120B0 |
AT19#,CT19#,ST195 SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12120E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-20020E3 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55539-20020E4 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55539-20020P0 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-20020E3 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55539-20020P0 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539-20020E4 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-20050E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 55604-20050E0 |
AT19#,CT19#,ST195..SE,SEEXT,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 55604-20050B1 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI SHADOW GRAY,TRIM1# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-20110B2 |
AT19#,CT19#,ST195..SE,SL,SX,SXI SHADOW GRAY,TRIM1# |
1 | ||
| 58804-20110E1 |
AT19#,CT19#,ST195..SE,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-20100C0 |
AT19#,CT19#,ST19#..MTM..(SE,SG,SGI,SX,SXI) BLACK,TRIM1#,4# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-20030B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 58815-20030E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 58815-20030C0 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI BLACK,TRIM1#,4# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-20120B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 58901-20120E3 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK. ROSE,TRIM4# |
1 | ||
| 58901-20120E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 58901-20120B2 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 58901-20120E2 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-20170B1 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX SHADOW GRAY,TRIM1# |
1 | ||
| 58905-20170E1 |
AT19#,CT19#,ST19#..SG,SGI,SX DK.ROSE,TRIM4# |
1 | ||
| 58905-20180E1 |
AT19#,CT19#,ST195..SE,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 58905-20180B1 |
AT19#,CT19#,ST195..SE,SL,SX,SXI SHADOW GRAY,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-20170B1 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX SHADOW GRAY,TRIM1# |
1 | ||
| 58905-20170E1 |
AT19#,CT19#,ST19#..SG,SGI,SX DK.ROSE,TRIM4# |
1 | ||
| 58905-20180E1 |
AT19#,CT19#,ST195..SE,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 58905-20180B1 |
AT19#,CT19#,ST195..SE,SL,SX,SXI SHADOW GRAY,TRIM1# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-20020 |
AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI |
1 | ||
| 58909A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58909-20030 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX |
1 | ||
| 58941A - COVER, PARKING BRAKE HOLE | ||||
| 58904-20030E0 |
AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
1 | ||
| 58904-20030B1 |
AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 58904-20030E1 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI DK.ROSE,TRIM4# |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-12040 |
AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI 右側 |
2 | ||
| 58965-12040 |
AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI 左側 |
2 | ||
| 58964-12040 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX 右側 |
1 | ||
| 58965-12040 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX 左側 |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-12040 |
AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI 右側 |
2 | ||
| 58965-12040 |
AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI 左側 |
2 | ||
| 58964-12040 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX 右側 |
1 | ||
| 58965-12040 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX 左側 |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-12040 |
AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI 右側 |
2 | ||
| 58965-12040 |
AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI 左側 |
2 | ||
| 58964-12040 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX 右側 |
1 | ||
| 58965-12040 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX 左側 |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-20020 |
AT19#,CT19#,ST19# |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-20020 |
AT19#,CT19#,ST19# |
1 | ||
| 58985 - RETAINER, CONSOLE BOX | ||||
| 58985-20050 |
AT19#,CT19#,ST19# |
2 | ||
| 58985-20050 |
AT19#,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90468-04152 | ||||
| 90468-04157 | ||||
| 90541-04024 | ||||
| 91665-40616 | ||||
| 93560-55014 | ||||
| 93567-54512 | ||||
| 93568-55016 | ||||

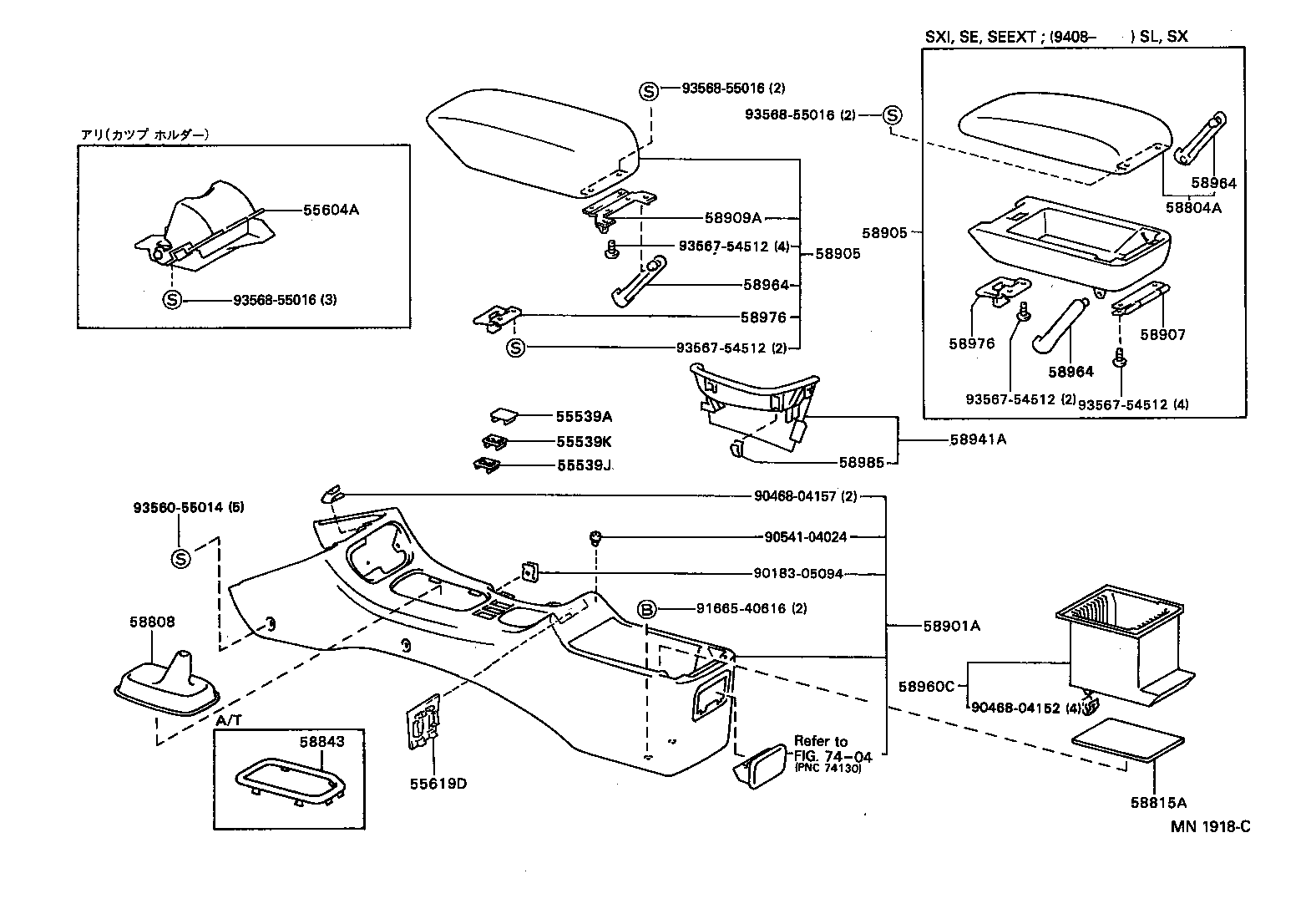

| Linked diagrams | ||||
| 7404 | ||||
