AT192-CEMMK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 5AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )4AFE,5AFE,7AFE..MTM

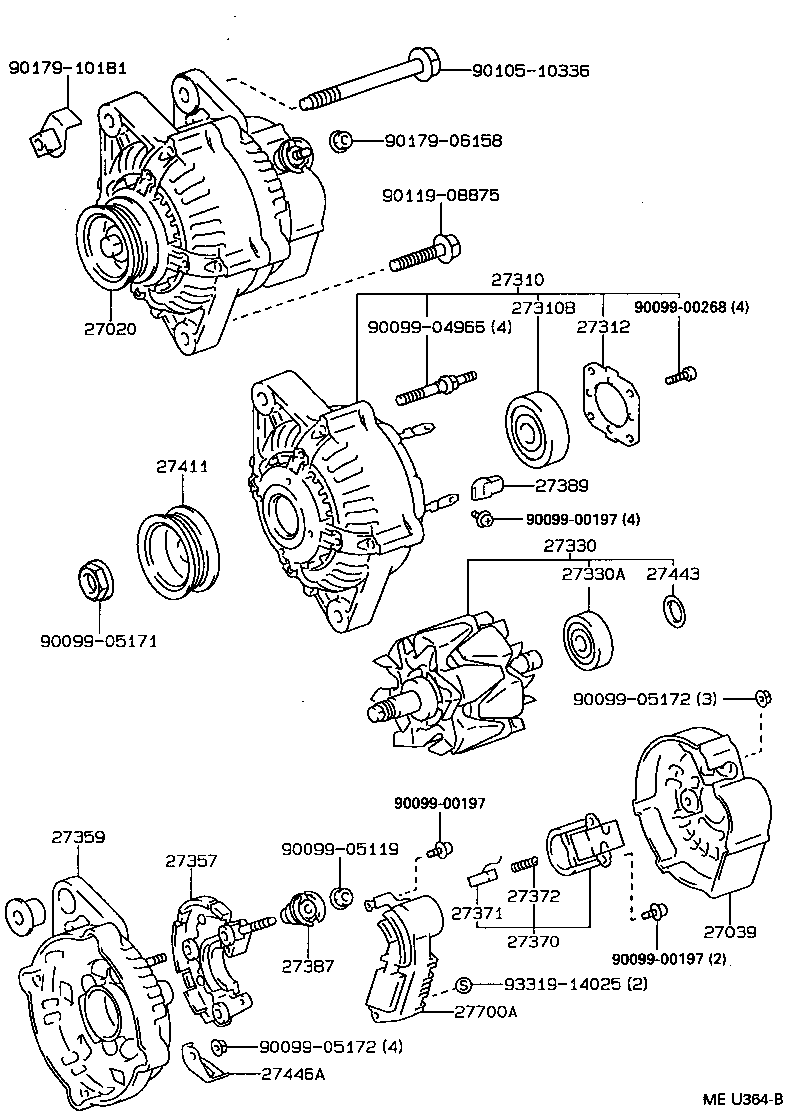

Click highlighted areas on diagram

12V 70A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27372 27387 27389 27411 27443 27446A 27700A 9009900197 9009900197 9009900197 9009900268 9009904966 9009905119 9009905171 9009905172 9009905172 9010510336 9011908875 9017906158 9017910181 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-15130

4AFE,5AFE,7AFE..AT19#..MTM

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-73020

4AFE,5AFE,7AFE..AT19#..MTM

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-15170

4AFE,5AFE,7AFE..AT19#..MTM

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..MTM

 1
27312 - PLATE, RETAINER
27312-70200

4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..MTM

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..MTM

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

4AFE,5AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19#

 1
90099-10140

2C..CT190..MTM;4AFE,5AFE,7AFE,2C,3SFE..AT19#,CT195,ST195

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

4AFE,5AFE,7AFE..AT19#..MTM

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-15171

4AFE,5AFE,7AFE..AT19#..MTM

 1
27359-15170

4AFE,5AFE,7AFE..AT19#..MTM

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..MTM

 1
27371 - BRUSH, ALTERNATOR
27371-70300

4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..MTM

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..MTM

 2
27387 - INSULATOR, TERMINAL
27387-70170

4AFE,5AFE,7AFE..AT19#..MTM

 1
27389 - INSULATOR, TERMINAL
27389-63020

4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..MTM

 4
27411 - PULLEY, ALTERNATOR
27411-16180

4AFE,5AFE,7AFE..AT19#..MTM

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

2C..CT190..MTM;4AFE,5AFE,7AFE,2C,3SFE..AT19#,CT195,ST195

 1
27443-63020

4AFE,5AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19#

 1
27446A - CLAMP
27446-15170

4AFE,5AFE,7AFE..AT19#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-74040

4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#

 1
Common parts
90099-00197
90099-00268
90099-04966
90099-05119
90099-05171
90099-05172
90105-10336
90119-08875
90179-06158
90179-10181
93319-14025
