AT191-CEPSK (1994)

Toyota Carina Ff

Production Aug 1994 - Aug 1996
Engine 7AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )AT19#..ATM

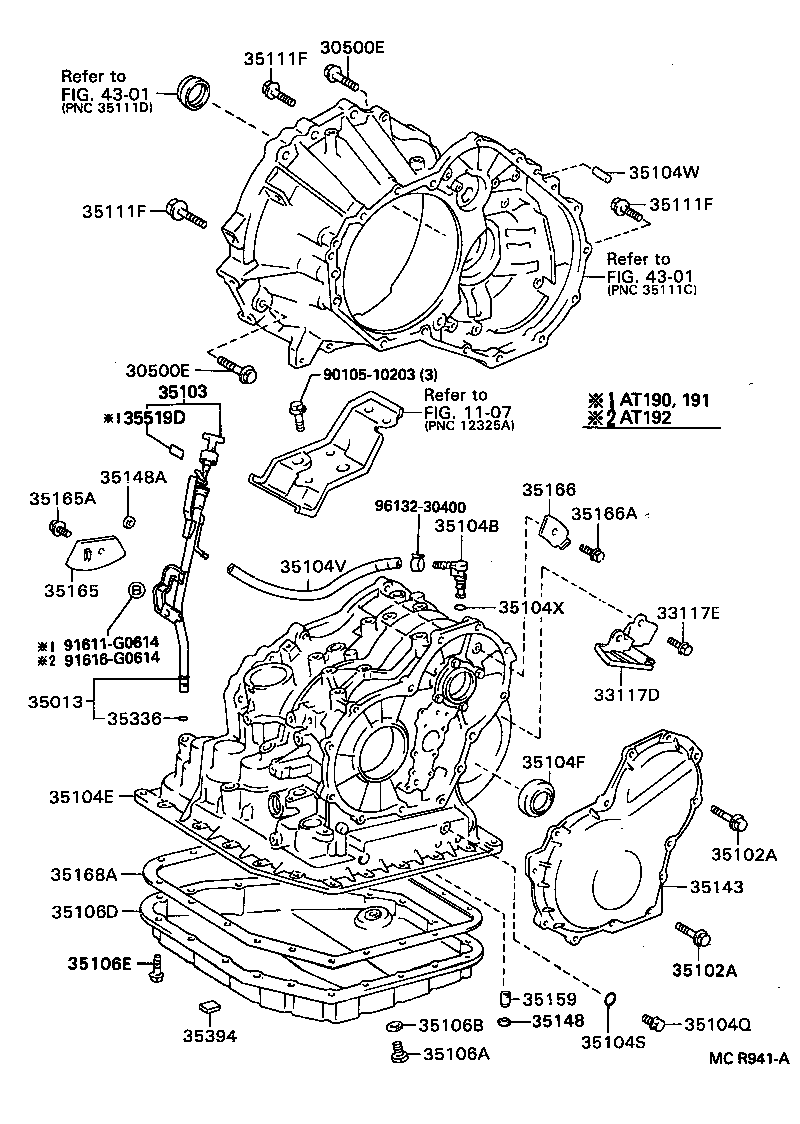

Click highlighted areas on diagram

A245E

diagram 1107 30500E 30500E 33117D 33117E 35013 35102A 35102A 35103 35104B 35104E 35104F 35104Q 35104S 35104V 35104W 35104X 35106A 35106B 35106D 35106E 35111F 35111F 35111F 35143 35148 35148A 35159 35165 35165A 35166 35166A 35168A 35336 35394 35519D 4301 4301 9010510203 91611G0614 91616G0614 9613230400
Part # Description Qty Price
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90105-10077

AT19#,CT190,ST19#..ATM

*10−1.25PX43−26

 1
91619-61245

AT19#..ATM

*12−1.25PX45−30

 2
90119-12168

AT19#..ATM

*12−1.25PX55−30

 1
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90105-10077

AT19#,CT190,ST19#..ATM

*10−1.25PX43−26

 1
91619-61245

AT19#..ATM

*12−1.25PX45−30

 2
90119-12168

AT19#..ATM

*12−1.25PX55−30

 1
33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE
33117-12030

AT19#,CT190,ST190..ATM

 1
33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
90105-08040

AT19#,CT190,ST19#..ATM

 2
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-20650

AT19#..ATM

 1
35013-20550

AT19#..ATM

 1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-06198

AT19#..ATM

*6−1.00PX32−32

 2
91511-80625

AT19#..ATM

*6−1.0PX25−25

 11
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-06198

AT19#..ATM

*6−1.00PX32−32

 2
91511-80625

AT19#..ATM

*6−1.0PX25−25

 11
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-20280

AT19#..ATM

 1
35103-20360

AT190,191..ATM

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03132

AT19#..ATM

 1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104-12230

AT19#..ATM

 1
35104-20100

AT190,191..ATM

 1
35104F - SEAL, OIL (FOR TRANSAXLE CASE)
90311-34013

AT19#..ATM

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

AT19#,CT190,ST190..ATM

 1
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

AT19#,CT190,ST190..ATM

 1
35104V - HOSE (FOR BREATHER PLUG)
90447-11017

AT19#..ATM

 1
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10021

AT19#..ATM

 2
35104X - RING, O (FOR BREATHER PLUG)
90301-06010

AT19#..ATM

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

AT19#,CT190,ST190..ATM

 1
90341-10011

AT19#..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

AT19#,CT190,ST190..ATM

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-12090

AT19#..ATM

 1
35106-12120

AT19#..ATM

 1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173

AT19#,CT190,ST190..ATM

 18
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-08071

AT19#..ATM

*8−1.25PX30−25

 14
90105-08288

AT19#..ATM

*8−1.28PX30−25

 3
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-08071

AT19#..ATM

*8−1.25PX30−25

 14
90105-08288

AT19#..ATM

*8−1.28PX30−25

 3
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-08071

AT19#..ATM

*8−1.25PX30−25

 14
90105-08288

AT19#..ATM

*8−1.28PX30−25

 3
35143 - COVER, TRANSMISSION CASE, REAR
35143-12030

AT19#..ATM

 1
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

AT19#,CT190,ST190..ATM

 1
35148A - GASKET, GOVERNOR APPLY, NO.2
35148-12010

AT19#,ST195..ATM

 1
35159 - GASKET, BRAKE DRUM
35159-20010

AT19#,CT190,ST190..ATM

 1
35165 - PLATE, TRANSMISSION CASE, NO.1
35165-12010

AT19#..ATM

 1
35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1)
90105-06049

AT19#,CT190,ST190..ATM

 1
35166 - PLATE, TRANSMISSION CASE, NO.3
35166-12020

AT19#..ATM

 1
35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3)
90105-06049

AT19#,CT190,ST190..ATM

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-12030

AT19#..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

AT19#,CT190,ST19#..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

AT19#..ATM

 4
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-20020

AT190,191..ATM

 1
Common parts
90105-10203
91611-G0614
91616-G0614
96132-30400
Linked diagrams
1107
4301
