AT191-CEPMK (1994)

Toyota Carina Ff

Production Aug 1994 - Aug 1996
Engine 7AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )4AFE,7AFE

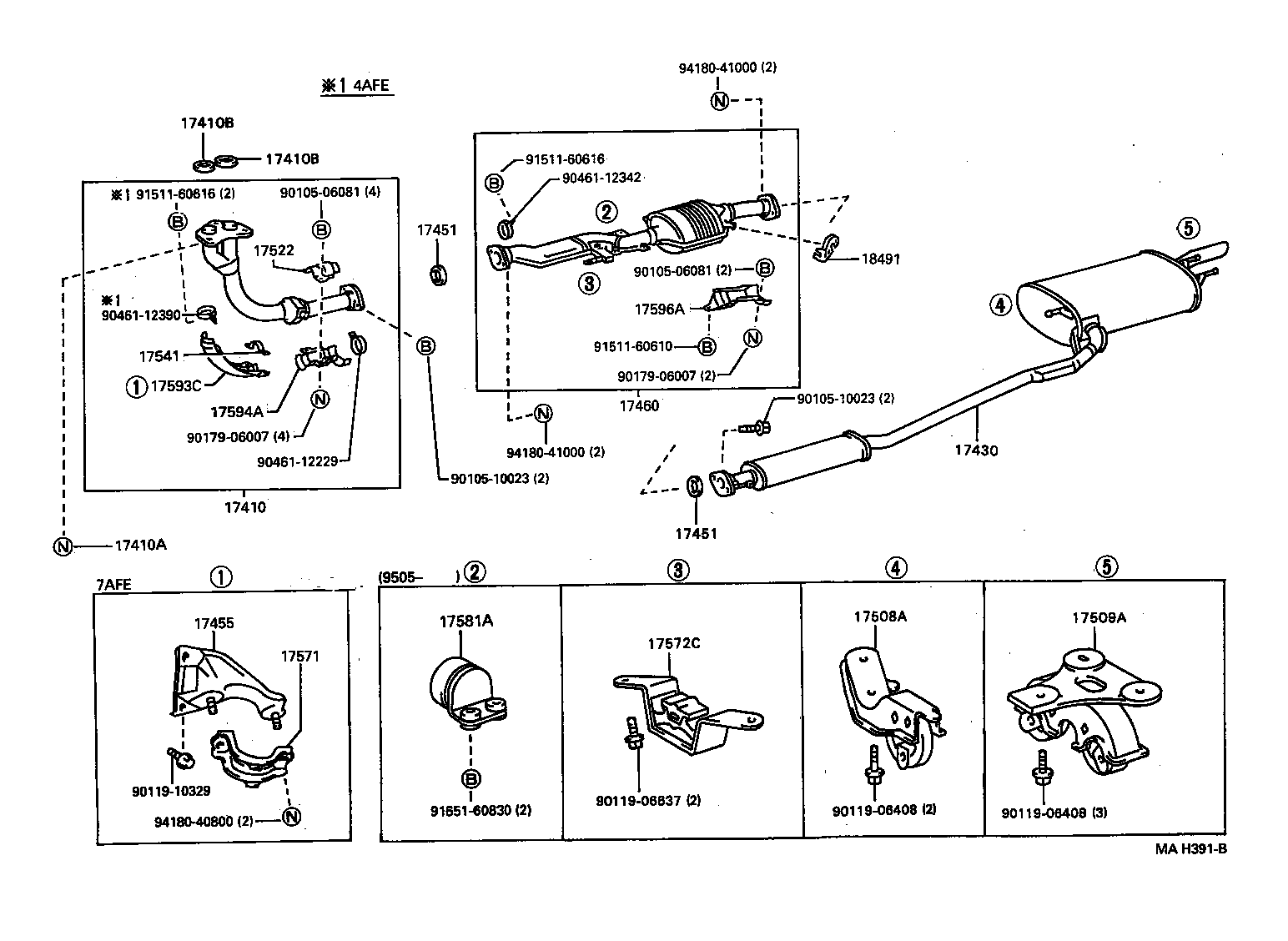

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17430 17451 17451 17455 17460 17508A 17509A 17522 17541 17571 17572C 17581A 17593C 17594A 17596A 18491 9010506081 9010506081 9010510023 9010510023 9011906408 9011906408 9011906637 9011910329 9017906007 9017906007 9046112229 9046112342 9046112390 9151160610 9151160616 9151160616 9165160830 9418040800 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-1A190

7AFE..AT191

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE,7AFE,3SFE..AT190,191,ST195

 3
17410B - GASKET, EXHAUST PIPE
90917-06064

4AFE,7AFE..AT190,191

 2
17410B - GASKET, EXHAUST PIPE
90917-06064

4AFE,7AFE..AT190,191

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-1A500

4AFE,7AFE..AT190,191

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

4AFE,7AFE..AT190,191

 2
17451 - GASKET, EXHAUST PIPE
90917-06046

4AFE,7AFE..AT190,191

 2
17455 - BRACKET, EXHAUST PIPE
17455-16030

7AFE..AT191

 1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-16082

4AFE,7AFE..AT190,191

 1
17460-16081

4AFE,7AFE..AT190,191

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74030

4AFE,5AFE,7AFE,2C,4SFE..AT19#,CT190,ST190

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74110

4AFE,5AFE,7AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19#

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-16310

7AFE..AT191

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-74430

4AFE,5AFE,7AFE..AT19#

 1
17581A - DAMPER, EXHAUST PIPE
17581-16020

4AFE,7AFE..AT190,191

 1
17596A - PROTECTOR, EXHAUST PIPE, LOWER NO.4
17596-74060

4AFE,7AFE..AT190,191

 1
18491 - FLANGE, THERMOSENSOR INLET
18491-74020

4AFE,5AFE,7AFE..AT19#

 1
Common parts
90105-06081
90105-10023
90119-06408
90119-06637
90119-10329
90179-06007
90461-12229
90461-12342
90461-12390
91511-60610
91511-60616
91651-60830
94180-40800
94180-41000
