AT190-CEPSK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

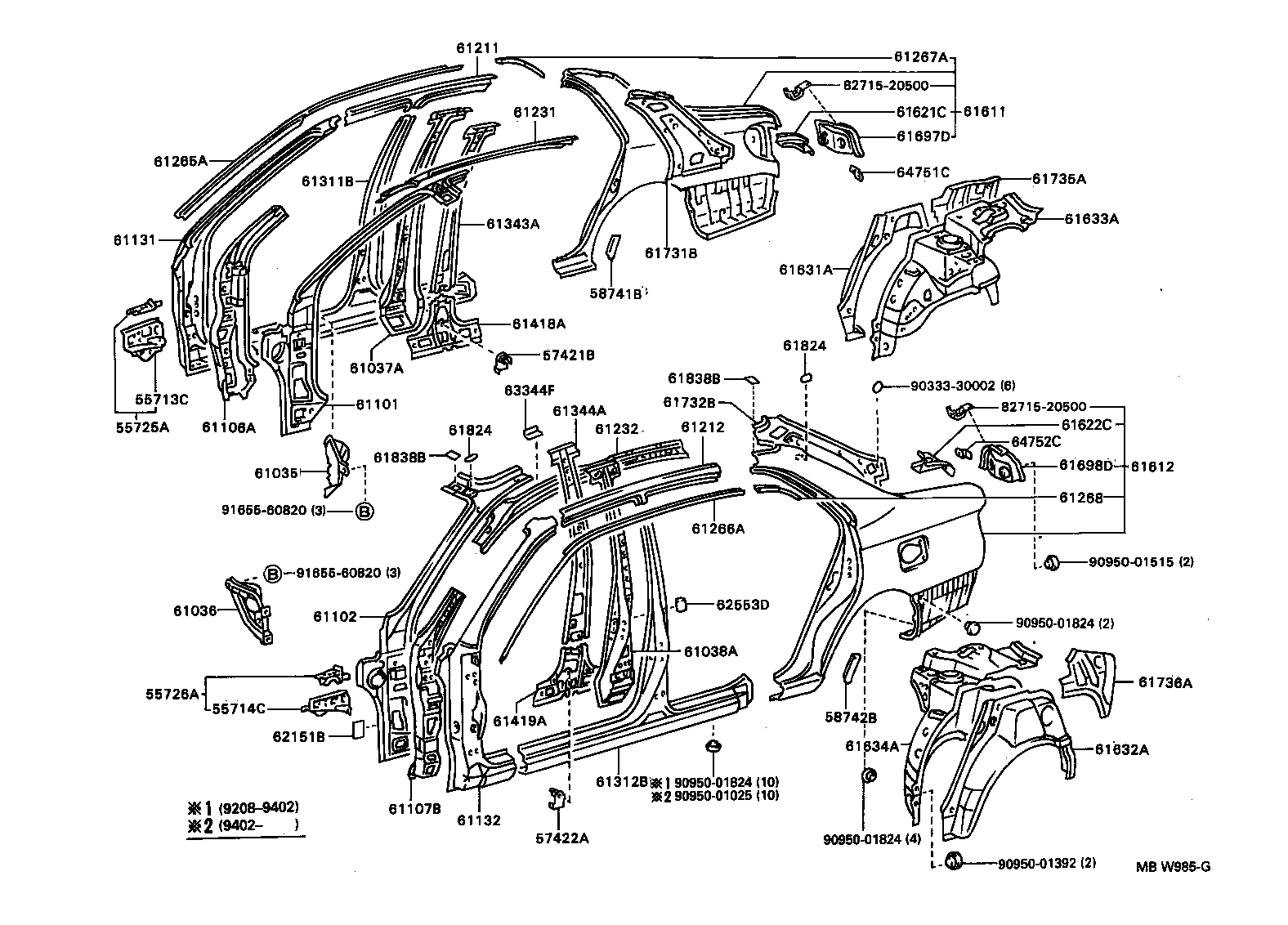

Click highlighted areas on diagram

diagram 55713C 55714C 55725A 55726A 57421B 57422A 58741B 58742B 61035 61036 61037A 61038A 61101 61102 61106A 61107B 61131 61132 61211 61212 61231 61232 61265A 61266A 61267A 61268 61311B 61312B 61343A 61344A 61418A 61419A 61611 61612 61621C 61622C 61631A 61632A 61633A 61634A 61697D 61698D 61731B 61732B 61735A 61736A 61824 61824 61838B 61838B 62151B 62553D 63344F 64751C 64752C 8271520500 8271520500 9033330002 9095001025 9095001392 9095001515 9095001824 9095001824 9095001824 9165560820 9165560820
Part # Description Qty Price
55713C - PANEL, COWL TOP SIDE, RH
55713-20130

AT19#,CT19#,ST19#

 1
55714C - PANEL, COWL TOP SIDE, LH
55714-20140

AT19#,CT19#,ST19#

 1
55725A - REINFORCEMENT, HOOD HINGE MOUNTING, RH
55725-20901

AT19#,CT19#,ST19#

 1
55726A - REINFORCEMENT, HOOD HINGE MOUNTING, LH
55726-20901

AT19#,CT19#,ST19#

 1
57421B - PLATE, FLOOR SIDE RAIL, RH
57421-20040

AT19#,CT19#,ST19#

 1
57422A - PLATE, FLOOR SIDE RAIL, LH
57421-20040

AT19#,CT19#,ST19#

 1
58741B - PROTECTOR, QUARTER PANEL, RH
58741-20130

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
58742B - PROTECTOR, QUARTER PANEL, LH
58742-20120

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
55774-20090

AT19#,CT19#,ST19#

 1
61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
55775-20070

AT19#,CT19#,ST19#

 1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-20020

AT19#,CT19#,ST19#

 1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-20020

AT19#,CT19#,ST19#

 1
61101 - PANEL SUB-ASSY, COWL SIDE, RH
61101-20903

AT19#,CT19#,ST19#

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
61102-20903

AT19#,CT19#,ST19#

 1
61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61106-20220

AT19#,CT19#,ST19#

 1
61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61107-20210

AT19#,CT19#,ST19#

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-20440

AT190..S;AT191,CT19#,ST19#..SE,SEEXT,SL

 1
61131-20430

AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-20380

AT19#,CT19#,ST19#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-20250

AT19#,CT19#,ST19#

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-20250

AT19#,CT19#,ST19#

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-20380

AT19#,CT19#,ST19#

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-20370

AT19#,CT19#,ST19#

 1
61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH
61265-20080

AT19#,CT19#,ST19#

 1
61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH
61266-20080

AT19#,CT19#,ST19#

 1
61267A - CHANNEL, ROOF DRIP SIDE, REAR RH
61267-20080

AT19#,CT19#,ST19#

 1
61268 - CHANNEL, ROOF DRIP SIDE, REAR LH
61268-20080

AT19#,CT19#,ST19#

 1
61311B - PILLAR, CENTER BODY, OUTER RH
61311-20250

AT19#,CT19#,ST19#

 1
61312B - PILLAR, CENTER BODY, OUTER LH
61312-20320

AT19#,CT19#,ST19#

 1
61343A - PILLAR, CENTER BODY, INNER RH
61343-20120

AT19#,CT19#,ST19#

 1
61344A - PILLAR, CENTER BODY, INNER LH
61344-20120

AT19#,CT19#,ST19#

 1
61418A - REINFORCEMENT, ROCKER PANEL, RH
61418-20130

AT19#,CT19#,ST19#

 1
61419A - REINFORCEMENT, ROCKER PANEL, LH
61419-20110

AT19#,CT19#,ST19#

 1
61611 - PANEL, QUARTER, RH
61601-2B750

AT19#,CT19#,ST19#

 1
61612 - PANEL, QUARTER, LH
61602-2D200

AT19#,CT19#,ST19#

 1
61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61621-20190

AT19#,CT19#,ST19#

 1
61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61622-20190

AT19#,CT19#,ST19#

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-20270

AT19#,CT19#,ST19#

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-20250

AT19#,CT19#,ST19#

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61603-2B903

AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI

 1
61603-2B904

AT190..S;AT191,CT19#,ST19#..SE,SEEXT,SL

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61604-2B903

AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI

 1
61604-2B904

AT190..S;AT191,CT19#,ST19#..SE,SEEXT,SL

 1
61697D - HOUSING, QUARTER PANEL END, RH
61697-20050

AT19#,CT19#,ST19#

 1
61698D - HOUSING, QUARTER PANEL END, LH
61698-20050

AT19#,CT19#,ST19#

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-20290

AT19#,CT19#,ST19#

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-20290

AT19#,CT19#,ST19#

 1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-20200

AT19#,CT19#,ST19#

 1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-20190

AT19#,CT19#,ST19#

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-20120

AT19#,CT19#,ST19#

 4
61824 - PLATE, NOISE CONTROL, NO.1
61824-20120

AT19#,CT19#,ST19#

 4
61838B - PLATE, NOISE CONTROL, NO.5
61838-20050

AT19#,CT19#,ST19#

 4
61838B - PLATE, NOISE CONTROL, NO.5
61838-20050

AT19#,CT19#,ST19#

 4
62151B - PAD, COWL SIDE SILENCER
62939-32020

AT19#,CT19#,ST19#

 2
62553D - PAD, PILLAR, NO.3
62553-20040

AT19#,CT19#,ST19#

 2
63344F - PAD, ROOF SILENCER, NO.4
63344-20100

AT19#,CT19#,ST19#

 4
64751C - BRACKET, LUGGAGE COMPARTMENT COVER, NO.1, RH
64751-20030

AT19#,CT19#,ST19#

 1
64752C - BRACKET, LUGGAGE COMPARTMENT COVER, NO.1, LH
64751-20030

AT19#,CT19#,ST19#

 1
Common parts
82715-20500
90333-30002
90950-01025
90950-01392
90950-01515
90950-01824
91655-60820
