AT190-CEPSK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

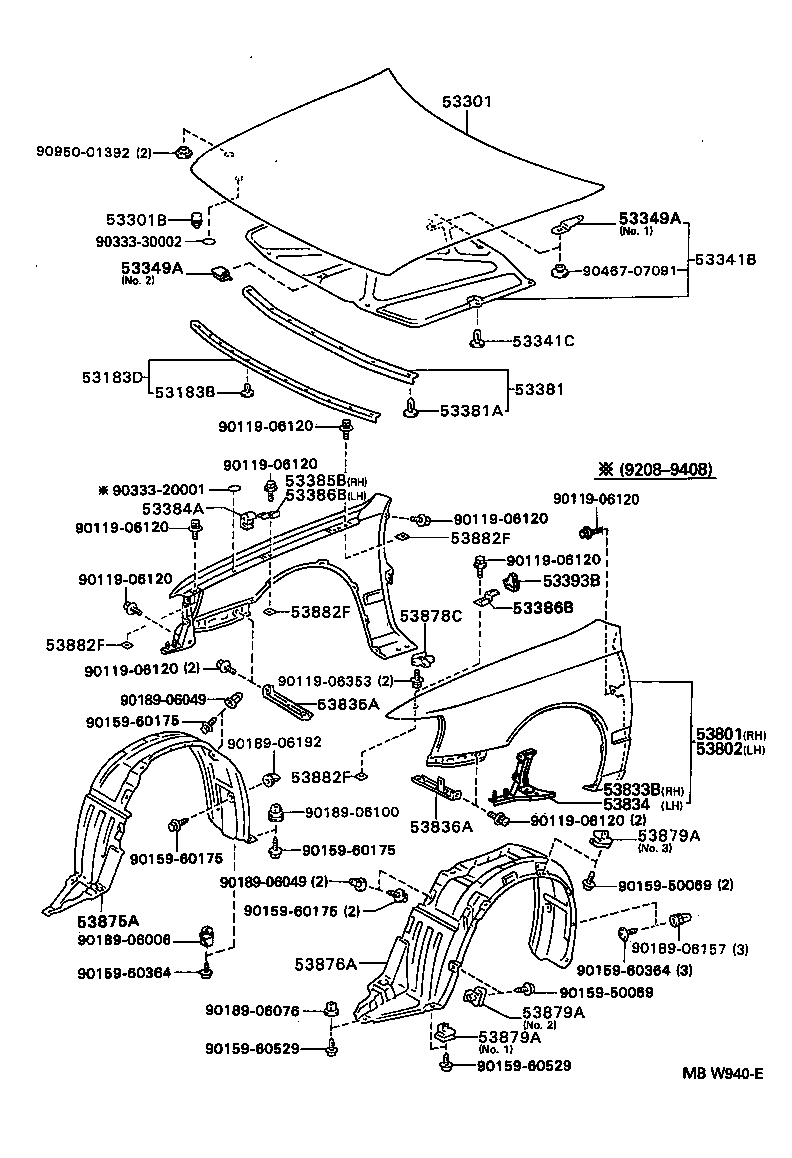

Click highlighted areas on diagram

diagram 53183B 53183D 53301 53301B 53341B 53341C 53349A 53349A 53381 53381A 53384A 53385B 53386B 53386B 53393B 53801 53802 53833B 53834 53835A 53836A 53875A 53876A 53878C 53879A 53879A 53879A 53882F 53882F 53882F 53882F 9011906120 9011906120 9011906120 9011906120 9011906120 9011906120 9011906120 9011906120 9011906120 9011906353 9015950069 9015950069 9015960175 9015960175 9015960175 9015960175 9015960364 9015960364 9015960529 9015960529 9018906006 9018906049 9018906049 9018906076 9018906100 9018906157 9018906192 9033320001 9033330002 9046707091 9095001392
Part # Description Qty Price
53183B - CLIP(FOR HEADLAMP COVER SEAL)
90467-06084

AT19#,CT19#,ST19#

 11
53183D - SEAL, HEADLAMP COVER TO HOOD
53183-20090

AT19#,CT19#,ST19#

 1
53301 - HOOD SUB-ASSY
53301-20460

AT19#,CT19#,ST19#

 1
53301B - CUSHION, HOOD BUMPER
90541-15111

AT19#,CT19#,ST19#

 2
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-20130

AT19#,CT19#,ST19#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AT19#,CT19#,ST19#

 7
53384A - BUMPER, FENDER TO HOOD
53384-20050

AT19#,CT19#,ST19#

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-20020

AT19#,CT19#,ST19#

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-20020

AT19#,ST19#

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-20020

AT19#,ST19#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-2B300

AT19#,CT19#,ST19#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53801-2B290

AT19#,CT19#,ST19#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-2B300

AT19#,CT19#,ST19#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802-2B290

AT19#,CT19#,ST19#

 1
53833B - PANEL, FRONT FENDER SIDE, RH
53083-20020

AT19#,CT19#,ST19#

 1
53834 - PANEL, FRONT FENDER SIDE, LOWER LH
53084-20020

AT19#,CT19#,ST19#

 1
53835A - BRACE, FRONT FENDER TO APRON, RH
53835-20070

AT19#,CT19#,ST19#

 1
53836A - BRACE, FRONT FENDER TO APRON, LH
53804-20020

AT19#,CT19#,ST19#

 1
53875A - LINER, FRONT FENDER, RH
53875-20250

AT19#,CT19#,ST19#

 1
53876A - LINER, FRONT FENDER, LH
53876-20260

AT19#,CT19#,ST19#

 1
53878C - SPACER, FRONT FENDER
53878-20030

AT19#,CT19#,ST19#

 2
53879A - RETAINER, FRONT FENDER LINER
53879-16010

AT19#,CT19#,ST19#

NO.1

 2
53879-20020

AT19#,CT19#,ST19#

NO.2

 2
53879-14010

AT19#,CT19#,ST19#

NO.3

 4
53879A - RETAINER, FRONT FENDER LINER
53879-16010

AT19#,CT19#,ST19#

NO.1

 2
53879-20020

AT19#,CT19#,ST19#

NO.2

 2
53879-14010

AT19#,CT19#,ST19#

NO.3

 4
53879A - RETAINER, FRONT FENDER LINER
53879-16010

AT19#,CT19#,ST19#

NO.1

 2
53879-20020

AT19#,CT19#,ST19#

NO.2

 2
53879-14010

AT19#,CT19#,ST19#

NO.3

 4
53882F - SEAL, FRONT FENDER
53882-16030

AT19#,CT19#,ST19#

 6
53882F - SEAL, FRONT FENDER
53882-16030

AT19#,CT19#,ST19#

 6
53882F - SEAL, FRONT FENDER
53882-16030

AT19#,CT19#,ST19#

 6
53882F - SEAL, FRONT FENDER
53882-16030

AT19#,CT19#,ST19#

 6
Common parts
90119-06120
90119-06353
90159-50069
90159-60175
90159-60364
90159-60529
90189-06006
90189-06049
90189-06076
90189-06100
90189-06157
90189-06192
90333-20001
90333-30002
90467-07091
90950-01392
