AT190-CEPSK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208-9408)AT19#,CT190,ST190

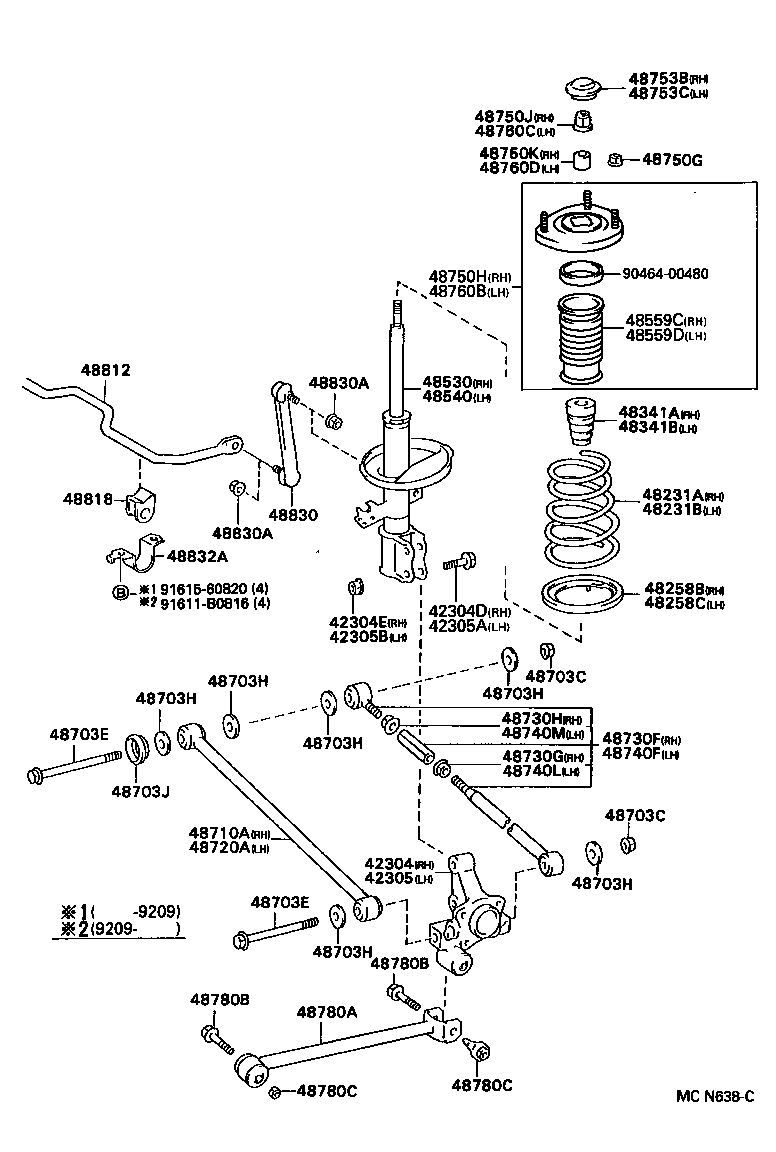

Click highlighted areas on diagram

diagram 42304 42304D 42304E 42305 42305A 42305B 48231A 48231B 48258B 48258C 48341A 48341B 48530 48540 48559C 48559D 48703C 48703C 48703E 48703E 48703H 48703H 48703H 48703H 48703H 48703H 48703J 48710A 48720A 48730F 48730G 48730H 48740F 48740L 48740M 48750G 48750H 48750J 48750K 48753B 48753C 48760B 48760C 48760D 48780A 48780B 48780B 48780C 48780C 48812 48818 48830 48830A 48830A 48832A 9046400480 91611B0816 9161560820
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-20160

CT190;AT19#,ST190..SE,SEEXT,SX,SXI

ｱﾘ(ABS)

 1
42304-20140

CT190;AT19#,ST190..SE,SEEXT,SX,SXI

 1
42304D - BOLT (FOR REAR AXLE CARRIER RH)
90105-15001

AT19#,CT19#,ST19#

 2
42304E - NUT (FOR REAR AXLE CARRIER RH)
90179-15001

AT19#,CT19#,ST19#

 2
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-20160

CT190;AT19#,ST190..SE,SEEXT,SX,SXI

ｱﾘ(ABS)

 1
42305-20140

CT190;AT19#,ST190..SE,SEEXT,SX,SXI

 1
42305A - BOLT (FOR REAR AXLE CARRIER LH)
90105-15001

AT19#,CT19#,ST19#

 2
42305B - NUT (FOR REAR AXLE CARRIER LH)
90179-15001

AT19#,CT19#,ST19#

 2
48231A - SPRING, COIL, REAR RH
48231-2D820

CT195;AT19#..SX,SXI

 1
48231B - SPRING, COIL, REAR LH
48231-2D820

CT195;AT19#..SX,SXI

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-32010

AT19#,CT19#,ST19#

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-32010

AT19#,CT19#,ST19#

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-20190

AT19#..SEEXT,SG,SGI,SX,SXI

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-20190

AT19#..SEEXT,SG,SGI,SX,SXI

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-2B210

AT19#

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-2B210

AT19#

 1
48559C - COVER, REAR SHOCK ABSORBER DUST, RH NO.1
48559-20060

AT19#,CT19#,ST19#

 1
48559D - COVER, REAR SHOCK ABSORBER DUST, LH NO.1
48559-20060

AT19#,CT19#,ST19#

 1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019

AT19#,CT190,ST190

 4
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019

AT19#,CT190,ST190

 4
48703E - BOLT(FOR REAR SUSPENSION ARM)
90901-19001

AT19#,CT190,ST190

*14−1.50PX260−26,NO.2

 2
90901-09001

AT19#,CT190,ST190

*14−1.50PX260−26,NO.1

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90901-19001

AT19#,CT190,ST190

*14−1.50PX260−26,NO.2

 2
90901-09001

AT19#,CT190,ST190

*14−1.50PX260−26,NO.1

 2
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AT19#,CT190,ST190

 6
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AT19#,CT190,ST190

 6
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AT19#,CT190,ST190

 6
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AT19#,CT190,ST190

 6
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AT19#,CT190,ST190

 6
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AT19#,CT190,ST190

 6
48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM)
48715-32010

AT19#,CT190,ST190

 2
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-20280

AT19#,CT190,ST190

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-20280

AT19#,CT190,ST190

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-20160

AT19#,CT190,ST190..SE,SEEXT,SG,SGI,SX,SXI

 1
48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)
90179-16022

AT19#,CT190,ST190

 1
48730H - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)
90179-16021

AT19#,CT190,ST190

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48740-20050

AT19#,CT190,ST190..SE,SEEXT,SG,SGI,SX,SXI

 1
48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)
90179-16022

AT19#,CT190,ST190

 1
48740M - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)
90179-16021

AT19#,CT190,ST190

 1
48750G - NUT(FOR REAR SUSPENSION SUPPORT)
90179-08122

AT19#,CT19#,ST19#

 6
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-20140

AT19#,CT19#,ST19#

 1
48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90179-14015

AT19#,CT19#,ST19#

 1
48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90387-15012

AT19#,CT19#,ST19#

 1
48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753-20040

AT19#,CT19#,ST19#

 1
48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48753-20040

AT19#,CT19#,ST19#

 1
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-20140

AT19#,CT19#,ST19#

 1
48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90179-14015

AT19#,CT19#,ST19#

 1
48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90387-15012

AT19#,CT19#,ST19#

 1
48780A - ROD ASSY, STRUT, REAR
48780-20080

AT19#,CT190,ST190

 2
48780B - BOLT(FOR STRUT ROD)
90119-12131

AT19#,CT19#,ST19#

 4
48780B - BOLT(FOR STRUT ROD)
90119-12131

AT19#,CT19#,ST19#

 4
48780C - NUT(FOR STRUT ROD)
90179-12062

AT19#,CT19#,ST19#

NO.2

 2
90179-12114

AT19#,CT19#,ST19#

NO.1

 2
48780C - NUT(FOR STRUT ROD)
90179-12062

AT19#,CT19#,ST19#

NO.2

 2
90179-12114

AT19#,CT19#,ST19#

NO.1

 2
Common parts
90464-00480
91611-B0816
91615-60820
