AT190-CEPNK (1992)
Toyota Carina Ff
ILLUST NO. 1 OF 9(9208- )

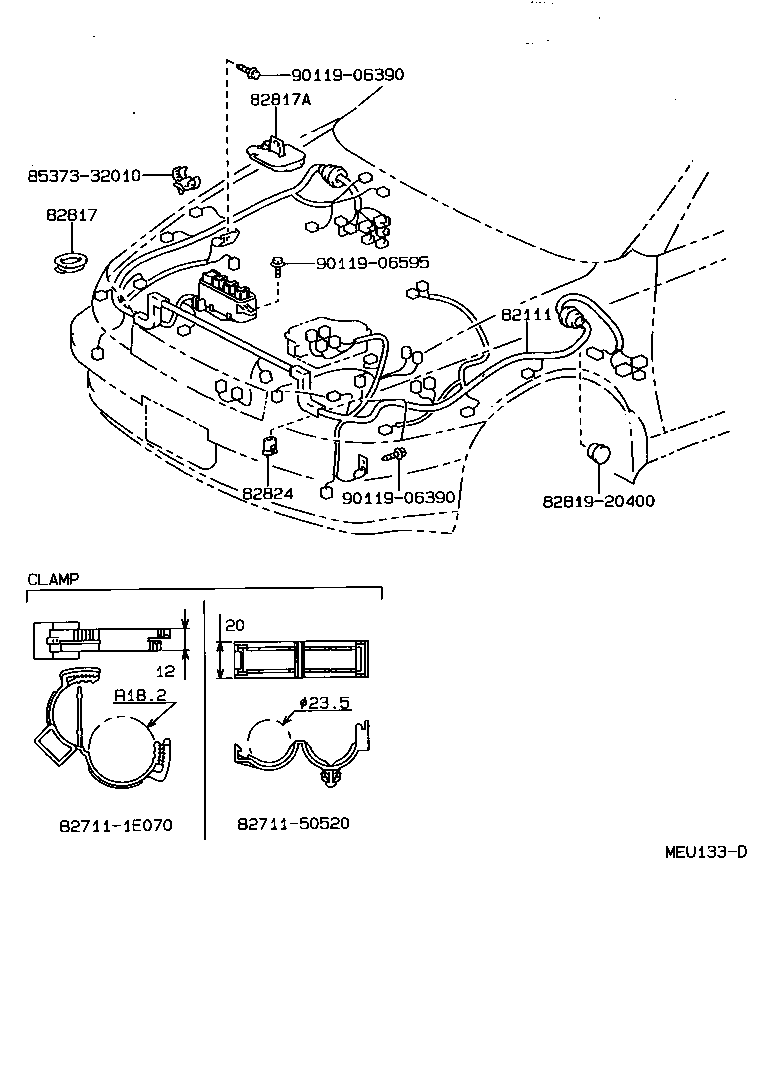

ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2G520 |
AT192..MTM..SG;AT19#..SGI,SX,SXI |
1 | ||
| 82111-2G521 |
AT192..MTM..SG;AT19#..SGI,SX,SXI |
1 | ||
| 82111-2G531 |
AT190..SGI;AT192..MTM..SG ｱﾘ(*66) |
1 | ||
| 82111-2G530 |
AT190..SGI;AT192..MTM..SG ｱﾘ(*66) |
1 | ||
| 82111-2G532 |
AT190,191..SGI ｱﾘ(*66) |
1 | ||
| 82111-2G532 |
AT190,191..SEEXT,SGI ｱﾘ(*66) |
1 | ||
| 82111-2H630 |
AT19#..SGI,SL,SX,SXI |
1 | ||
| 82111-2G522 |
AT190,191..SGI ｱﾘ(*FWD & *RWD) |
1 | ||
| 82111-2G533 |
AT190,191..SGI ｱﾘ(*66) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
AT19#,CT19#,ST19# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-2D090 |
AT19#,CT19#,ST19# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 82711-50520 | ||||
| 82819-20400 | ||||
| 85373-32010 | ||||
| 90119-06390 | ||||
| 90119-06595 | ||||
ILLUST NO. 3 OF 9(9208- )

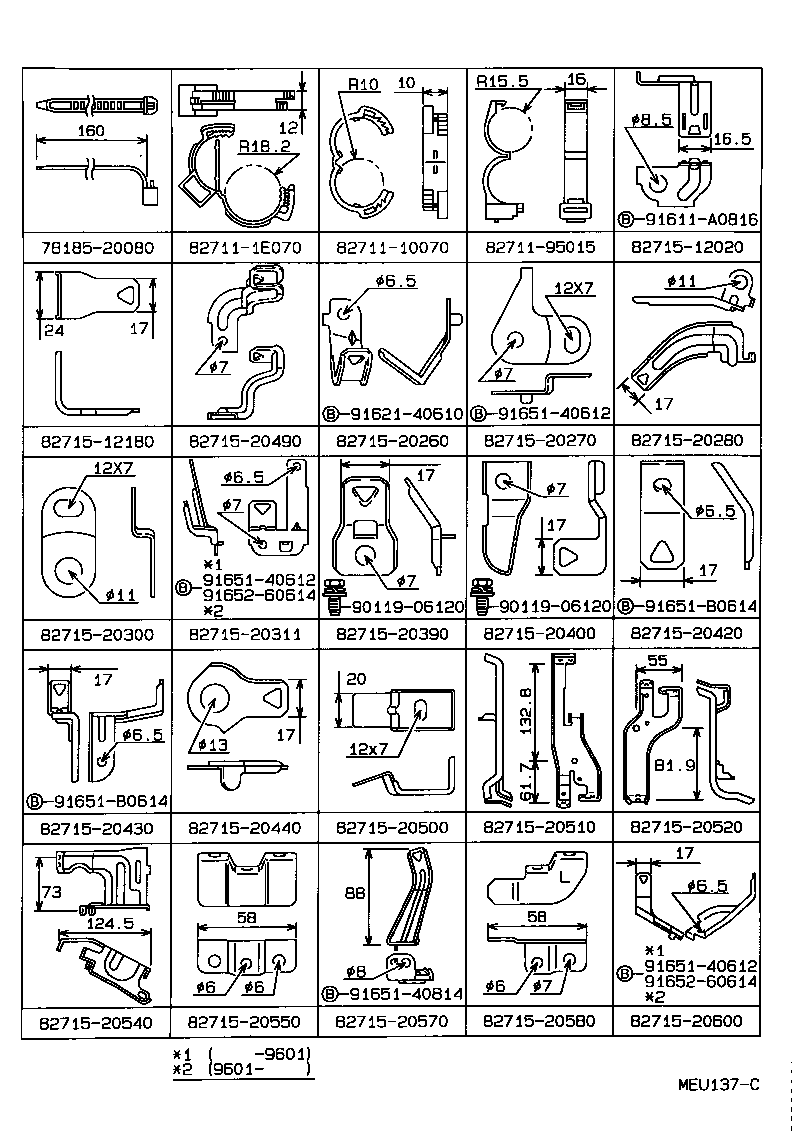

ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 78185-20080 | ||||
| 82711-10070 | ||||
| 82711-1E070 | ||||
| 82711-95015 | ||||
| 82715-12020 | ||||
| 82715-12180 | ||||
| 82715-20260 | ||||
| 82715-20270 | ||||
| 82715-20280 | ||||
| 82715-20300 | ||||
| 82715-20311 | ||||
| 82715-20390 | ||||
| 82715-20400 | ||||
| 82715-20420 | ||||
| 82715-20430 | ||||
| 82715-20440 | ||||
| 82715-20490 | ||||
| 82715-20500 | ||||
| 82715-20510 | ||||
| 82715-20520 | ||||
| 82715-20540 | ||||
| 82715-20550 | ||||
| 82715-20570 | ||||
| 82715-20580 | ||||
| 82715-20600 | ||||
| 90119-06120 | ||||
| 91611-A0816 | ||||
| 91621-40610 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91651-B0614 | ||||
| 91652-60614 | ||||

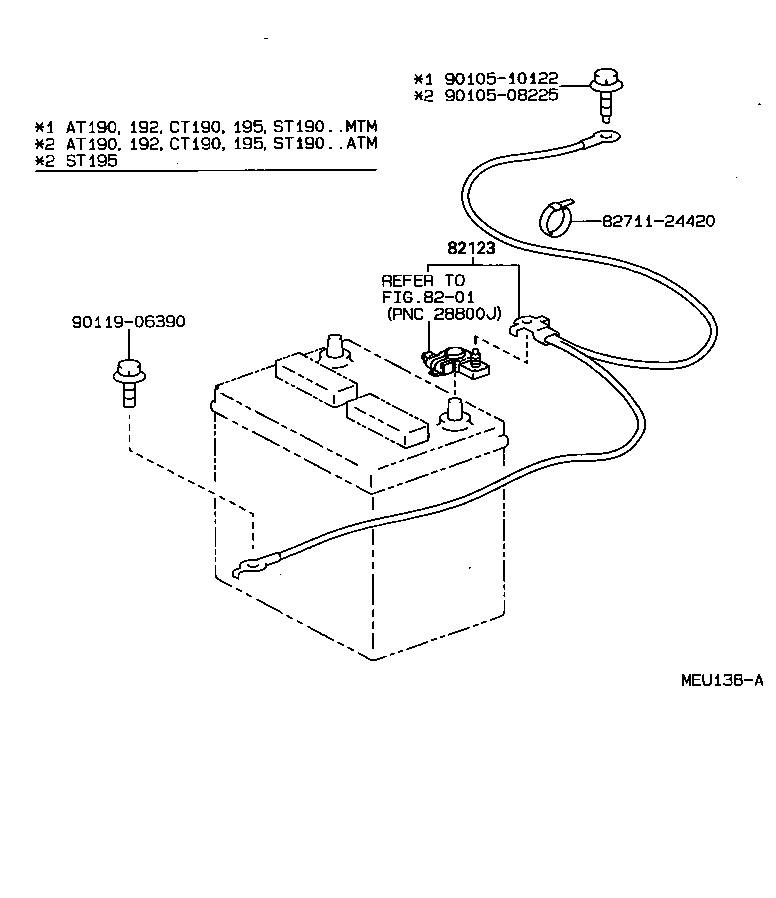

ILLUST NO. 4 OF 9(9208- )
BATTERY CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20200 |
ST195;AT19#,ST190..ATM |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90105-08225 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| Linked diagrams | ||||
| 8201 | ||||

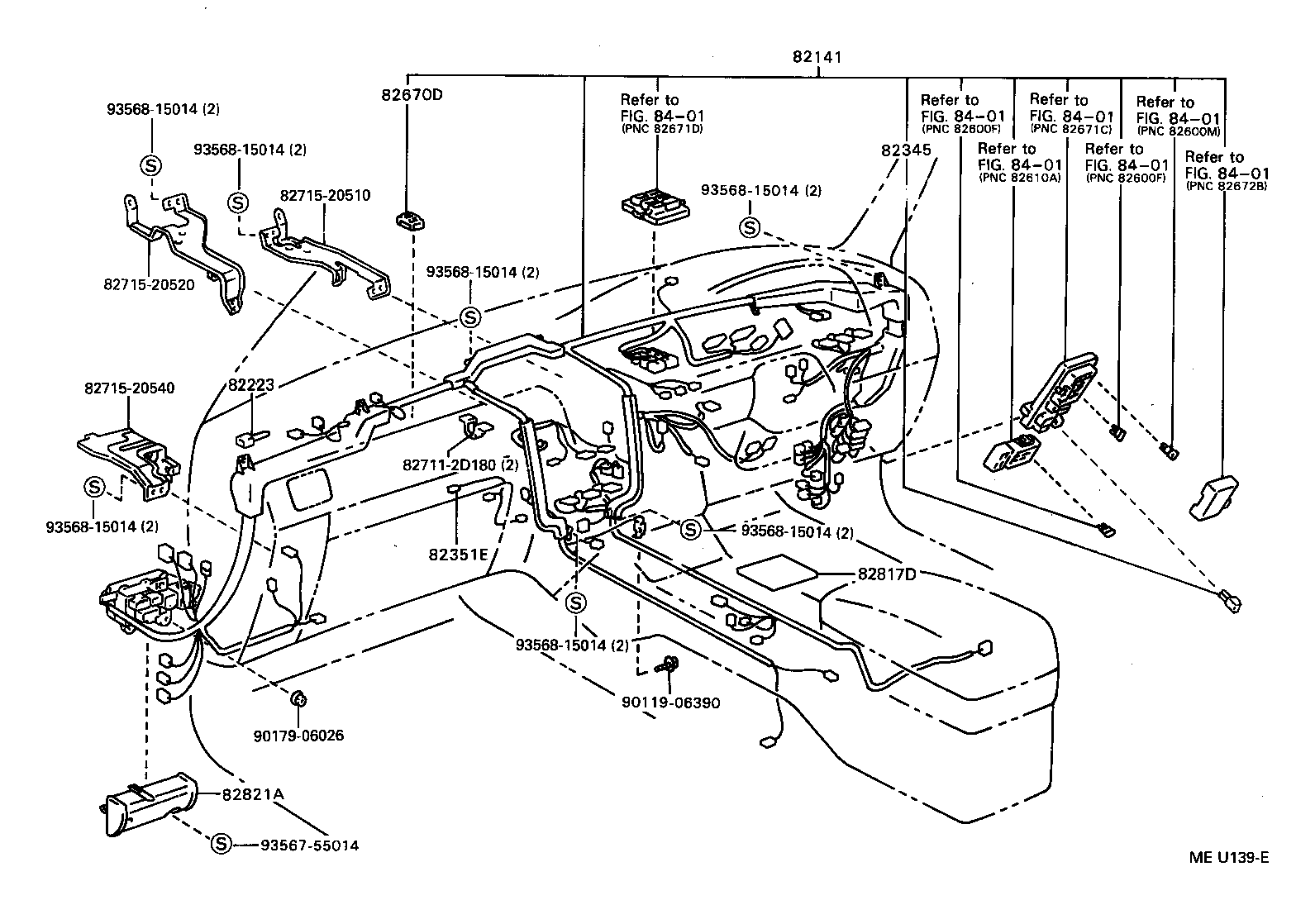

ILLUST NO. 5 OF 9(9208- )
INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-2B460 |
AT192..MTM..SG;AT190,CT19#,ST195..SG,SGI |
1 | ||
| 82141-2B610 |
AT190..S ｱﾘ(ｺﾝﾊﾟｽ) |
1 | ||
| 82141-2B590 |
AT190..S ｱﾘ(CD & 6 ｽﾋﾟ-ｶ) |
1 | ||
| 82141-2B620 |
AT190..S ｱﾘ(ｺﾝﾊﾟｽ & CD & 6 ｽﾋﾟ-ｶ) |
1 | ||
| 82141-2B580 |
AT190..S |
1 | ||
| 82141-2B621 |
AT190..S ｱﾘ(ｺﾝﾊﾟｽ & CD & 6 ｽﾋﾟ-ｶ) |
1 | ||
| 82141-2B611 |
AT190..S ｱﾘ(ｺﾝﾊﾟｽ) |
1 | ||
| 82141-2B581 |
AT190..S |
1 | ||
| 82141-2B591 |
AT190..S ｱﾘ(CD & 6 ｽﾋﾟ-ｶ) |
1 | ||
| 82141-2B461 |
AT192..MTM..SG;AT190,CT19#,ST195..SG,SGI |
1 | ||
| 82141-2B581 |
AT190..S ｱﾘ(*66) OR ｱﾘ(*FRC) OR ｱﾘ(*57) OR ｱﾘ(*SH) |
1 | ||
| 82141-2B611 |
AT190..S ｱﾘ(ｺﾝﾊﾟｽ) |
1 | ||
| 82141-2B582 |
AT190..S ｱﾘ(*66) OR ｱﾘ(*57) |
1 | ||
| 82141-2B591 |
AT190..S ｱﾘ(CD & 6 ｽﾋﾟ-ｶ) |
1 | ||
| 82141-2B870 |
AT190..S |
1 | ||
| 82141-2B621 |
AT190..S ｱﾘ(CD & 6 ｽﾋﾟ-ｶ & ｺﾝﾊﾟｽ) |
1 | ||
| 82141-2B462 |
AT192..MTM..SG;AT190,CT19#,ST195..SG,SGI |
1 | ||
| 82141-2B592 |
AT190..S ｱﾘ(CD & 6 ｽﾋﾟ-ｶ) |
1 | ||
| 82141-2B612 |
AT190..S ｱﾘ(ｺﾝﾊﾟｽ) |
1 | ||
| 82141-2B622 |
AT190..S ｱﾘ(CD & 6 ｽﾋﾟ-ｶ & ｺﾝﾊﾟｽ) |
1 | ||
| 82141-2G050 |
AT190,191..SGI |
1 | ||
| 82141-2B583 |
AT190..S ｱﾘ(*66) OR ｱﾘ(*57) OR ﾏｲﾛ-ﾄﾞ & ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82141-2G210 |
AT190,191..SGI ｱﾘ(*PW) |
1 | ||
| 82141-2G230 |
AT190,191..SGI ﾄｸﾍﾞﾂｼﾖｳｼﾔ.ﾏｲﾛ-ﾄﾞ & ｱﾘ(*PW) |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
AT19#,CT19#,ST19# |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-20890 |
AT19#,CT19#,ST19# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-20300 |
AT19#,CT19#,ST195..SG,SGI,SX,SXI |
1 | ||
| 82821-20230 |
AT19#,ST195..SG,SGI |
1 | ||
| Common parts | ||||
| 82711-2D180 | ||||
| 82715-20510 | ||||
| 82715-20520 | ||||
| 82715-20540 | ||||
| 90119-06390 | ||||
| 90179-06026 | ||||
| 93567-55014 | ||||
| 93568-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF 9(9208- )

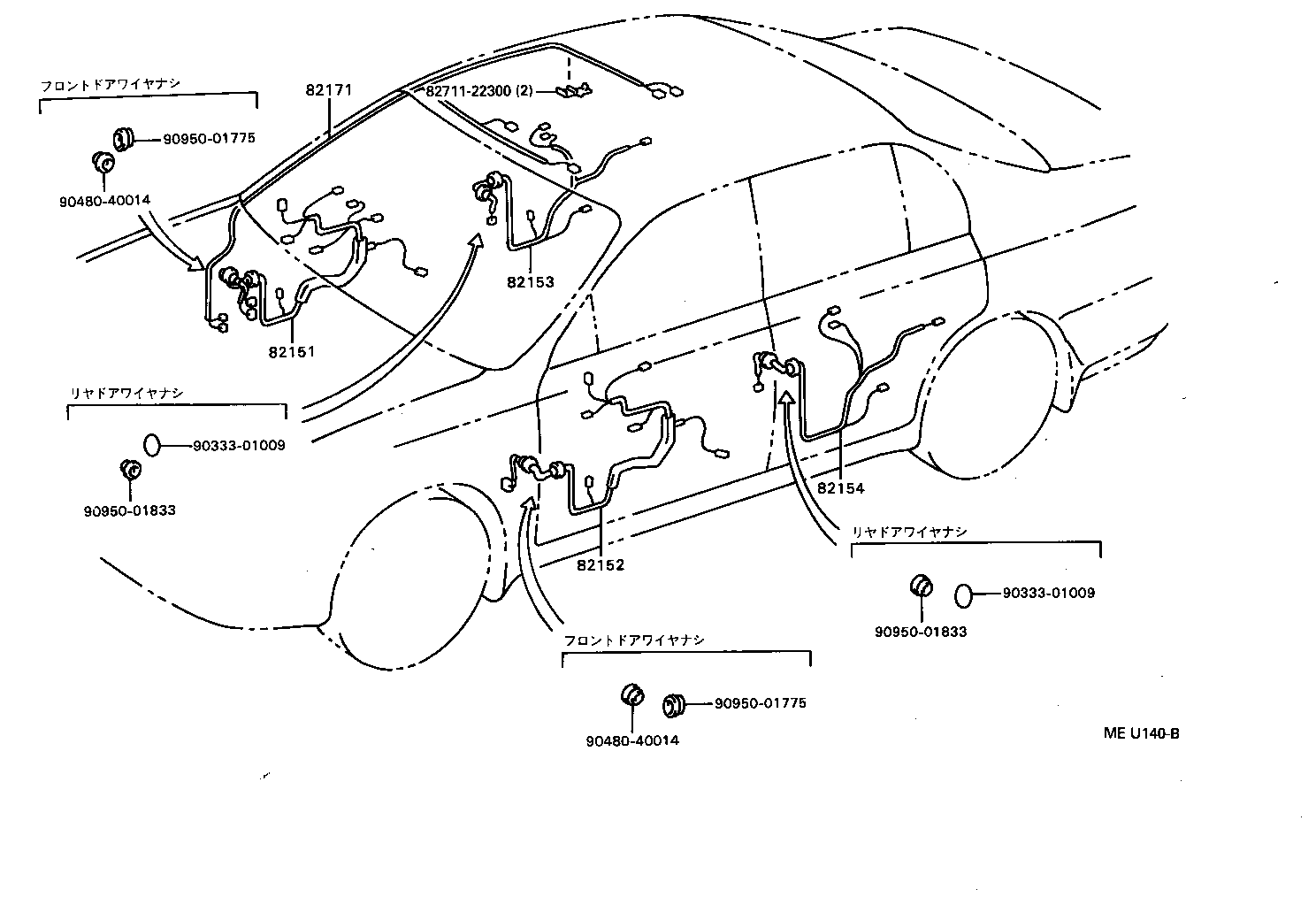

DOOR, ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-2D630 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 82151-2G190 |
AT19#,CT19#,ST195..SG,SGI ｱﾘ(*PW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-2D460 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 82152-2B420 |
AT19#,CT19#,ST195..SG,SGI ｱﾘ(*PW) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20730 |
AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI |
1 | ||
| Common parts | ||||
| 82711-22300 | ||||
| 90333-01009 | ||||
| 90480-40014 | ||||
| 90950-01775 | ||||
| 90950-01833 | ||||
ILLUST NO. 7 OF 9(9208- )

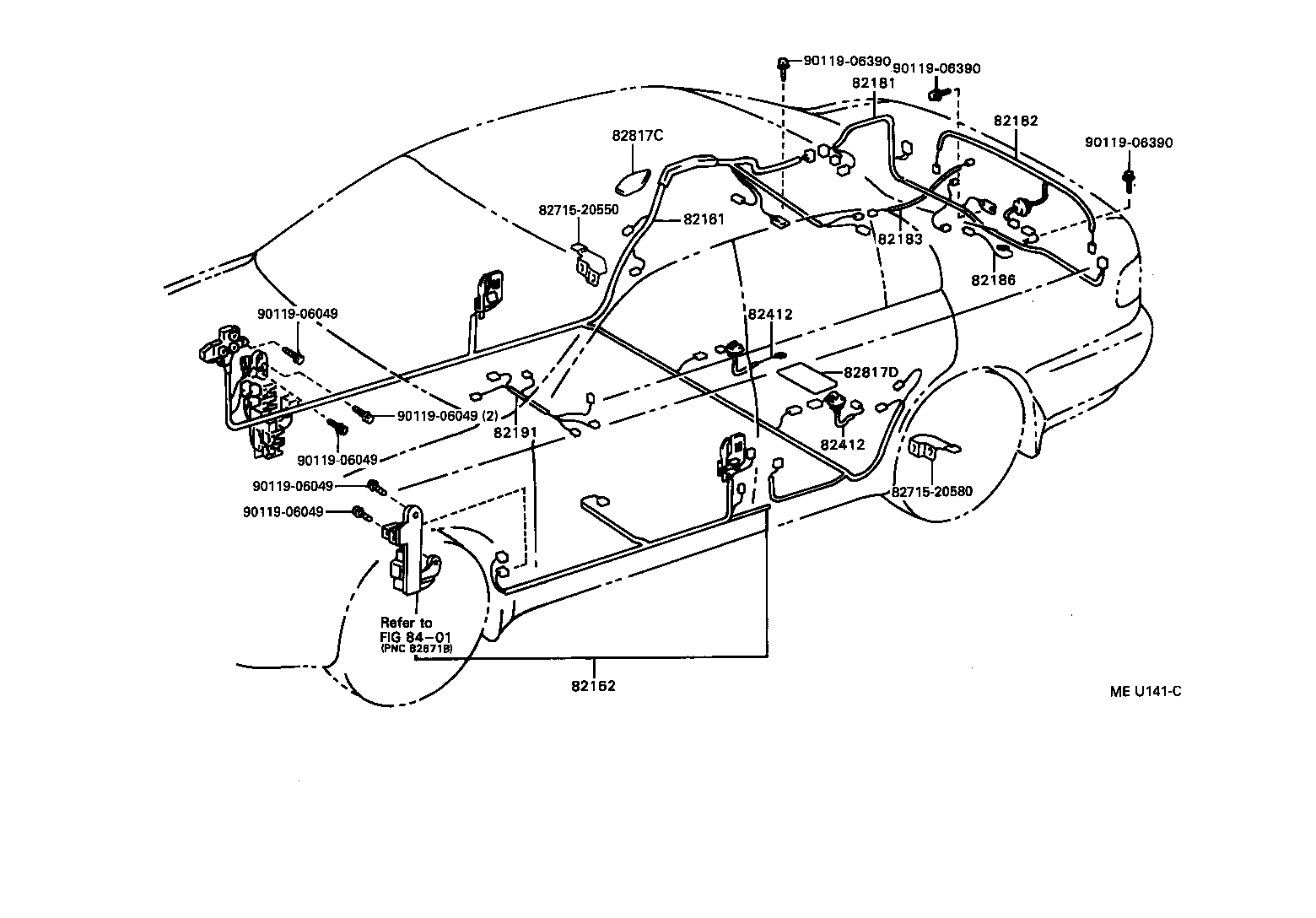

FLOOR,SEAT,LUGGAGE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-2H590 |
AT19#,CT190..SG,SGI |
1 | ||
| 82161-2H630 |
AT190..S ｱﾘ(*66) OR ｱﾘ(*RW) |
1 | ||
| 82161-2H600 |
AT19#..SG,SGI ｱﾘ(*66) OR ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 82161-2H591 |
AT19#,CT190..SG,SGI |
1 | ||
| 82161-2H631 |
AT190..S ｱﾘ(*66) OR ｱﾘ(*RW) |
1 | ||
| 82161-2H602 |
AT19#..SG,SGI ｱﾘ(*66) OR ｱﾘ(*HSL) OR ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 82161-2H592 |
AT19#,CT19#,ST195..SG,SGI |
1 | ||
| 82161-2H603 |
AT19#..SG,SGI ｱﾘ(*66) OR ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 82161-2H603 |
AT190,191,CT19#,ST195..SG,SGI ｱﾘ(*66) OR ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 82161-2H601 |
AT19#..SG,SGI ｱﾘ(*66) OR ｱﾘ(*HSL) OR ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20890 |
AT190..S;ST190..SE,SEEXT,SL;AT191,CT19#,ST195..SE,SEEXT |
1 | ||
| 82181-20880 |
AT19#,CT19#,ST19#..SG,SGI,SX |
1 | ||
| 82181-20881 |
AT19#,CT19#,ST195..SG,SGI,SL,SX,SXI |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-20150 |
AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-20100 |
AT19#,CT190,ST190 |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-20100 |
AT19#,CT190,ST190 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-2D330 |
AT19#,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 82715-20550 | ||||
| 82715-20580 | ||||
| 90119-06049 | ||||
| 90119-06390 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 8 OF 9(9208- )

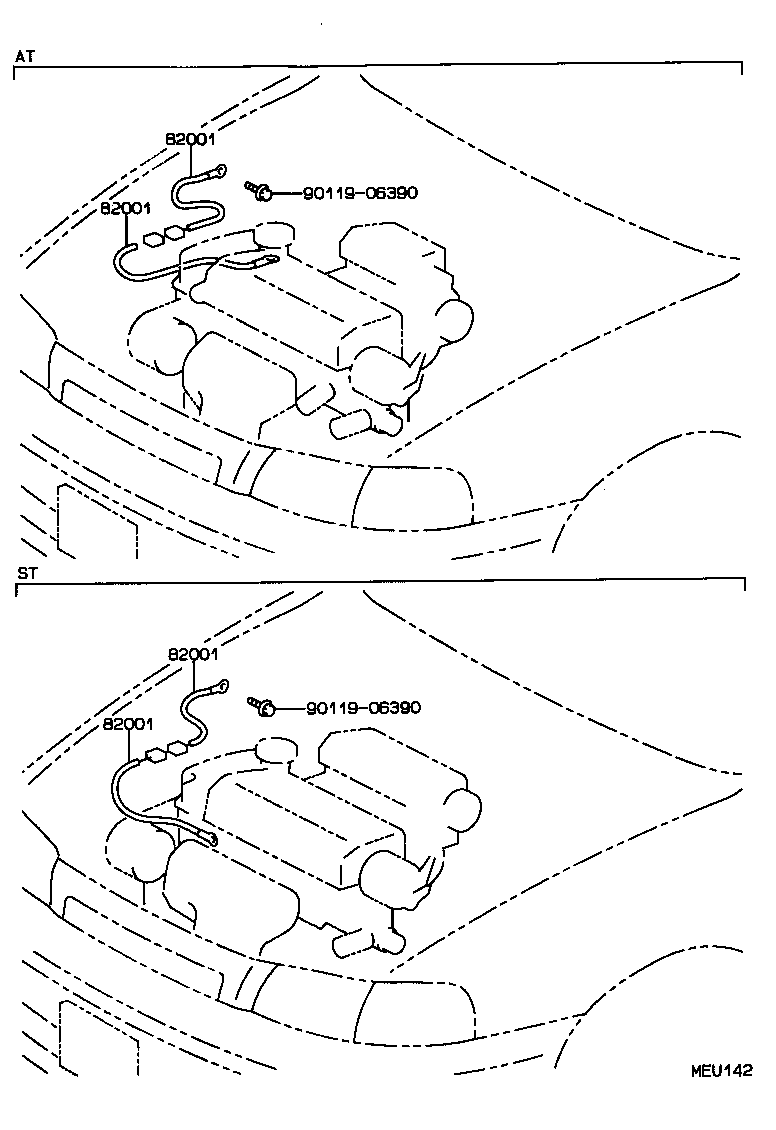

CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT19# ENGINE |
1 | ||
| 90980-07287 |
AT19#,ST19# RH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT19# ENGINE |
1 | ||
| 90980-07287 |
AT19#,ST19# RH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT19# ENGINE |
1 | ||
| 90980-07287 |
AT19#,ST19# RH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT19# ENGINE |
1 | ||
| 90980-07287 |
AT19#,ST19# RH FENDER |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
ILLUST NO. 9 OF 9(9208- )

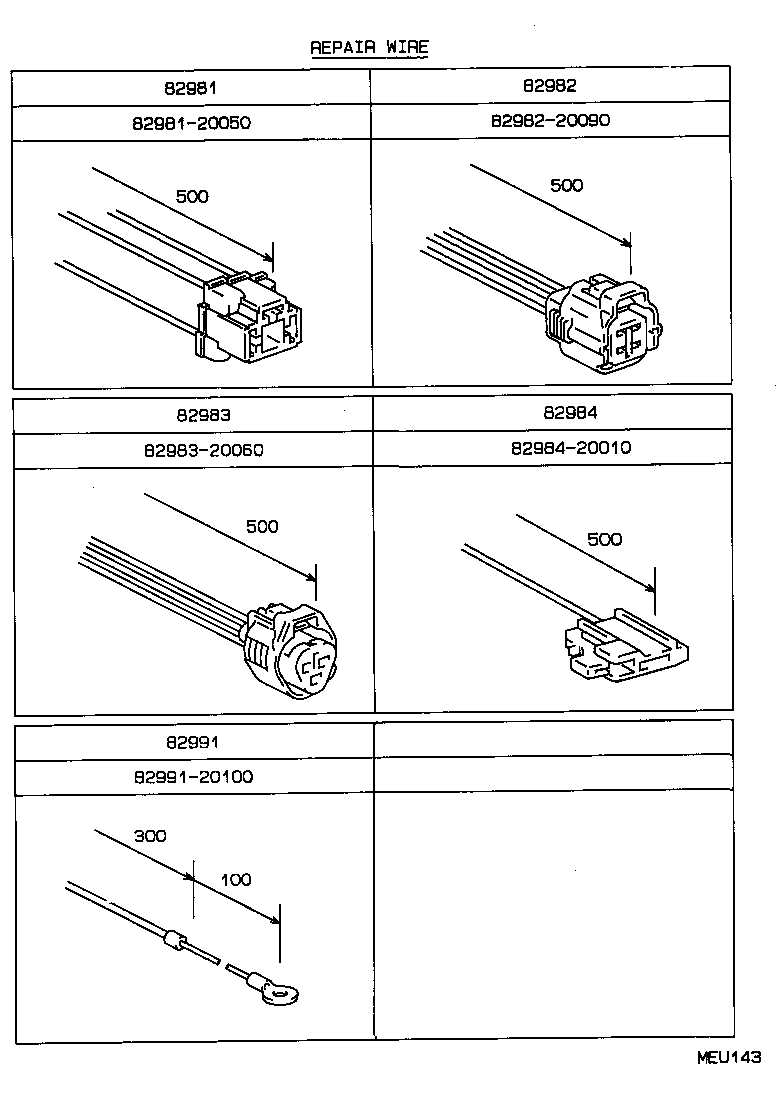

REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20050 |
AT19#,CT19#,ST19# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20090 |
AT19#,CT19#,ST19# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-20060 |
AT19#,CT19#,ST19# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AT19#,CT19#,ST19# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20100 |
AT19#,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 82981-20050 | ||||
| 82982-20090 | ||||
| 82983-20060 | ||||
| 82984-20010 | ||||
| 82991-20100 | ||||
ILLUST NO. 2 OF 9(9208- )AT190,191

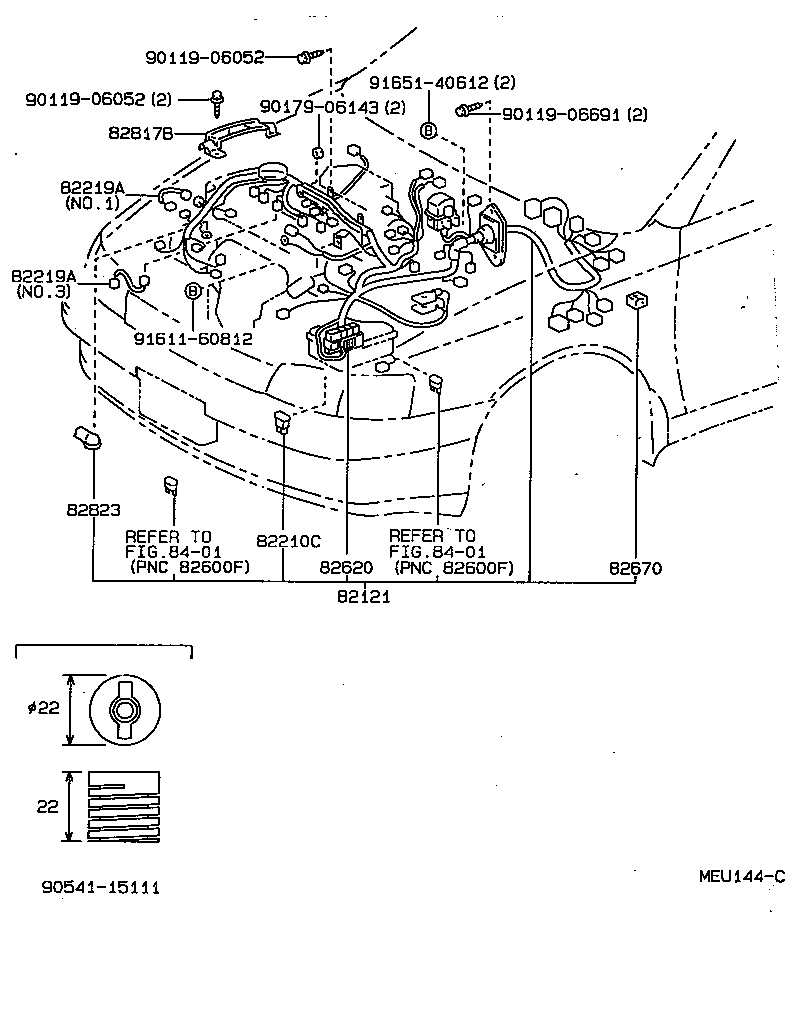

ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-2H400 |
AT190..ATM |
1 | ||
| 82121-2H401 |
AT190..ATM |
1 | ||
| 82121-2H402 |
AT190,191..ATM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
AT19#,CT19#,ST19# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
AT19#,CT19#,ST19# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08227 |
AT19#,CT19#,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-09002 |
AT19# 10A |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-20040 |
AT190 NO.1 |
1 | ||
| 82219-20060 |
AT190,191 NO.3 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-20040 |
AT190 NO.1 |
1 | ||
| 82219-20060 |
AT190,191 NO.3 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20160 |
AT19#,CT19#,ST19# |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-2B010 |
AT19#,CT19#,ST19# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-1A070 |
AT19# |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AT19#,CT19#,ST195 |
1 | ||
| 82823-20070 |
AT19#,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90119-06691 | ||||
| 90179-06143 | ||||
| 90541-15111 | ||||
| 91611-60812 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 9(9208- )

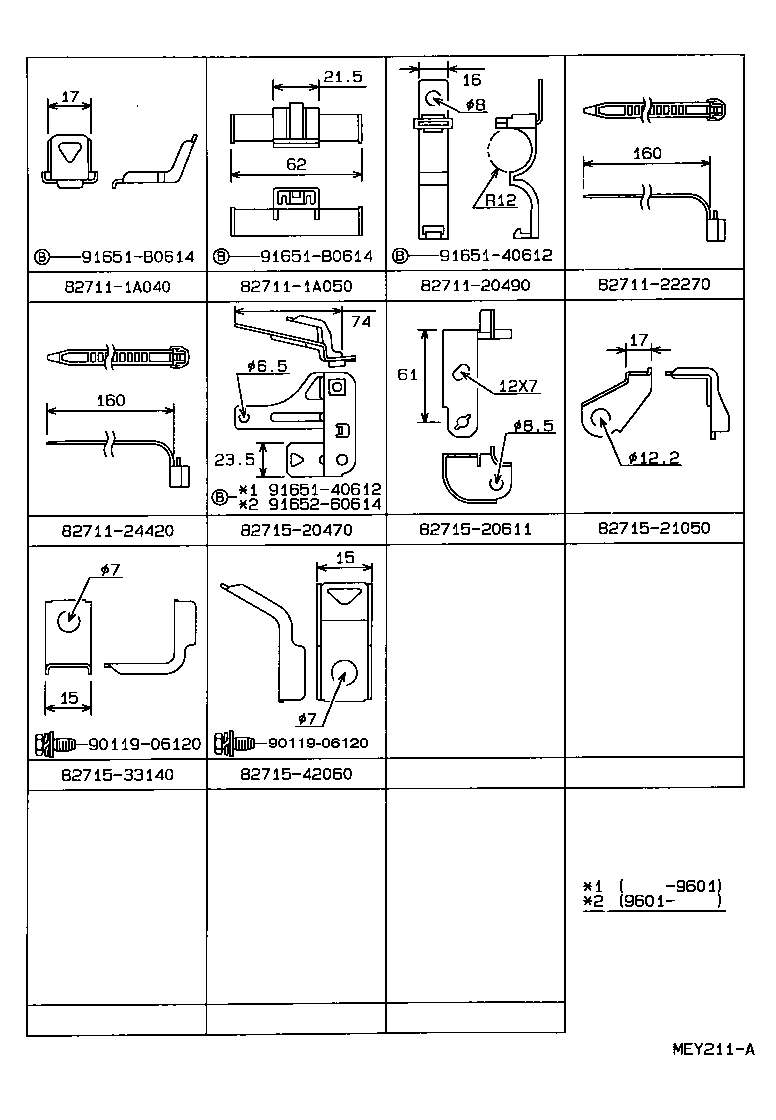

ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A040 | ||||
| 82711-1A050 | ||||
| 82711-20490 | ||||
| 82711-22270 | ||||
| 82711-24420 | ||||
| 82715-20470 | ||||
| 82715-20611 | ||||
| 82715-21050 | ||||
| 82715-33140 | ||||
| 82715-42060 | ||||
| 90119-06120 | ||||
| 91651-40612 | ||||
| 91651-B0614 | ||||
| 91652-60614 | ||||
