AT190-CEPNK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208-9408)4AFE

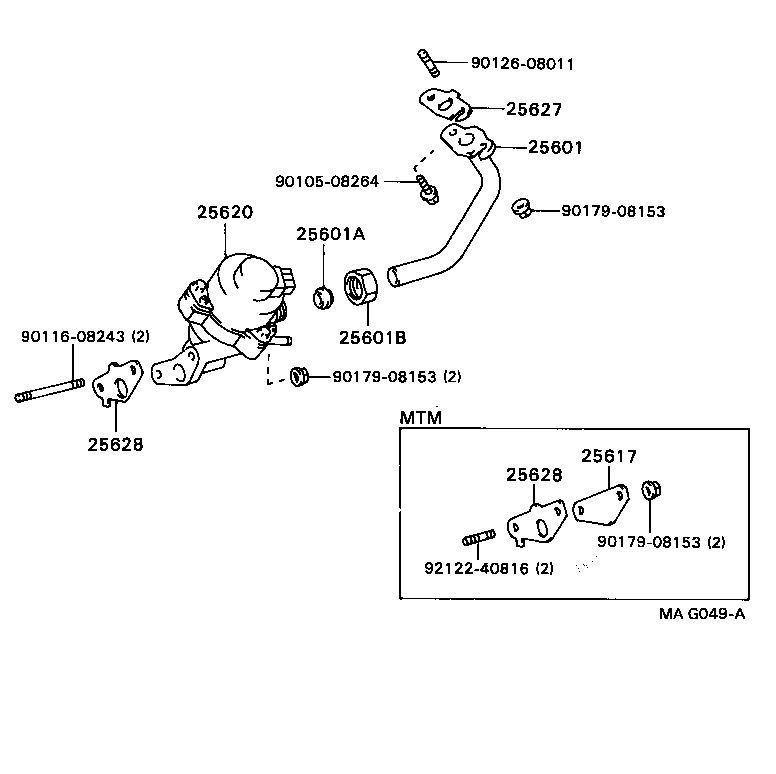

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25617 25620 25627 25628 25628 9010508264 9011608243 9012608011 9017908153 9017908153 9017908153 9212240816
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-16060

4AFE..AT190..ATM

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16001

4AFE..AT190..ATM

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22005

4AFE..AT190..ATM

 1
25620 - VALVE ASSY, EGR
25620-16230

4AFE..AT190..ATM

 1
25627 - GASKET, EGR VALVE
25627-16040

4AFE..AT190..ATM

 1
25628 - GASKET, EGR INLET
25628-16030

4AFE..AT190

 1
25628 - GASKET, EGR INLET
25628-16030

4AFE..AT190

 1
Common parts
90105-08264
90116-08243
90126-08011
90179-08153
92122-40816
