AT190-CEMSK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )AT19#,CT190,ST190

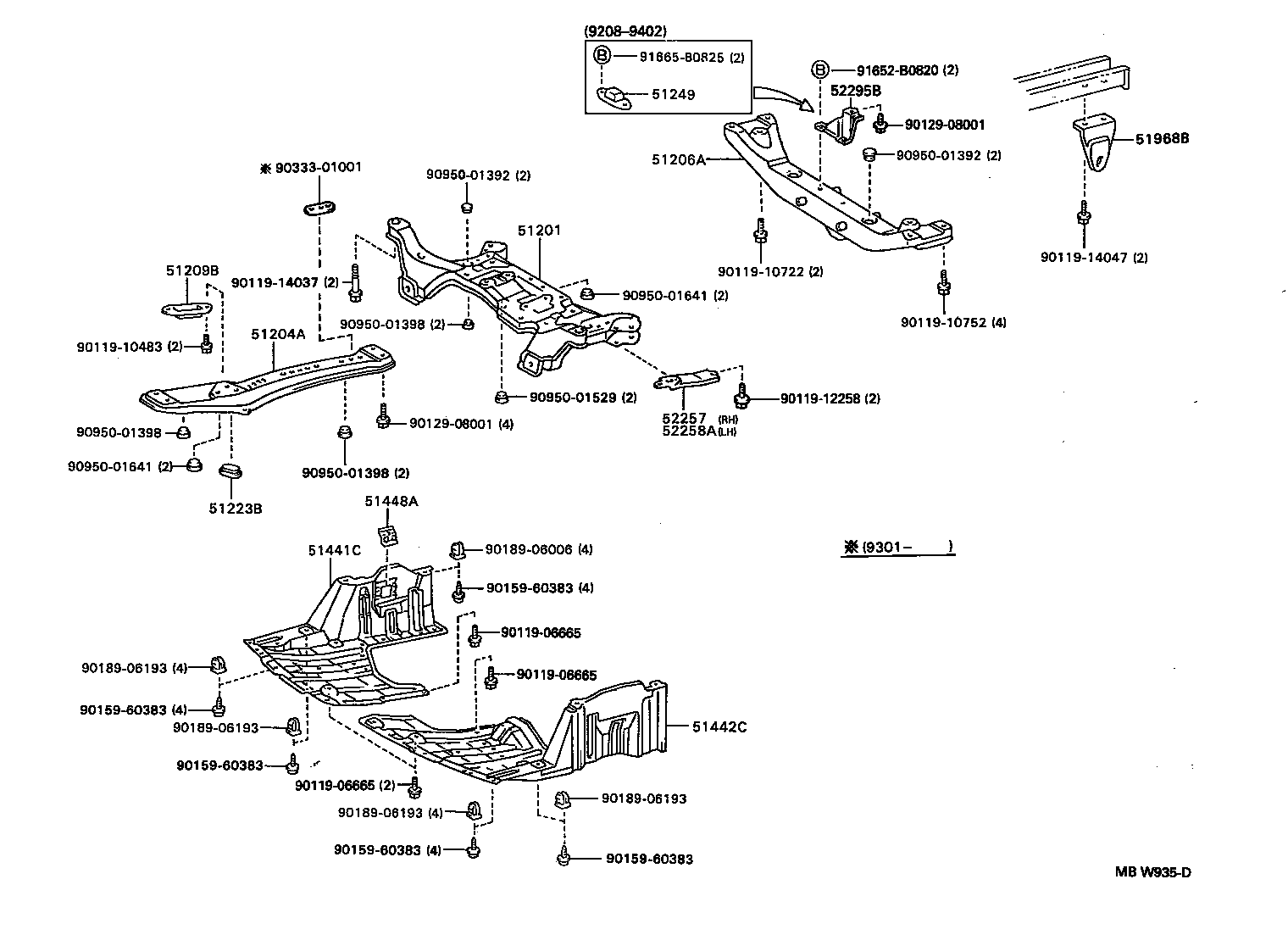

Click highlighted areas on diagram

diagram 51201 51204A 51206A 51209B 51223B 51249 51441C 51442C 51448A 51968B 52257 52258A 52295B 9011906665 9011906665 9011906665 9011910483 9011910722 9011910752 9011912258 9011914037 9011914047 9012908001 9012908001 9015960383 9015960383 9015960383 9015960383 9015960383 9018906006 9018906193 9018906193 9018906193 9018906193 9033301001 9095001392 9095001392 9095001398 9095001398 9095001398 9095001529 9095001641 9095001641 91652B0820 91665B0825
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20250

AT19#,CT190,ST190

 1
51201-20251

AT19#,CT190,ST190

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-20110

AT19#,CT190,ST190

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-20050

AT19#,CT190,ST190

 1
51223B - COVER, ENGINE MOUNTING HOLE
51223-20050

AT19#,CT19#,ST19#

 1
51249 - DAMPER, REAR SUSPENSION MEMBER
51249-20020

AT19#,CT190,ST190

 1
51441C - COVER, ENGINE UNDER, RH
51441-20311

AT19#,CT190,ST19#

 1
51441-20310

AT19#,CT190,ST19#

 1
51442C - COVER, ENGINE UNDER, LH
51442-20370

AT19#,CT190,ST19#..MTM

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20030

AT19#,CT19#,ST19#

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-20100

AT19#,CT19#,ST19#

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-20010

AT19#,CT190,ST190

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-20010

AT19#,CT190,ST190

 1
Common parts
90119-06665
90119-10483
90119-10722
90119-10752
90119-12258
90119-14037
90119-14047
90129-08001
90159-60383
90189-06006
90189-06193
90333-01001
90950-01392
90950-01398
90950-01529
90950-01641
91652-B0820
91665-B0825
