AT190-CEMNK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

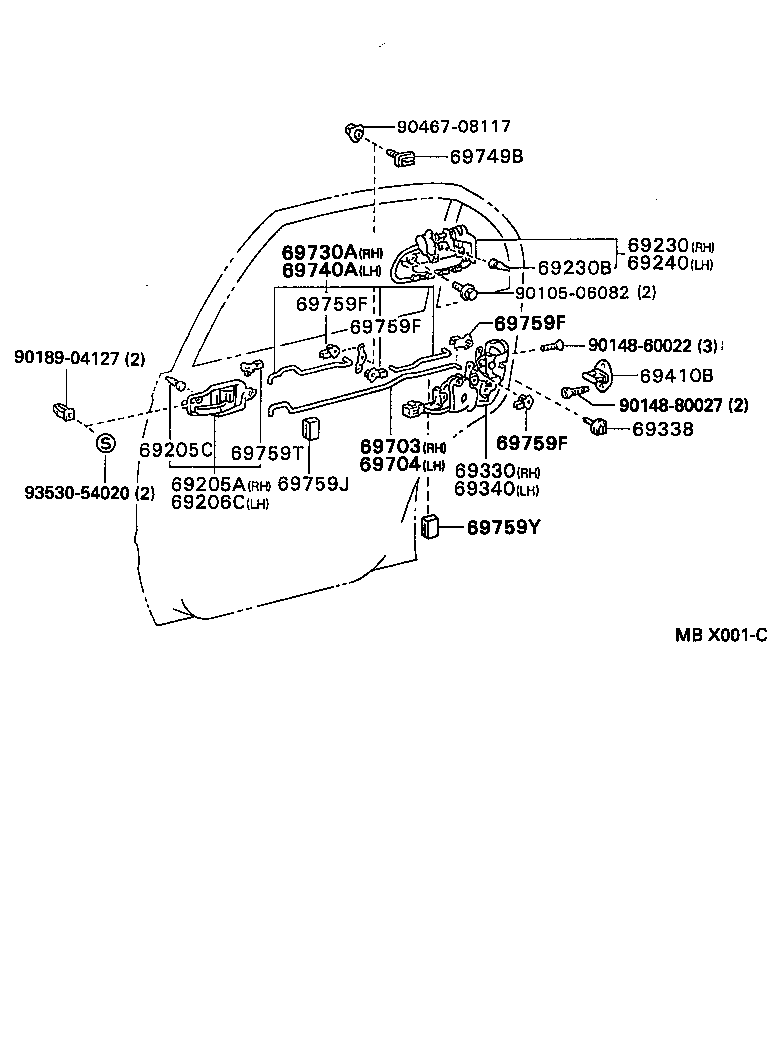

Click highlighted areas on diagram

diagram 69205A 69205C 69206C 69230 69230B 69240 69330 69338 69340 69410B 69703 69704 69730A 69740A 69749B 69759F 69759F 69759F 69759F 69759J 69759T 69759Y 9010506082 9014860022 9014880027 9018904127 9046708117 9353054020
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-20120E0

AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI

DARK ROSE,TRIM4#

 1
69205-20120B1

AT19#,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
69205-20120E1

AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI

ANTELOPE,TRIM4#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

AT19#,CT19#,ST19#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-20120B1

AT19#,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
69206-20120E0

AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI

DARK ROSE,TRIM4#

 1
69206-20120E1

AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI

ANTELOPE,TRIM4#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-20220A0

AT19#,CT19#,ST195..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ,SUPER WHITE 2,040

 1
69230-20220J2

AT19#,CT19#,ST195..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ,DK.BLUE MM,8G5

 1
69230-20220F0

AT19#,CT19#,ST195..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ,PALE YELLOW OPAL,574

 1
69230-20210

AT19#,CT19#,ST195..SG,SGI

塗装不要

 1
69230-20220B0

AT19#,CT19#,ST195..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ,DARK BLUEISH GRAY ME,183

 1
69230-20220A0

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SUPER WHITE 2,040

 1
69230-20220D2

AT19#,CT19#,ST195..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ,WINE RED MICA,3J8

 1
69230-20220B0

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,DARK BLUEISH GRAY ME,183

 1
69230-20220C0

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,BLACK ME,205

 1
69230-20220C0

AT19#,CT19#,ST195..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ,BLACK ME,205

 1
69230-20220D2

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,WINE RED MICA,3J8

 1
69230-20220J2

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,DK.BLUE MM,8G5

 1
69230-20220G4

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,DK GREEN MICA,6M1

 1
69230-20220F0

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,PALE YELLOW OPAL,574

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-04018

AT19#,CT19#,ST19#

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-20220D2

AT19#,CT19#,ST195..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ,WINE RED MICA,3J8

 1
69240-20220B0

AT19#,CT19#,ST195..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ,DARK BLUEISH GRAY ME,183

 1
69240-20210

AT19#,CT19#,ST195..SG,SGI

ﾌﾞﾗｯｸ

 1
69240-20220F0

AT19#,CT19#,ST195..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ,PALE YELLOW OPAL,574

 1
69240-20220J2

AT19#,CT19#,ST195..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ,DK.BLUE MM,8G5

 1
69240-20220C0

AT19#,CT19#,ST195..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ,BLACK ME,205

 1
69240-20220C0

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,BLACK ME,205

 1
69240-20220A0

AT19#,CT19#,ST195..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ,SUPER WHITE 2,040

 1
69240-20220F0

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,PALE YELLOW OPAL,574

 1
69240-20220D2

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,WINE RED MICA,3J8

 1
69240-20220A0

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SUPER WHITE 2,040

 1
69240-20220J2

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,DK.BLUE MM,8G5

 1
69240-20220B0

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,DARK BLUEISH GRAY ME,183

 1
69240-20220G4

AT19#,CT190..SG,SGI

ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,DK GREEN MICA,6M1

 1
69330 - LOCK ASSY, REAR DOOR, RH
69305-20070

AT19#,CT19#,ST195..SG,SGI

 1
69338 - KNOB, CHILD PROTECTOR LOCK LEVER
69338-32010

AT19#,CT19#,ST19#

 2
69340 - LOCK ASSY, REAR DOOR, LH
69306-20070

AT19#,CT19#,ST195..SG,SGI

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

AT19#,CT19#,ST19#

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69703-20030

AT19#,CT19#,ST19#

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69704-20030

AT19#,CT19#,ST19#

 1
69730A - LINK ASSY, REAR DOOR LOCK CONTROL, RH
69730-20040

AT19#,CT19#,ST19#

 1
69740A - LINK ASSY, REAR DOOR LOCK CONTROL, LH
69740-20040

AT19#,CT19#,ST19#

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32030

AT19#,CT19#,ST19#

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24050

AT19#,CT19#,ST19#

GREEN

 2
69759-24060

AT19#,CT19#,ST19#

GRAY

 2
69759-24030

AT19#,CT19#,ST19#

RH,RED

 2
69759-24050

AT19#,CT19#,ST195

GREEN

 2
69759-24060

AT19#,CT19#,ST195

GRAY

 2
69759-20380

AT19#,CT19#,ST19#

LH,BLACK

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24060

AT19#,CT19#,ST19#

GRAY

 2
69759-24030

AT19#,CT19#,ST19#

RH,RED

 2
69759-24050

AT19#,CT19#,ST19#

GREEN

 2
69759-24050

AT19#,CT19#,ST195

GREEN

 2
69759-24060

AT19#,CT19#,ST195

GRAY

 2
69759-20380

AT19#,CT19#,ST19#

LH,BLACK

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24050

AT19#,CT19#,ST19#

GREEN

 2
69759-24060

AT19#,CT19#,ST19#

GRAY

 2
69759-24030

AT19#,CT19#,ST19#

RH,RED

 2
69759-24050

AT19#,CT19#,ST195

GREEN

 2
69759-24060

AT19#,CT19#,ST195

GRAY

 2
69759-20380

AT19#,CT19#,ST19#

LH,BLACK

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24050

AT19#,CT19#,ST19#

GREEN

 2
69759-24060

AT19#,CT19#,ST19#

GRAY

 2
69759-24030

AT19#,CT19#,ST19#

RH,RED

 2
69759-24050

AT19#,CT19#,ST195

GREEN

 2
69759-24060

AT19#,CT19#,ST195

GRAY

 2
69759-20380

AT19#,CT19#,ST19#

LH,BLACK

 2
69759J - SILENCER, DOOR LOCK LINK
69759-12060

AT19#,CT19#,ST19#

 2
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-24070

AT19#,CT19#,ST195

ｲｴﾛｰ

 2
69759-14050

AT19#,CT19#,ST19#

LH,PINK

 2
69759-24070

AT19#,CT19#,ST19#

RH,YELLOW

 2
69759-14050

AT19#,CT19#,ST195

PINK

 2
69759Y - SILENCER, REAR DOOR LOCK LINK
69759-12060

AT19#,CT19#,ST19#

 2
Common parts
90105-06082
90148-60022
90148-80027
90189-04127
90467-08117
93530-54020
