AT190-CEMNK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

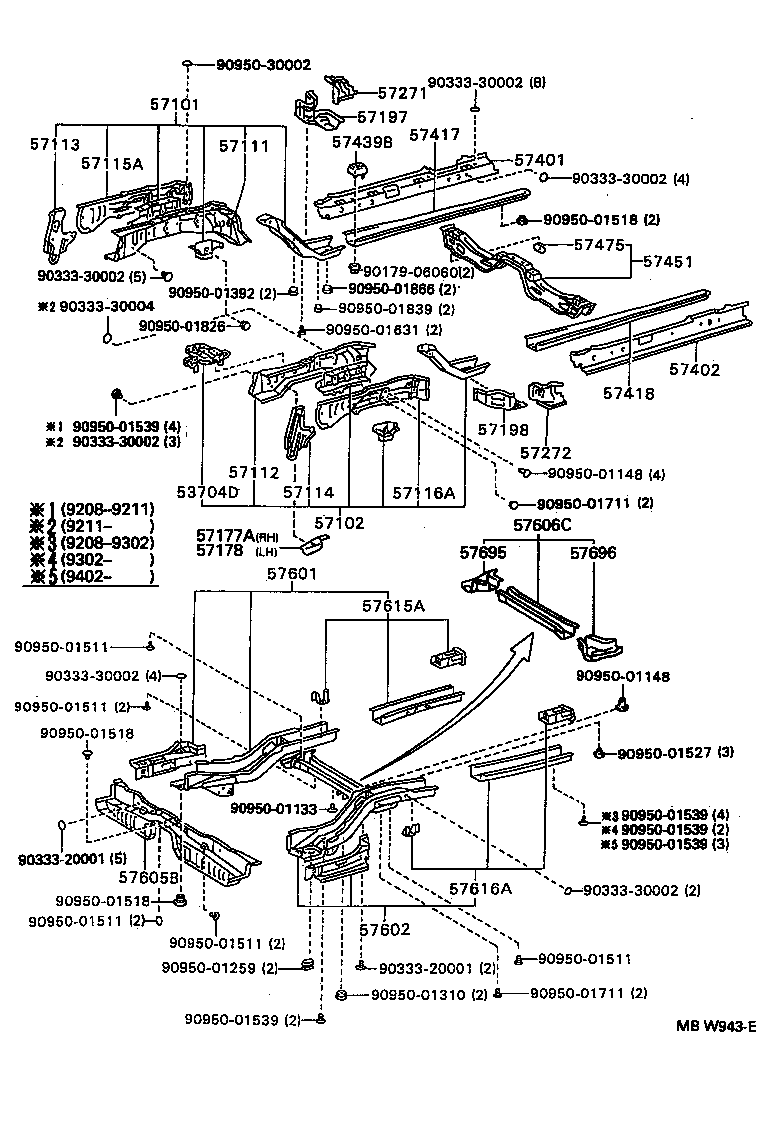

Click highlighted areas on diagram

diagram 53704D 57101 57102 57111 57112 57113 57114 57115A 57116A 57177A 57178 57197 57198 57271 57272 57401 57402 57417 57418 57439B 57451 57475 57601 57602 57605B 57606C 57615A 57616A 57695 57696 9005001539 9017906060 9033320001 9033320001 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330004 9095001133 9095001148 9095001148 9095001259 9095001310 9095001392 9095001511 9095001511 9095001511 9095001511 9095001511 9095001518 9095001518 9095001518 9095001527 9095001539 9095001539 9095001539 9095001539 9095001631 9095001711 9095001711 9095001826 9095001839 9095001866 9095030002
Part # Description Qty Price
53704D - SUPPORT SUB-ASSY, BATTERY, LH
53704-20010

AT19#,CT19#,ST19#

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20913

AT19#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20910

AT19#

 1
57111 - MEMBER, FRONT SIDE, RH
57111-20220

AT19#,CT19#,ST19#

 1
57111-20270

AT19#,CT19#,ST195

 1
57111-20260

AT19#,CT19#,ST195

 1
57112 - MEMBER, FRONT SIDE, LH
57112-20240

AT19#,CT19#,ST19#

 1
57112-20240

AT19#,CT19#,ST19#

 1
57112-20280

AT19#,CT19#,ST195

 1
57112-20270

AT19#,CT19#,ST195

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-20151

AT19#,CT19#,ST195

 1
57113-20150

AT19#,CT19#,ST19#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-20120

AT19#,CT19#,ST19#

 1
57114-20121

AT19#,CT19#,ST195

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-20160

AT19#,CT19#,ST195

 1
57115-20150

AT19#,CT19#,ST19#

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-20170

AT19#,CT19#,ST19#

 1
57116-20181

AT19#,CT19#,ST195

 1
57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH
57177-20080

AT19#,CT19#,ST195

 1
57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH
57178-20070

AT19#,CT19#,ST195

 1
57197 - BOX, TORQUE, FRONT RH
57197-20040

AT19#,CT19#,ST19#

 1
57198 - BOX, TORQUE, FRONT LH
57198-20050

AT19#,CT19#,ST19#

 1
57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57271-20041

AT19#,CT19#,ST195

 1
57271-20040

AT19#,CT19#,ST19#

 1
57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57272-20041

AT19#,CT19#,ST195

 1
57272-20040

AT19#,CT19#,ST19#

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-20280

AT19#,CT19#,ST19#

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-20310

AT19#,CT19#,ST19#

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-20080

AT19#,CT19#,ST19#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-20070

AT19#,CT19#,ST19#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-20900

AT19#,CT19#,ST19#

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-32010

AT19#,CT19#,ST19#

 2
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20380

AT19#,CT190,ST190

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20370

AT19#,CT190,ST190

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-20100

AT19#,CT19#,ST19#

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-20160

AT190

 1
57606-20162

AT190,191

 1
57606-20161

AT190

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-20909

AT19#,CT19#,ST19#

 1
57615-20917

AT19#,CT19#,ST195

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-20908

AT19#,CT19#,ST19#

 1
57695 - EXTENSION, REAR FLOOR CROSS REAR SIDE, RH
57695-20020

AT19#,CT190,ST190

 1
57695-20020

AT19#,CT190

 1
57696 - EXTENSION, REAR FLOOR CROSS REAR SIDE, LH
57696-20020

AT19#,CT190,ST190

 1
57696-20020

AT19#,CT190

 1
Common parts
90050-01539
90179-06060
90333-20001
90333-30002
90333-30004
90950-01133
90950-01148
90950-01259
90950-01310
90950-01392
90950-01511
90950-01518
90950-01527
90950-01539
90950-01631
90950-01711
90950-01826
90950-01839
90950-01866
90950-30002
