AT175-CEPMK (1988)
Toyota Carina Ff
Production
Aug 1988
-
Aug 1992
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

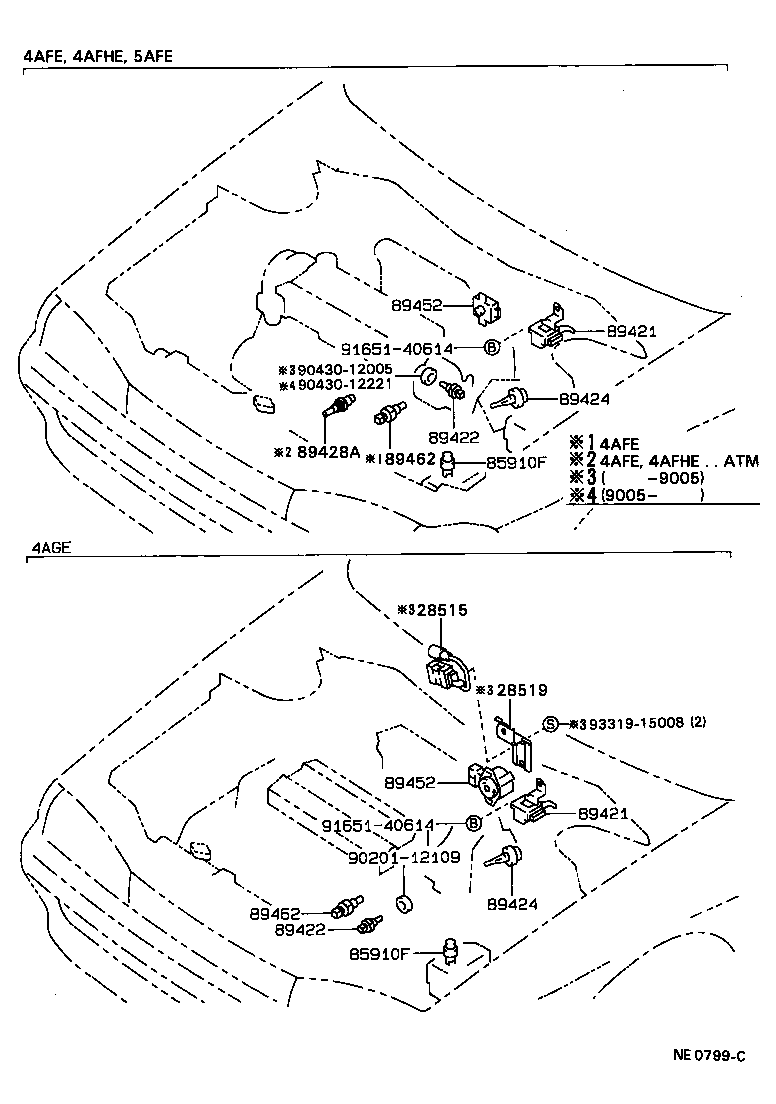

ILLUST NO. 1 OF 2(8805-9005)AT171,175 ; (9005- )AT17#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
AT17#,ST170..CI,EFI,EFIS |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
AT17#,ST170..CI,EFI,EFIS |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89420-20120 |
AT171,175,ST170 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89420-20120 |
AT171,175,ST170 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-20010 |
AT17#,ST170..CI,EFI,EFIS |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-20010 |
AT17#,ST170..CI,EFI,EFIS |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-12010 |
AT17#,ST170..EFI,EFIS |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-12010 |
AT17#,ST170..EFI,EFIS |
1 | ||
| 89428A - SWITCH, WATER TEMPERATURE (FOR E.F.I) | ||||
| 89428-12110 |
AT175..4FC;AT171..4FC..EFIS |
1 | ||
| 89428-12110 |
AT175..4FC;AT171..EFIS |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-12010 |
AT171,175..(S,SE,SG,SGEXT)..EFI |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-12010 |
AT171,175..(S,SE,SG,SGEXT)..EFI |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-20030 |
AT171,175..EFI |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-20030 |
AT171,175..EFI |
1 | ||
| Common parts | ||||
| 90201-12109 | ||||
| 90430-12005 | ||||
| 90430-12221 | ||||
| 91651-40614 | ||||
| 93319-15008 | ||||

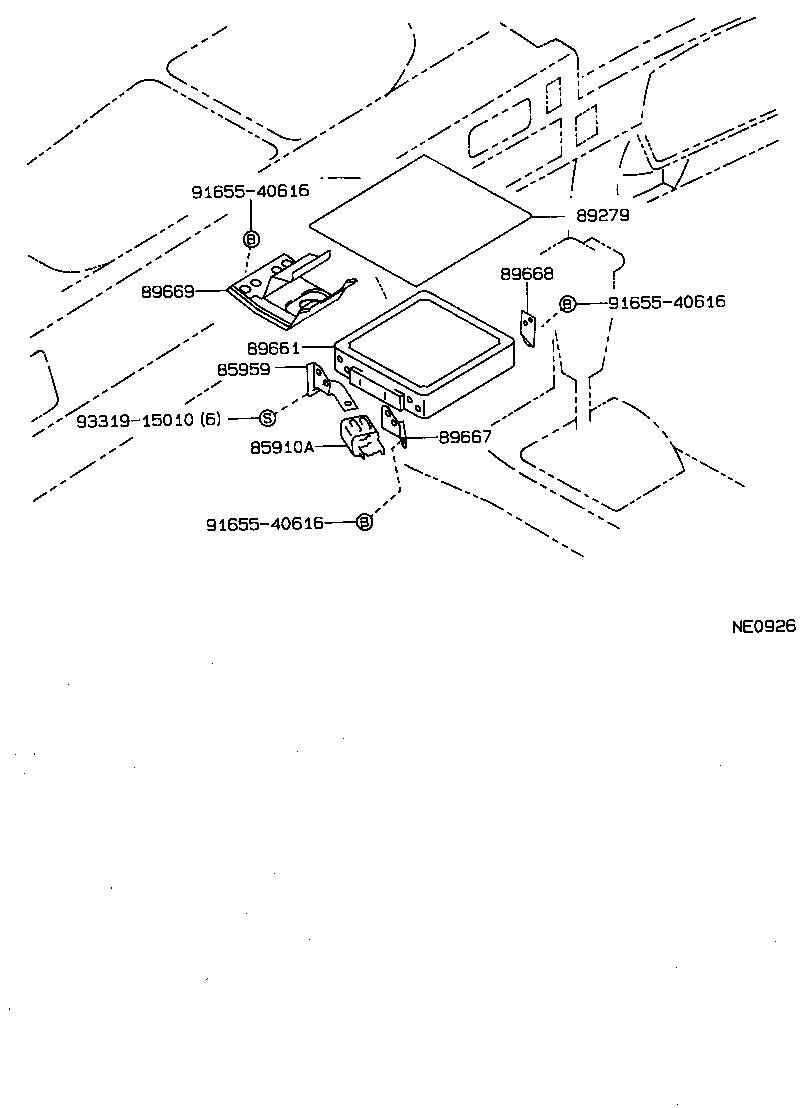

ILLUST NO. 2 OF 2(8808- )AT175
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-12010 |
AT17#,ST170..CI,EFI,EFIS |
1 | ||
| 85959 - HOLDER, RELAY | ||||
| 85959-20110 |
AT171,175,ST170 |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-20130 |
AT175 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-20530 |
AT175 |
1 | ||
| 89661-20860 |
AT175 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-20180 |
AT175 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-20160 |
AT175 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-20070 |
AT175 |
1 | ||
| Common parts | ||||
| 91655-40616 | ||||
| 93319-15010 | ||||
