AT175-CEPFK (1988)
Toyota Carina Ff
(8805-9005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-2004006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 69205-2004003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 69205-2004004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-2004003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 69206-2004004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 69206-2004006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-20190 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-20190 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
AT17#,CT17#,ET176,ST170 右側 |
1 | ||
| 69293-12040 |
AT17#,CT17#,ET176,ST170 左側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-20550 |
ST170..SE;AT17#,CT170..GLIM,SE,SGEXT |
1 | ||
| 69310-20551 |
ST170..SE;AT17#,CT170..GLIM,SE,SGEXT |
1 | ||
| 69310-20540 |
ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-20550 |
ST170..SE;AT17#,CT170..GLIM,SE,SGEXT |
1 | ||
| 69310-20551 |
ST170..SE;AT17#,CT170..GLIM,SE,SGEXT |
1 | ||
| 69310-20540 |
ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-20540 |
ST170..SE;AT17#,CT170..GLIM,SE,SGEXT |
1 | ||
| 69320-20541 |
ST170..SE;AT17#,CT170..GLIM,SE,SGEXT |
1 | ||
| 69320-20530 |
ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-20540 |
ST170..SE;AT17#,CT170..GLIM,SE,SGEXT |
1 | ||
| 69320-20541 |
ST170..SE;AT17#,CT170..GLIM,SE,SGEXT |
1 | ||
| 69320-20530 |
ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20080 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-20130 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-20130 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 69736C - GUIDE, FRONT DOOR LOCKING LINK | ||||
| 69736-12030 |
CT176,ET176..SG;AT17#,CT170,ST170 |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-90K0034 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
2 | ||
| 69741-90K0036 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
2 | ||
| 69741-90K0003 |
AT17#,CT17#,ET176,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 69741-90K00J0 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24080 |
AT17#,CT17#,ET176,ST170 ｲｴﾛｰ |
2 | ||
| 69759-24090 |
AT17#,CT17#,ET176,ST170 ﾌﾞﾗｳﾝ |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24080 |
AT17#,CT17#,ET176,ST170 ｲｴﾛｰ |
2 | ||
| 69759-24090 |
AT17#,CT17#,ET176,ST170 ﾌﾞﾗｳﾝ |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-14050 |
AT17#,CT17#,ET176,ST170 左側 |
1 | ||
| 69759-24070 |
AT17#,CT17#,ET176,ST170 右側 |
1 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-12011 |
CT176,ET176..SG;AT17#,CT170,ST170 |
2 | ||
| Common parts | ||||
| 90159-60356 | ||||
| 90159-80030 | ||||
| 90162-50008 | ||||
| 90167-20002 | ||||
| 90179-06070 | ||||
| 90189-05003 | ||||
| 90386-04018 | ||||
| 90386-06021 | ||||
| 90463-12570 | ||||
| 91651-40612 | ||||
| 93311-16012 | ||||

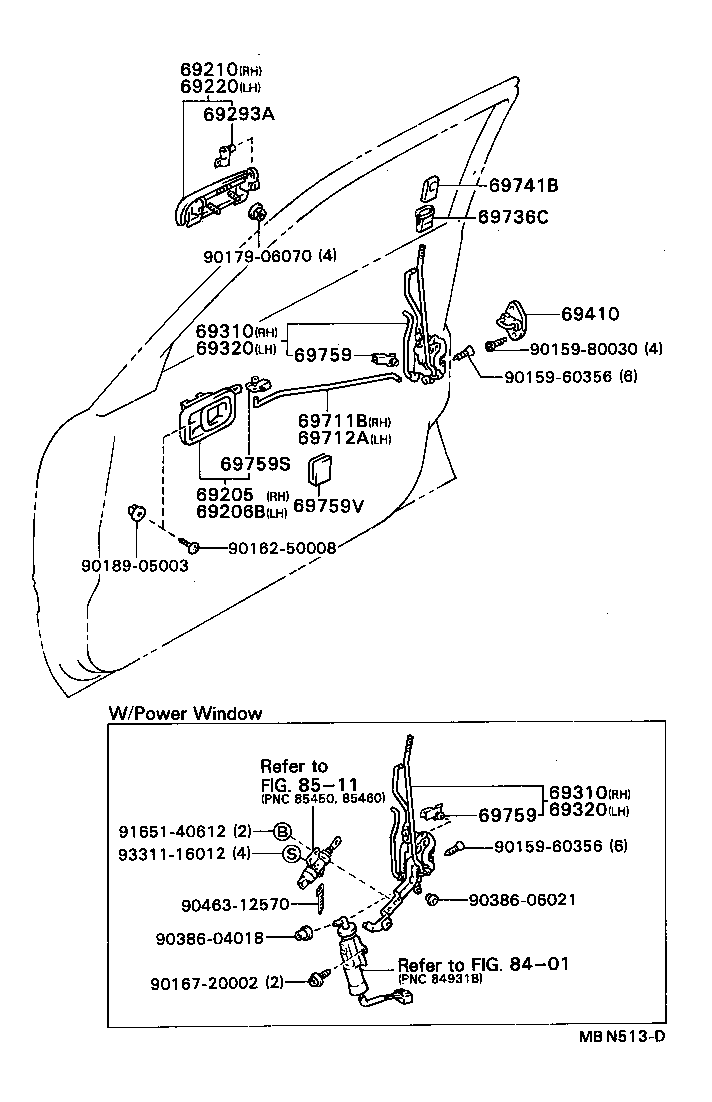

| Linked diagrams | ||||
| 8401 | ||||
| 8511 | ||||
