AT175-CEPFK (1988)

Toyota Carina Ff

Production Aug 1988 - May 1990
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

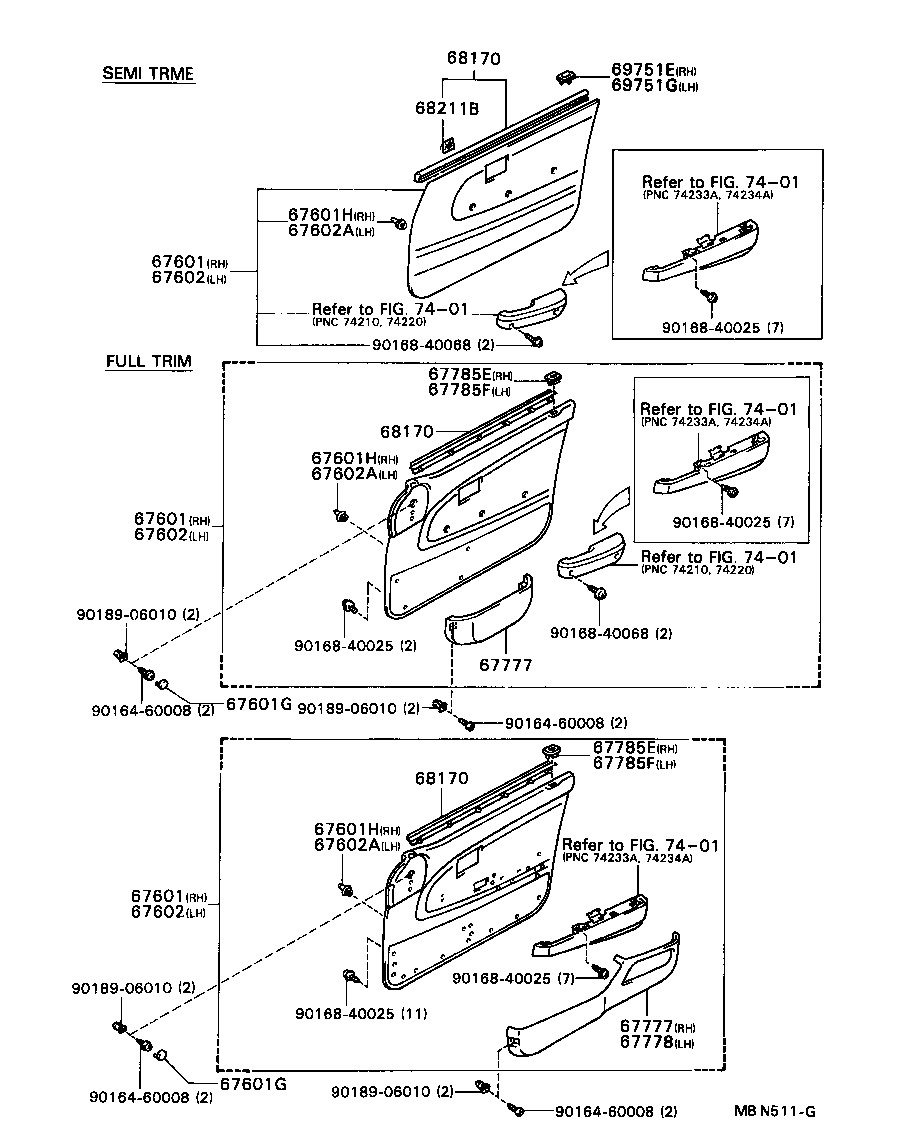

ILLUST NO. 2 OF 2(8805-9005)

Click highlighted areas on diagram

diagram 67601 67601 67601 67601G 67601G 67601H 67601H 67601H 67602 67602 67602 67602A 67602A 67602A 67777 67777 67778 67785E 67785E 67785F 67785F 68170 68170 68170 68211B 69751E 69751G 7401 7401 7401 7401 7401 9016460008 9016460008 9016460008 9016460008 9016840025 9016840025 9016840025 9016840025 9016840025 9016840068 9016840068 9018906010 9018906010 9018906010 9018906010
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2D18003

AT170,175,CT170..SG

GRAY,TRIM1#

 1
67610-2D18004

AT170,175,CT170..SG

BLUE,TRIM8#

 1
67610-2D18006

AT170,175,CT170..SG

SABLE,TRIM4#

 1
67610-2D18003

AT170,175,CT17#,ET176..SG

GRAY,TRIM1#

 1
67610-2D18006

AT170,175,CT17#,ET176..SG

SABLE,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2D18003

AT170,175,CT170..SG

GRAY,TRIM1#

 1
67610-2D18004

AT170,175,CT170..SG

BLUE,TRIM8#

 1
67610-2D18006

AT170,175,CT170..SG

SABLE,TRIM4#

 1
67610-2D18003

AT170,175,CT17#,ET176..SG

GRAY,TRIM1#

 1
67610-2D18006

AT170,175,CT17#,ET176..SG

SABLE,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2D18003

AT170,175,CT170..SG

GRAY,TRIM1#

 1
67610-2D18004

AT170,175,CT170..SG

BLUE,TRIM8#

 1
67610-2D18006

AT170,175,CT170..SG

SABLE,TRIM4#

 1
67610-2D18003

AT170,175,CT17#,ET176..SG

GRAY,TRIM1#

 1
67610-2D18006

AT170,175,CT17#,ET176..SG

SABLE,TRIM4#

 1
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-0150314

AT17#,CT170,ST170..S,SE,SG,SGEXT

DARK BLUE,TRIM8#

 2
90950-0150326

AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX

SABLE,TRIM4#

 2
90950-0150303

CT176,ET176..SG;AT17#,CT170,ST170

SHADOW GRAY,TRIM1#

 2
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-0150314

AT17#,CT170,ST170..S,SE,SG,SGEXT

DARK BLUE,TRIM8#

 2
90950-0150326

AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX

SABLE,TRIM4#

 2
90950-0150303

CT176,ET176..SG;AT17#,CT170,ST170

SHADOW GRAY,TRIM1#

 2
67601H - RETAINER, DOOR TRIM, RH
67771-12040

CT176,ET176..SG;AT17#,CT170,ST170

 9
67601H - RETAINER, DOOR TRIM, RH
67771-12040

CT176,ET176..SG;AT17#,CT170,ST170

 9
67601H - RETAINER, DOOR TRIM, RH
67771-12040

CT176,ET176..SG;AT17#,CT170,ST170

 9
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2G39003

AT170,175,CT17#,ET176..SG

GRAY,TRIM1#

 1
67620-2G39004

AT170,175,CT170..SG

BLUE,TRIM8#

 1
67620-2G39006

AT170,175,CT17#,ET176..SG

SABLE,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2G39003

AT170,175,CT17#,ET176..SG

GRAY,TRIM1#

 1
67620-2G39004

AT170,175,CT170..SG

BLUE,TRIM8#

 1
67620-2G39006

AT170,175,CT17#,ET176..SG

SABLE,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2G39003

AT170,175,CT17#,ET176..SG

GRAY,TRIM1#

 1
67620-2G39004

AT170,175,CT170..SG

BLUE,TRIM8#

 1
67620-2G39006

AT170,175,CT17#,ET176..SG

SABLE,TRIM4#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-12040

CT176,ET176..SG;AT17#,CT170,ST170

 9
67602A - RETAINER, DOOR TRIM, LH
67771-12040

CT176,ET176..SG;AT17#,CT170,ST170

 9
67602A - RETAINER, DOOR TRIM, LH
67771-12040

CT176,ET176..SG;AT17#,CT170,ST170

 9
67777 - POCKET, FRONT DOOR TRIM, RH
67777-2012006

ST170..SX;AT17#,CT17#,ET176..S,SG,SGEXT

SABLE,TRIM4#

 1
67777-2012003

ST170..SX;AT17#,CT17#,ET176..S,SG,SGEXT

GRAY,TRIM1#

 1
67777-2012004

AT17#,CT170,ST170..S,SG,SGEXT

BLUE,TRIM8#

 1
67777-2012006

AT17#,CT17#,ET176,ST170..S,SG,SGEXT,SX

SABLE,TRIM4#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-2012006

ST170..SX;AT17#,CT17#,ET176..S,SG,SGEXT

SABLE,TRIM4#

 1
67777-2012003

ST170..SX;AT17#,CT17#,ET176..S,SG,SGEXT

GRAY,TRIM1#

 1
67777-2012004

AT17#,CT170,ST170..S,SG,SGEXT

BLUE,TRIM8#

 1
67777-2012006

AT17#,CT17#,ET176,ST170..S,SG,SGEXT,SX

SABLE,TRIM4#

 1
67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
69751-2006044

AT17#,CT170,ST170..S,SE,SG,SGEXT

DARK BLUE,TRIM8#

 1
69751-2006003

CT176,ET176..SG;AT17#,CT170,ST170

SHADOW GRAY,TRIM1#

 1
69751-2006036

AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX

SABLE,TRIM4#

 1
67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
69751-2006044

AT17#,CT170,ST170..S,SE,SG,SGEXT

DARK BLUE,TRIM8#

 1
69751-2006003

CT176,ET176..SG;AT17#,CT170,ST170

SHADOW GRAY,TRIM1#

 1
69751-2006036

AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX

SABLE,TRIM4#

 1
67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
69751-2006036

AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX

SABLE,TRIM4#

 1
69751-2006003

CT176,ET176..SG;AT17#,CT170,ST170

SHADOW GRAY,TRIM1#

 1
69751-2006044

AT17#,CT170,ST170..S,SE,SG,SGEXT

DARK BLUE,TRIM8#

 1
67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
69751-2006036

AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX

SABLE,TRIM4#

 1
69751-2006003

CT176,ET176..SG;AT17#,CT170,ST170

SHADOW GRAY,TRIM1#

 1
69751-2006044

AT17#,CT170,ST170..S,SE,SG,SGEXT

DARK BLUE,TRIM8#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-20270

CT176,ET176..SG;AT17#,CT170,ST170

左側

 1
68170-20360

CT176,ET176..SG;AT17#,CT170,ST170

右側

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-20270

CT176,ET176..SG;AT17#,CT170,ST170

左側

 1
68170-20360

CT176,ET176..SG;AT17#,CT170,ST170

右側

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-20270

CT176,ET176..SG;AT17#,CT170,ST170

左側

 1
68170-20360

CT176,ET176..SG;AT17#,CT170,ST170

右側

 1
Common parts
90164-60008
90168-40025
90168-40068
90189-06010
Linked diagrams
7401
