AT175-CEPFK (1988)

Toyota Carina Ff

Production Aug 1988 - May 1990
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4AFE..AT175

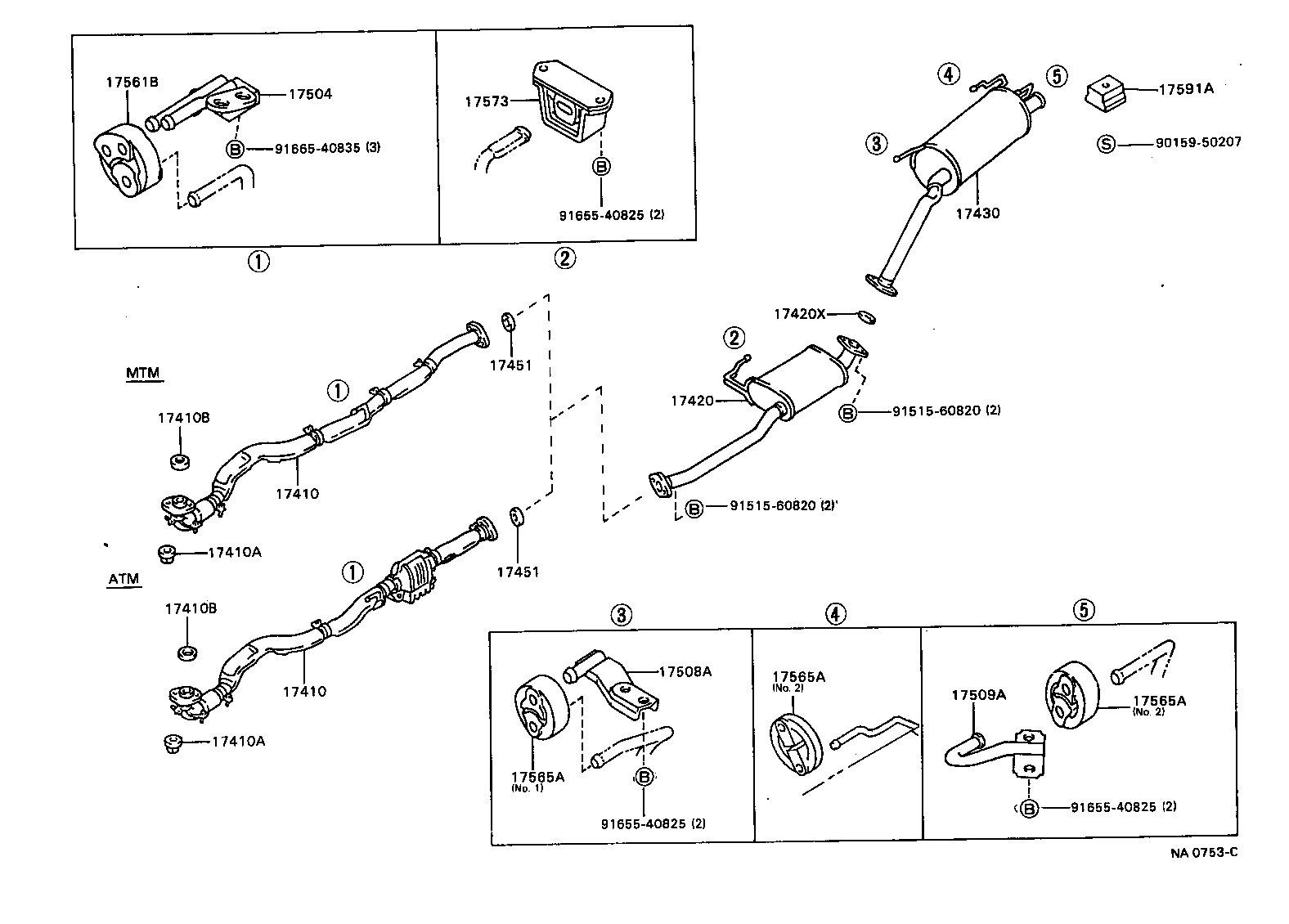

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17451 17451 17504 17508A 17509A 17561B 17565A 17565A 17565A 17573 17591A 9015950207 9151560820 9151560820 9165540825 9165540825 9165540825 9166540835
Part # Description Qty Price
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE,5AF#,2C,3E,4SF#..AT17#,CT17#,ET176,ST170

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE,5AF#,2C,3E,4SF#..AT17#,CT17#,ET176,ST170

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

4AFE,5AF,2C,3E..AT17#,CT17#,ET176

 1
90917-06004

4AFE,5AF,2C..AT17#,CT17#

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

4AFE,5AF,2C,3E..AT17#,CT17#,ET176

 1
90917-06004

4AFE,5AF,2C..AT17#,CT17#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-16300

4AFE..AT175

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

4AFE,5AF,3E..AT17#,ET176

 1
90917-06004

4AFE,5AF..AT17#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-16660

4AFE..AT175

 1
17430-16661

4AFE..AT175

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AFE,5AF,2C,4SFI..AT17#,CT17#,ST170

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AFE,5AF,2C,4SFI..AT17#,CT17#,ST170

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-74020

4AF#,4AGE,5AF#,3E,4SF#..AT17#,ET176,ST170

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-36011

4AF#,4AGE,5AF#,2C,4SF#..AT17#,CT170,ST170

 1
Common parts
90159-50207
91515-60820
91655-40825
91665-40835
