AT175-CEMMK (1988)

Toyota Carina Ff

Production Aug 1988 - Aug 1992
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805-9005)4A#..5F ; (9005- )4AF#,4AGE,5AFE..MTM

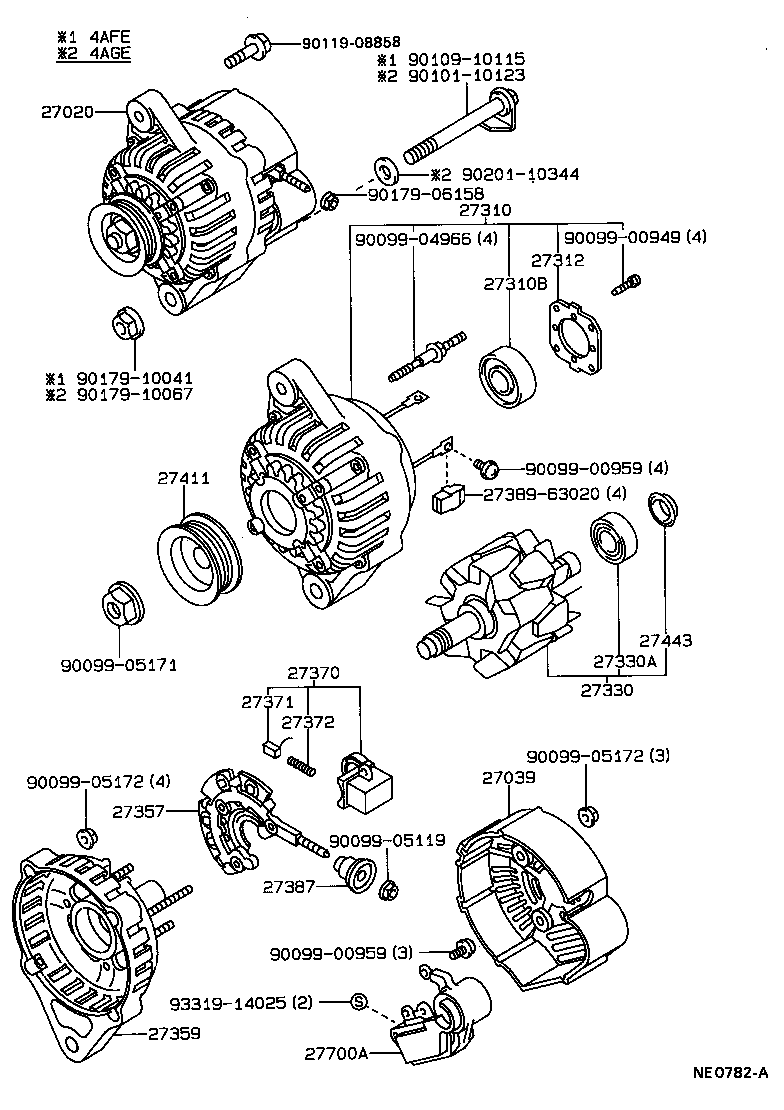

Click highlighted areas on diagram

12V 70A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27372 27387 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9010110123 9010910115 9011908858 9017906158 9017910041 9017910067 9020110344 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-16170

4AF#,5AFE..AT17#..MTM

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72010

4A#,4SFI..AT171,175,ST170..5F

 1
27039-72010

3E..ET176..3FC;4AF#,4AGE,5AFE,4SFI..AT17#,ST170..MTM

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16190

4AF#,5AFE..AT17#..MTM

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

4A#,4SFI..AT171,175,ST170..5F

 1
27312 - PLATE, RETAINER
27312-70200

4A#,4SFI..AT171,175,ST170..5F

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

4A#,4SFI..AT171,175,ST170..5F

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

3E..ET176..3FC;4AF#,4AGE,5AF#,4SF#..AT17#,ST170

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

4A#,4SFI..AT171,175,ST170..5F

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16151

4AF#,5AFE..AT17#..MTM

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

4AF#,5AF#,4SF#..AT17#,ST170..MTM

 1
27370-70300

4AF#,5AFE..AT17#..MTM

 1
27371 - BRUSH, ALTERNATOR
27371-63020

4AF#,5AFE,3E,4SFE..AT17#,ET176,ST170..MTM

 2
27371-63020

4A#,5AF,3E,4SFI..AT17#,ET176,ST170..MTM

 2
27371-63020

4A#,5AF,3E,4SFI..AT17#,ET176,ST170..3FC,4F,5F

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

4A#,5AF,3E,4SFI..AT17#,ET176,ST170..3FC,4F,5F

 2
27372-72100

4A#,5AF,3E,4SFI..AT17#,ET176,ST170..MTM

 2
27372-72100

4AF#,4AGE,5AFE,3E,4SFE..AT17#,ET176,ST170..3FC,4F,5F

 2
27387 - INSULATOR, TERMINAL
27387-70170

3E..ET176..3FC;4AF#,4AGE,5AF#,4SFI..AT17#,ST170..MTM

 1
27411 - PULLEY, ALTERNATOR
27411-16180

4AF#,4AGE,5AFE,4SF#..AT17#,ST170..MTM

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

5AF..AT170..4FC;4A#,3E,4SFI..AT171,175,ET176,ST170..4F,4FC,5F

 1
27700A - REGULATOR ASSY, GENERATOR
27700-70030

4AF#,5AF#..AT17#;3E,4SFI..ET176,ST170..ATM

 1
27700-70030

4AFE,5AF..AT17#;4SFI..ST170..4FC

 1
Common parts
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90101-10123
90109-10115
90119-08858
90179-06158
90179-10041
90179-10067
90201-10344
93319-14025
