AT175-CEMMK (1988)

Toyota Carina Ff

Production Aug 1988 - Aug 1992
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4AF#,4AGE,5AF#

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

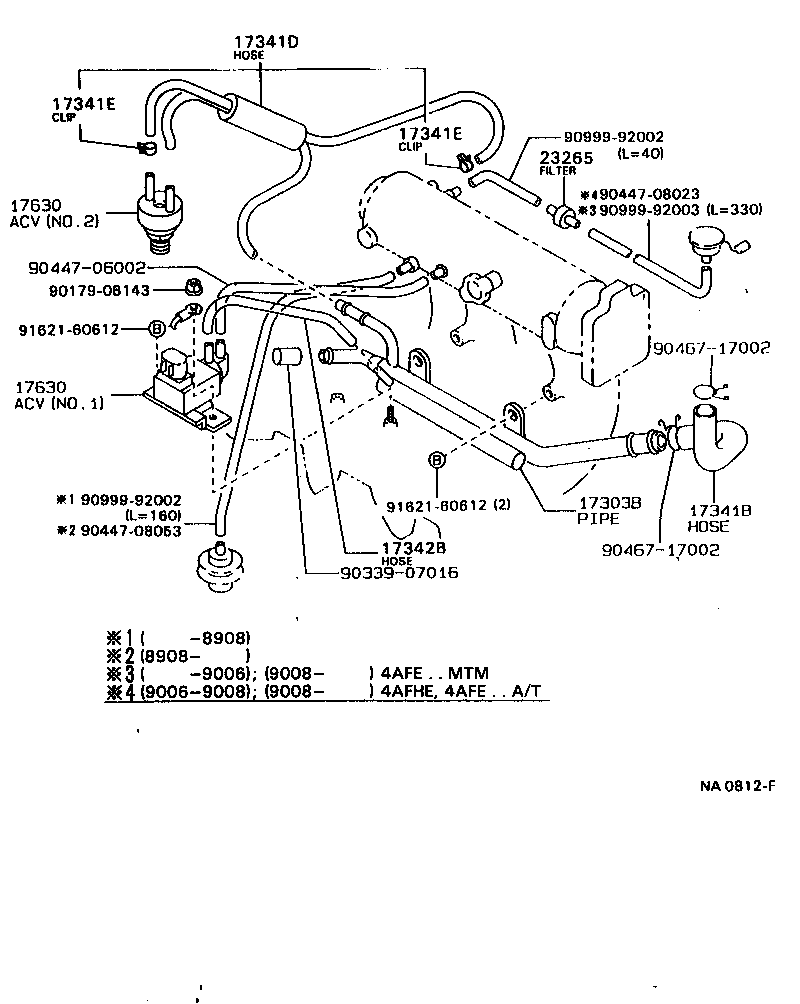

(8808- )4AFE..AT175 ; (9005- )4AFHE

Click highlighted areas on diagram

diagram 17303B 17341B 17341D 17341E 17341E 17342B 17630 17630 23265 9017906143 9033907016 9044706002 9044708023 9044708053 9046717002 9046717002 9099992002 9099992002 9099992003 9162160612 9162160612
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-16120

4AFE..AT175;4AFHE..AT171

 1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-15130

4AF#,5AFE..AT17#

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-15150

4AFE..AT171,175

 1
17302-16020

4AF#..AT171,175

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-16090

4AFE..AT175;4AFHE..AT171

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15060

4AFE..AT175

NO.2

 1
17630-16060

4AFE..AT175;4AFHE..AT171

NO.1

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15060

4AFE..AT175

NO.2

 1
17630-16060

4AFE..AT175;4AFHE..AT171

NO.1

 1
23265 - FILTER, GAS, NO.1
90917-11021

4AF#..AT171,175

 1
Common parts
90179-06143
90339-07016
90447-06002
90447-08023
90447-08053
90467-17002
90999-92002
90999-92003
91621-60612
