AT175-CEMFK (1988)

Toyota Carina Ff

Production Aug 1988 - May 1990
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8805-9005)AT171,ST170..S,SGEXT,SX ; (8805- )DX,SG,STD,SV

Click highlighted areas on diagram

LEVER CONTROL TYPE

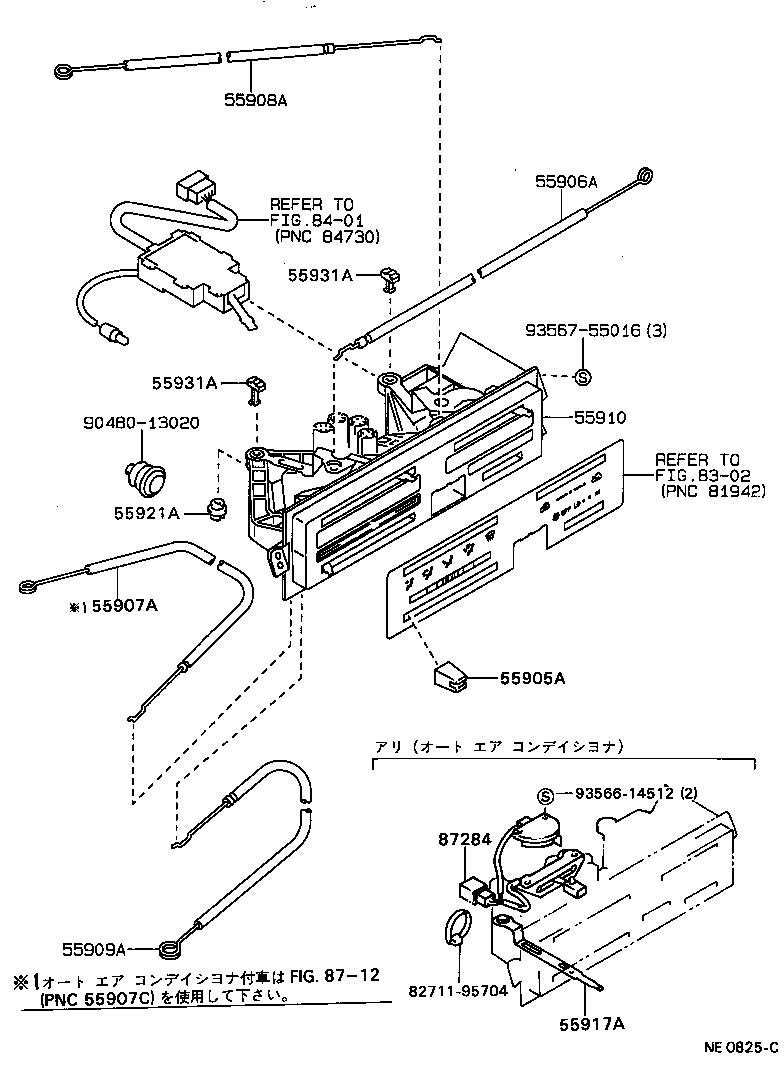

diagram 55905A 55906A 55907A 55908A 55909A 55910 55917A 55921A 55931A 55931A 8271195704 8302 8401 87284 9048013020 9356614512 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12130

ST170..(SGEXT,SX)..CI;AT17#,CT17#,ET176..(DX,S,SG,STD,SV)..(CBR,DSL,EFI)

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20270

ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20200

ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV

 1
55907-20220

ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20150

ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20090

ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20540

ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV

 1
55921A - RETAINER, HEATER CONTROL
55921-20100

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

 1
55921-20110

AT170,175,CT17#,ET176..DX,SG,STD,SV

 1
55931A - SHAFT, HEATER CONTROL LEVER
55931-20080

AT170,175,CT17#,ET176..DX,SG,STD,SV

LH

 1
55931-20090

AT170,175,CT17#,ET176..DX,SG,STD,SV

RH

 1
55931A - SHAFT, HEATER CONTROL LEVER
55931-20080

AT170,175,CT17#,ET176..DX,SG,STD,SV

LH

 1
55931-20090

AT170,175,CT17#,ET176..DX,SG,STD,SV

RH

 1
Common parts
82711-95704
90480-13020
93566-14512
93567-55016
