AT171-CEPVF (1988)

Toyota Carina Ff

Production May 1988 - Aug 1992
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

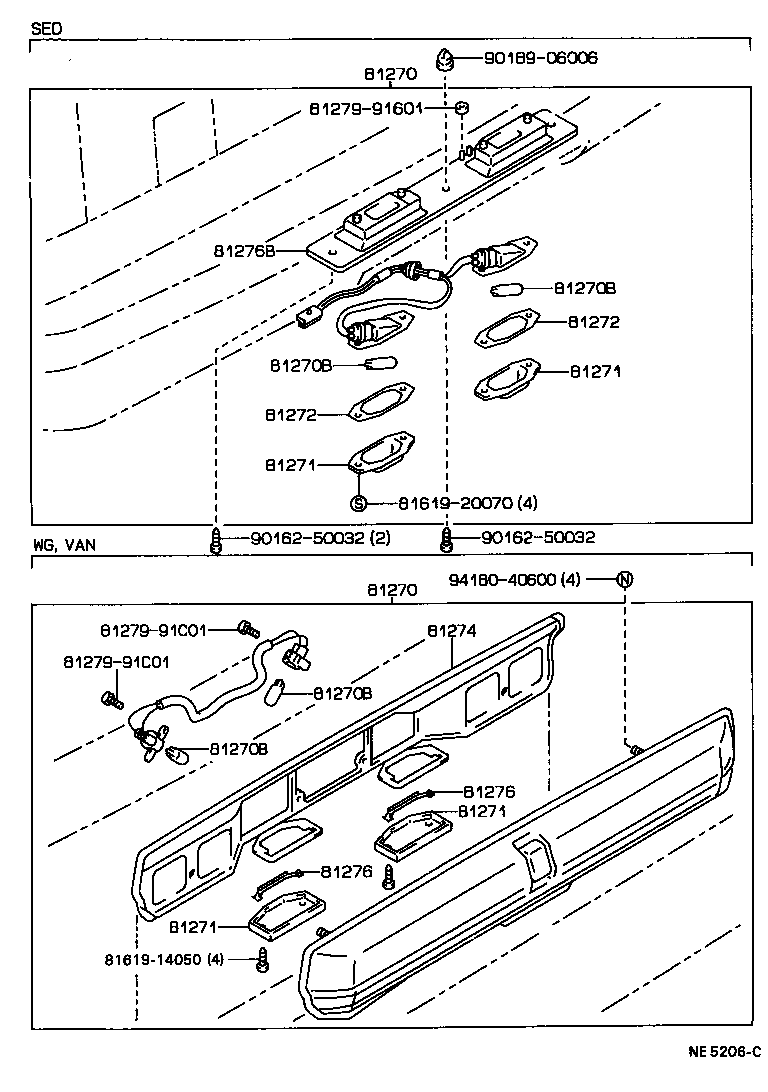

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81270B 81271 81271 81271 81271 81272 81272 81274 81276 81276 81276B 8127991601 8127991C01 8127991C01 8161914050 8161920070 9016250032 9016250032 9018906006 9418040600
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-16220

AT17#,CT170,ST170..SED

 1
81270-20490

AT17#,CT170,ST170..SED

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-16220

AT17#,CT170,ST170..SED

 1
81270-20490

AT17#,CT170,ST170..SED

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AT17#,CT17#,ET176,ST170

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AT17#,CT17#,ET176,ST170

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AT17#,CT17#,ET176,ST170

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AT17#,CT17#,ET176,ST170

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-20490

AT17#,CT170,ST170..SED

 2
81271-24010

AT17#,CT170,ST170..SED

 2
81271 - LENS, LICENSE PLATE LAMP
81271-20490

AT17#,CT170,ST170..SED

 2
81271-24010

AT17#,CT170,ST170..SED

 2
81271 - LENS, LICENSE PLATE LAMP
81271-20490

AT17#,CT170,ST170..SED

 2
81271-24010

AT17#,CT170,ST170..SED

 2
81271 - LENS, LICENSE PLATE LAMP
81271-20490

AT17#,CT170,ST170..SED

 2
81271-24010

AT17#,CT170,ST170..SED

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-24010

AT17#,CT170,ST170..SED

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-24010

AT17#,CT170,ST170..SED

 2
81276B - COVER, LICENSE PLATE LAMP
81276-16160

AT17#,CT170,ST170..SED

 1
Common parts
81279-91601
81279-91C01
81619-14050
81619-20070
90162-50032
90189-06006
94180-40600
