AT171-CEPVF (1988)
Toyota Carina Ff
(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55063-20030 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55064A - REGISTER SUB-ASSY, INSTRUMENT, NO.4 | ||||
| 55064-20030 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-2002004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55300-2002003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 55300-2002014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55300-2002006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 55305A - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, RH | ||||
| 55305-20170 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55351-20150 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-20150 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-20150 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-20090 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-20090 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-20060 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-20100 |
AT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 55405-20090 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-20590 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-20380 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-20090 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55422B - PAD, FRONT BUMPER SIDE | ||||
| 55422-20070 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 55422B - PAD, FRONT BUMPER SIDE | ||||
| 55422-20070 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-2023006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 55432-2023003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 55432-2023004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55432-2023014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-2014001 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLACK,TRIM1#,4#,8# |
1 | ||
| 55441-2014001 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLACK,TRIM1#,4#,8# |
1 | ||
| 55441-2014001 |
AT17#,CT170,ST170..S,SG,SGEXT BLACK,TRIM1#,4#,8# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-2014001 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLACK,TRIM1#,4#,8# |
1 | ||
| 55441-2014001 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLACK,TRIM1#,4#,8# |
1 | ||
| 55441-2014001 |
AT17#,CT170,ST170..S,SG,SGEXT BLACK,TRIM1#,4#,8# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-20150 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-20070 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-2016004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55550-2016003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 55550-2016006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 55550-2016014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05080 |
AT17#,CT17#,ET176,ST170 L=26.7 |
2 | ||
| 90541-03015 |
AT17#,CT17#,ET176,ST170 長さ=23 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-2401001 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLACK,TRIM1#,4#,8# |
1 | ||
| 55539-2401001 |
AT171,CT176,ET176,ST170..DX,GLIM,SX BLACK,TRIM1#,4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-2401001 |
CT176,ET176..DX,SG;AT170,171,ST170..GLIM,SV,SX BLACK,TRIM1#,4# |
1 | ||
| 55539-2401001 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLACK,TRIM1#,4#,8# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-12040 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-2006004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 55565-2006014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 55565-2006006 |
AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 55565-2006003 |
AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-32010 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-20040 |
AT171..EFIS;AT171,CT17#,ST170..DX,GLIM,SE,SG,SGEXT,SV,SX |
1 | ||
| 55611 - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-2011004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55611-2011003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 55611-2011014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55611-2011006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-20200 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-2015004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55660-2015003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 55660-2015006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 55660-2015014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-1403014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 55680-1403016 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 55680-14030J0 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 55680-1403024 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 55680-1403013 |
AT17#,CT17#,ET176,ST170 SHADOW GRAY,TRIM1# |
1 | ||
| 55850 - CONNECTOR ASSY, INSTRUMENT PANEL REGISTER, CENTER | ||||
| 55850-20010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-2016004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55961-2016006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 55961-2016014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55961-2016003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-2016004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55962-2016003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 55962-2016014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 55962-2016006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06016 | ||||
| 90119-06106 | ||||
| 90151-40005 | ||||
| 90159-50068 | ||||
| 90161-26007 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90183-05094 | ||||
| 90254-04016 | ||||
| 90467-14014 | ||||
| 90468-04157 | ||||
| 90468-05074 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||
| 93568-55014 | ||||

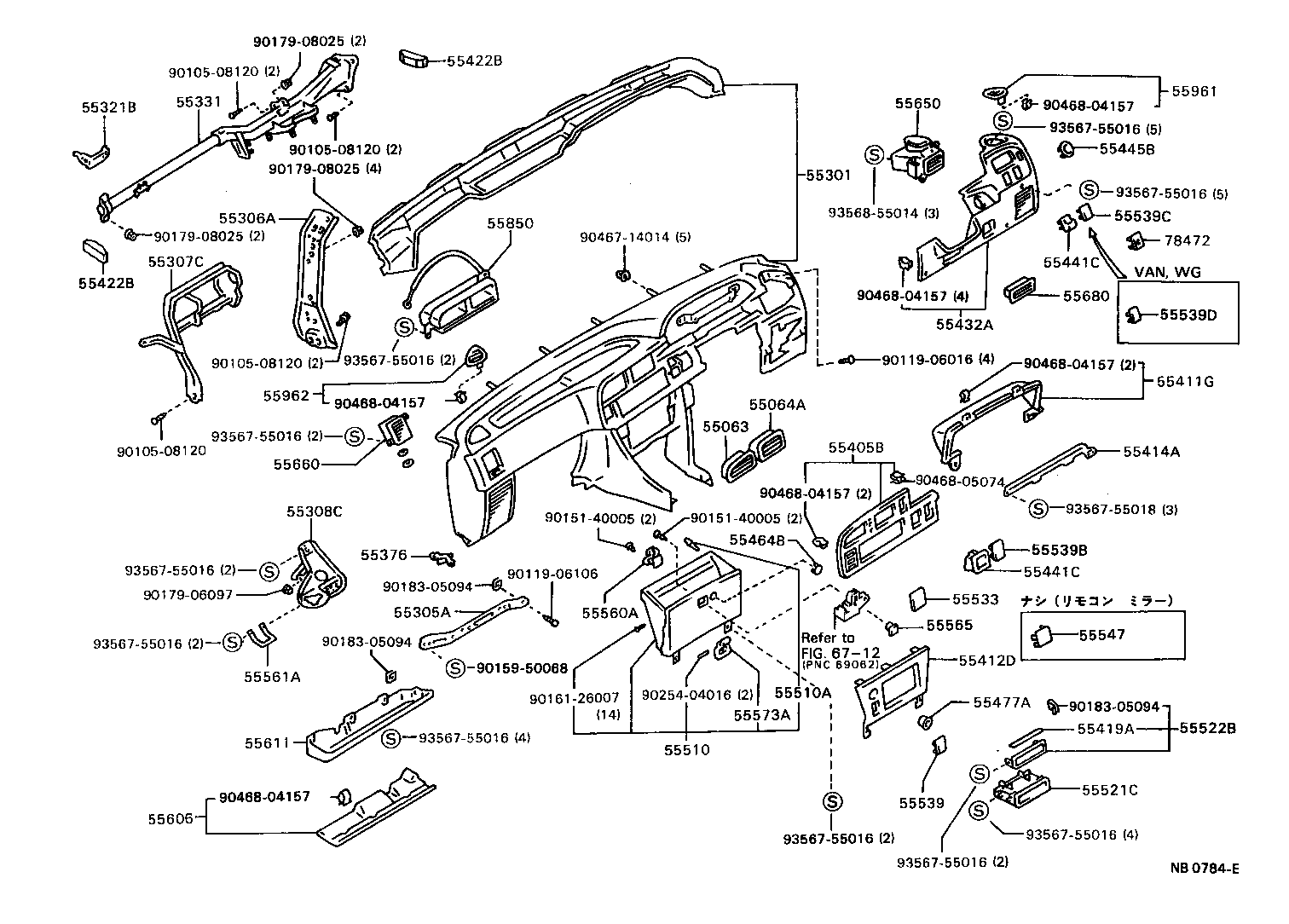

| Linked diagrams | ||||
| 6712 | ||||
