AT171-CEPVF (1988)
Toyota Carina Ff

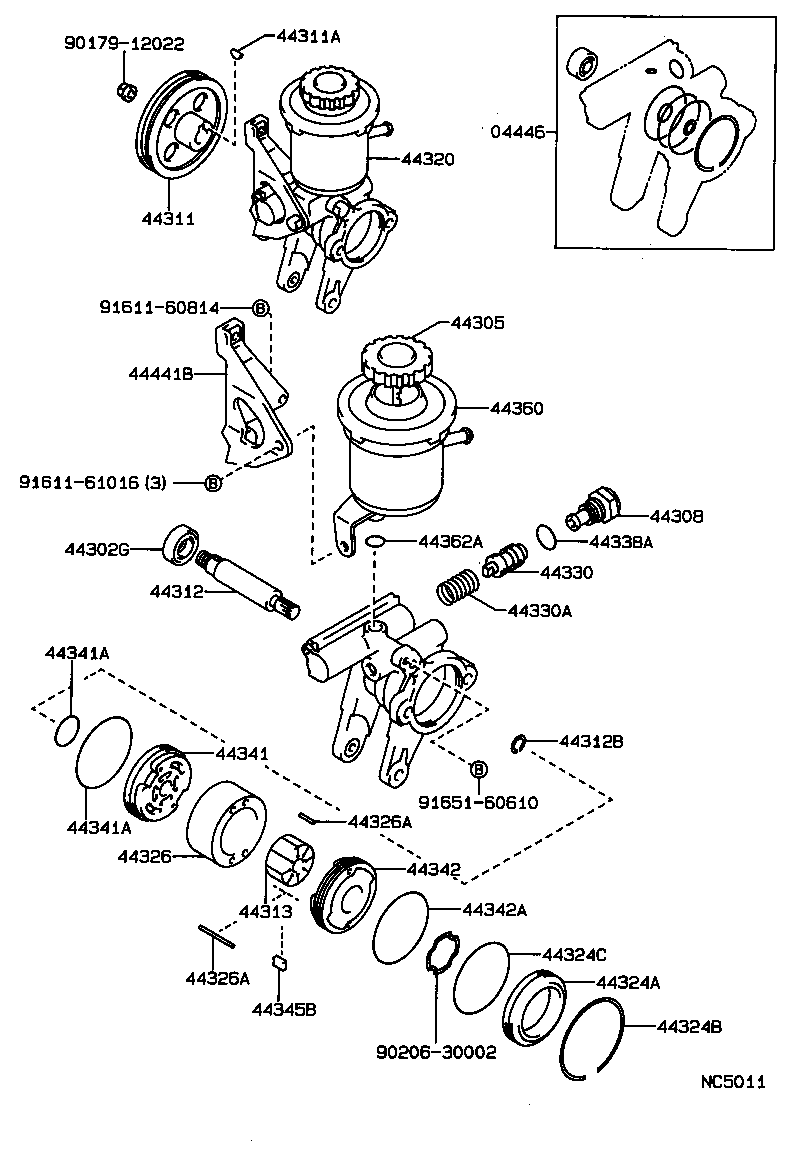

(8805- )AT17#..DX,S,SE,SG,SGEXT,SV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-16030 |
AT17#,CT17# |
1 | ||
| 04446-20030 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 04446-20030 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-12010 |
AT17#..DX,S,SE,SG,SGEXT,SV |
1 | ||
| 44305-32010 |
AT171,CT17#,ET176,ST170..DX,GLIM,SE,SG,SGEXT,STD,SX |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-20020 |
AT170,171,ST170 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12040 |
AT17#..DX,S,SE,SG,SGEXT,SV |
1 | ||
| 44311-12070 |
AT171..GLIM |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
AT17#,CT17#,ET176,ST170..DX,GLIM,SE,SG,SGEXT,STD,SV,SX |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,SE,SG,SGEXT,STD,SV,SX |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22070 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 3 |
1 | ||
| 44313-22050 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 1 |
1 | ||
| 44313-22060 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 2 |
1 | ||
| 44313-22040 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ無し |
1 | ||
| 44313-22080 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 4 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-20201 |
AT171..S |
1 | ||
| 44320-20191 |
AT171..GLIM |
1 | ||
| 44320-20192 |
AT171..EFI |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-52001 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12110 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ無し |
1 | ||
| 44325-12150 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 4 |
1 | ||
| 44325-12140 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 3 |
1 | ||
| 44325-12130 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 2 |
1 | ||
| 44325-12120 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
AT17#,CT17#,ET176,ST170 長さ=28,外径=4.0 |
1 | ||
| 90250-04049 |
AT17#,CT17#,ET176,ST170 長さ=43,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
AT17#,CT17#,ET176,ST170 長さ=28,外径=4.0 |
1 | ||
| 90250-04049 |
AT17#,CT17#,ET176,ST170 長さ=43,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12140 |
AT171,CT17#..DX,GLIM,SE,SG ﾏｰｸ B |
1 | ||
| 44330-12160 |
AT171,CT17#..DX,GLIM,SE,SG ﾏｰｸ D |
1 | ||
| 44330-14020 |
AT171,175,ST170..S,SE,SG,SGEXT,SX ﾏｰｸ B |
1 | ||
| 44330-12180 |
AT171,CT17#..DX,GLIM,SE,SG ﾏｰｸ F |
1 | ||
| 44330-14010 |
AT171,175,ST170..S,SE,SG,SGEXT,SX ﾏｰｸ A |
1 | ||
| 44330-12170 |
AT171,CT17#..DX,GLIM,SE,SG ﾏｰｸ E |
1 | ||
| 44330-12130 |
AT171,CT17#..DX,GLIM,SE,SG ﾏｰｸ A |
1 | ||
| 44330-14040 |
AT171,175,ST170..S,SE,SG,SGEXT,SX ﾏｰｸ D |
1 | ||
| 44330-12150 |
AT171,CT17#..DX,GLIM,SE,SG ﾏｰｸ C |
1 | ||
| 44330-12160 |
AT171,CT170..GLIM,SE,SG ﾏｰｸ D |
1 | ||
| 44330-14060 |
AT171,175,ST170..S,SE,SG,SGEXT,SX ﾏｰｸ F |
1 | ||
| 44330-14050 |
AT171,175,ST170..S,SE,SG,SGEXT,SX ﾏｰｸ E |
1 | ||
| 44330-14030 |
AT171,175,ST170..S,SE,SG,SGEXT,SX ﾏｰｸ C |
1 | ||
| 44330-12170 |
AT171,CT170..GLIM,SE,SG ﾏｰｸ E |
1 | ||
| 44330-12150 |
AT171,CT170..GLIM,SE,SG ﾏｰｸ C |
1 | ||
| 44330-12180 |
AT171,CT170..GLIM,SE,SG ﾏｰｸ F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
AT17#,CT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX 内径=19.5,外径=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
AT17#,CT17#,ET176,ST170 外側 |
1 | ||
| 90301-25001 |
AT17#,CT17#,ET176,ST170 内側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
AT17#,CT17#,ET176,ST170 外側 |
1 | ||
| 90301-25001 |
AT17#,CT17#,ET176,ST170 内側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12020 |
AT17#,CT17#,ET176,ST170 長さ=14.995 |
10 | ||
| 44345-12030 |
AT17#,CT17#,ET176,ST170 長さ=14.993 |
10 | ||
| 44345-12010 |
AT17#,CT17#,ET176,ST170 長さ=14.997 |
10 | ||
| 44345-12050 |
AT17#,CT17#,ET176,ST170 長さ=14.989 |
10 | ||
| 44345-12040 |
AT17#,CT17#,ET176,ST170 長さ=14.991 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-20130 |
AT171..GLIM |
1 | ||
| 44306-20070 |
AT17#..DX,S,SE,SG,SGEXT,SV |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-12003 |
AT17#..DX,S,SE,SG,SGEXT,SV |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-12040 |
AT17#..DX,S,SE,SG,SGEXT,SV |
1 | ||
| Common parts | ||||
| 90179-12022 | ||||
| 90206-30002 | ||||
| 91611-60814 | ||||
| 91611-61016 | ||||
| 91651-60610 | ||||

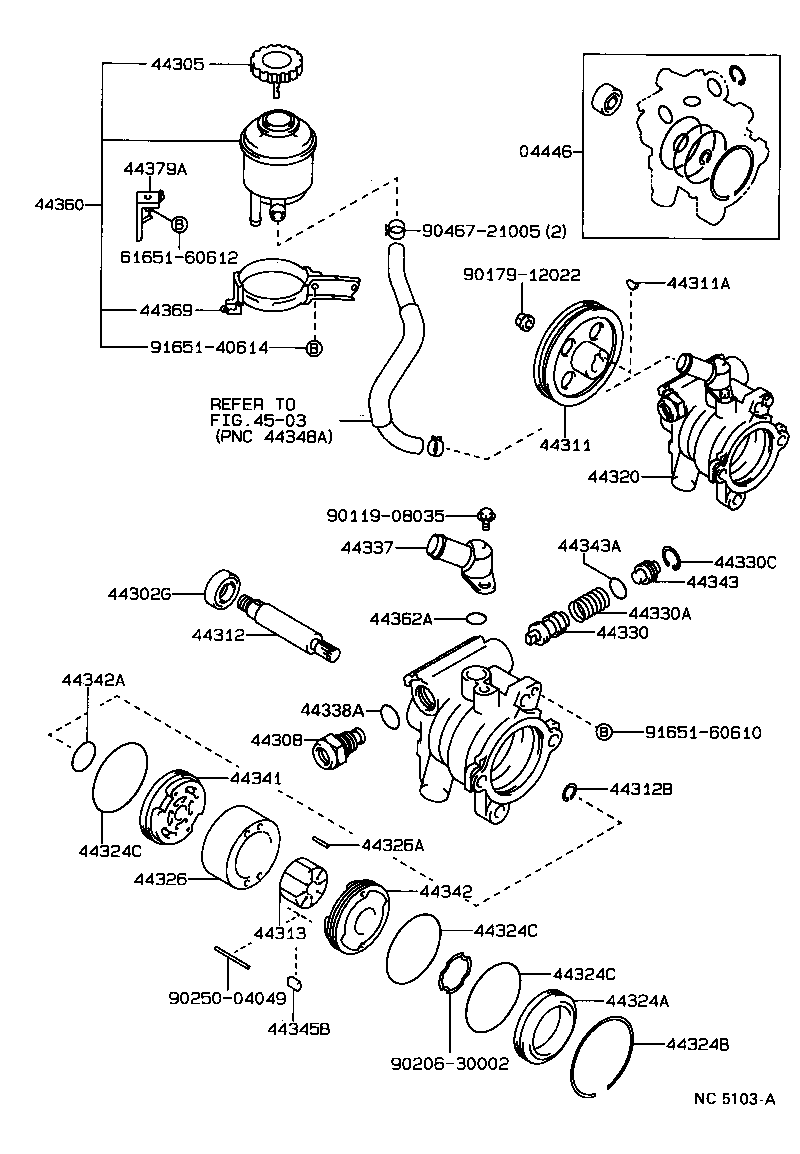

(8805- )GLIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-16030 |
AT17#,CT17# |
1 | ||
| 04446-20030 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 04446-20030 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-12010 |
AT17#..DX,S,SE,SG,SGEXT,SV |
1 | ||
| 44305-32010 |
AT171,CT17#,ET176,ST170..DX,GLIM,SE,SG,SGEXT,STD,SX |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-20020 |
AT170,171,ST170 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12040 |
AT17#..DX,S,SE,SG,SGEXT,SV |
1 | ||
| 44311-12070 |
AT171..GLIM |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
AT17#,CT17#,ET176,ST170..DX,GLIM,SE,SG,SGEXT,STD,SV,SX |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,SE,SG,SGEXT,STD,SV,SX |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22070 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 3 |
1 | ||
| 44313-22050 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 1 |
1 | ||
| 44313-22060 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 2 |
1 | ||
| 44313-22040 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ無し |
1 | ||
| 44313-22080 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 4 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-20201 |
AT171..S |
1 | ||
| 44320-20191 |
AT171..GLIM |
1 | ||
| 44320-20192 |
AT171..EFI |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-52001 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-52001 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-52001 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12110 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ無し |
1 | ||
| 44325-12150 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 4 |
1 | ||
| 44325-12140 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 3 |
1 | ||
| 44325-12130 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 2 |
1 | ||
| 44325-12120 |
AT17#,CT17#,ET176,ST170 ﾏｰｸ 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
AT17#,CT17#,ET176,ST170 長さ=28,外径=4.0 |
1 | ||
| 90250-04049 |
AT17#,CT17#,ET176,ST170 長さ=43,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12140 |
AT171,CT17#..DX,GLIM,SE,SG ﾏｰｸ B |
1 | ||
| 44330-12160 |
AT171,CT17#..DX,GLIM,SE,SG ﾏｰｸ D |
1 | ||
| 44330-14020 |
AT171,175,ST170..S,SE,SG,SGEXT,SX ﾏｰｸ B |
1 | ||
| 44330-12180 |
AT171,CT17#..DX,GLIM,SE,SG ﾏｰｸ F |
1 | ||
| 44330-14010 |
AT171,175,ST170..S,SE,SG,SGEXT,SX ﾏｰｸ A |
1 | ||
| 44330-12170 |
AT171,CT17#..DX,GLIM,SE,SG ﾏｰｸ E |
1 | ||
| 44330-12130 |
AT171,CT17#..DX,GLIM,SE,SG ﾏｰｸ A |
1 | ||
| 44330-14040 |
AT171,175,ST170..S,SE,SG,SGEXT,SX ﾏｰｸ D |
1 | ||
| 44330-12150 |
AT171,CT17#..DX,GLIM,SE,SG ﾏｰｸ C |
1 | ||
| 44330-12160 |
AT171,CT170..GLIM,SE,SG ﾏｰｸ D |
1 | ||
| 44330-14060 |
AT171,175,ST170..S,SE,SG,SGEXT,SX ﾏｰｸ F |
1 | ||
| 44330-14050 |
AT171,175,ST170..S,SE,SG,SGEXT,SX ﾏｰｸ E |
1 | ||
| 44330-14030 |
AT171,175,ST170..S,SE,SG,SGEXT,SX ﾏｰｸ C |
1 | ||
| 44330-12170 |
AT171,CT170..GLIM,SE,SG ﾏｰｸ E |
1 | ||
| 44330-12150 |
AT171,CT170..GLIM,SE,SG ﾏｰｸ C |
1 | ||
| 44330-12180 |
AT171,CT170..GLIM,SE,SG ﾏｰｸ F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
AT171,CT17#,ST170..DX,GLIM,SE,SG,SGEXT,SV,SX |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-12030 |
AT171,ST170..GLIM,SE,SGEXT,SX |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
AT17#,CT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX 内径=19.5,外径=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
AT171..GLIM |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
AT171,CT17#,ST170..DX,GLIM,SE,SG,SGEXT,SV,SX |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12020 |
AT17#,CT17#,ET176,ST170 長さ=14.995 |
10 | ||
| 44345-12030 |
AT17#,CT17#,ET176,ST170 長さ=14.993 |
10 | ||
| 44345-12010 |
AT17#,CT17#,ET176,ST170 長さ=14.997 |
10 | ||
| 44345-12050 |
AT17#,CT17#,ET176,ST170 長さ=14.989 |
10 | ||
| 44345-12040 |
AT17#,CT17#,ET176,ST170 長さ=14.991 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-20130 |
AT171..GLIM |
1 | ||
| 44306-20070 |
AT17#..DX,S,SE,SG,SGEXT,SV |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-12003 |
AT17#..DX,S,SE,SG,SGEXT,SV |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-20100 |
AT171..GLIM |
1 | ||
| 44379A - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44379-20010 |
AT171..GLIM |
1 | ||
| Common parts | ||||
| 61651-60612 | ||||
| 90119-08035 | ||||
| 90179-12022 | ||||
| 90206-30002 | ||||
| 90250-04049 | ||||
| 90467-21005 | ||||
| 91651-40614 | ||||
| 91651-60610 | ||||
| Linked diagrams | ||||
| 4503 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
