AT171-CEPVF (1988)

Toyota Carina Ff

Production May 1988 - Aug 1992
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )4AGE

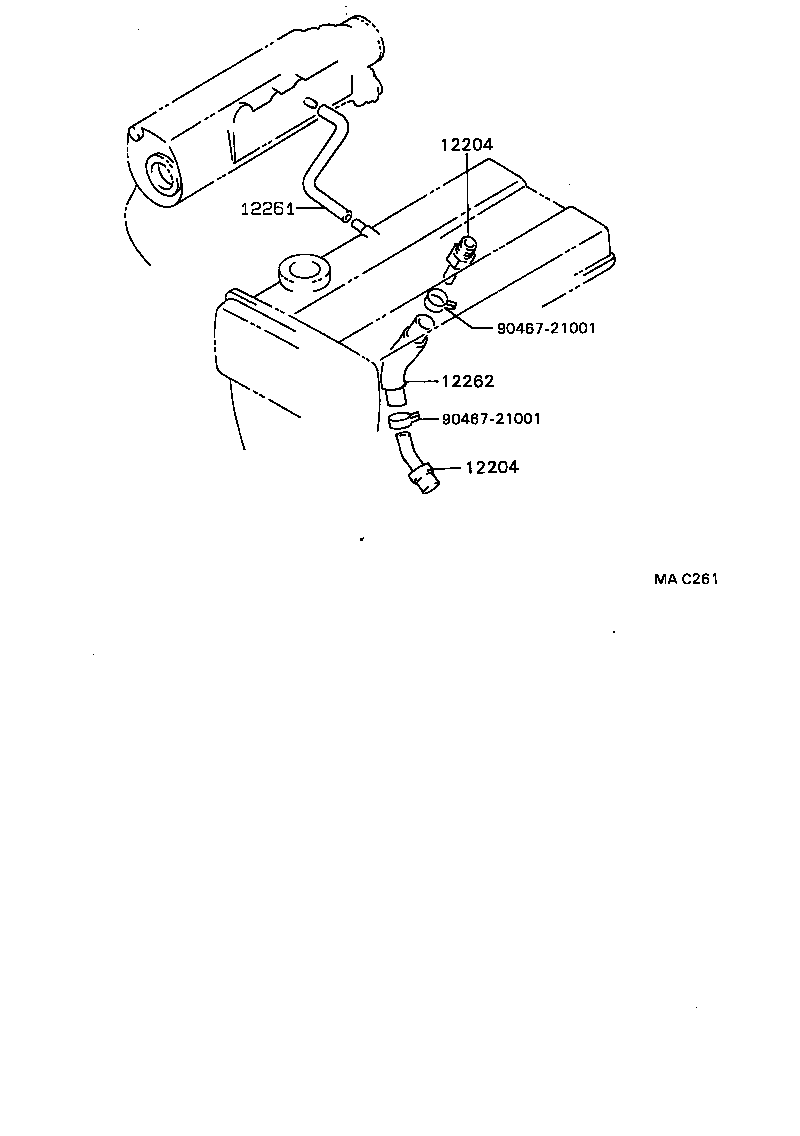

Click highlighted areas on diagram

diagram 12204 12204 12261 12262 9046721001 9046721001
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
90404-54038

4AGE..AT171

CYLINDER HEAD SIDE

 1
90406-17006

4AGE..AT171

CYLINDER BLOCK SIDE

 1
12204 - VALVE SUB-ASSY, VENTILATION
90404-54038

4AGE..AT171

CYLINDER HEAD SIDE

 1
90406-17006

4AGE..AT171

CYLINDER BLOCK SIDE

 1
12261 - HOSE, VENTILATION
12261-16031

4AGE..AT171

 1
12262 - HOSE, VENTILATION, NO.2
12262-16040

4AGE..AT171

 1
Common parts
90467-21001
