AT171-CEPVF (1988)

Toyota Carina Ff

Production May 1988 - Aug 1992
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )4AGE

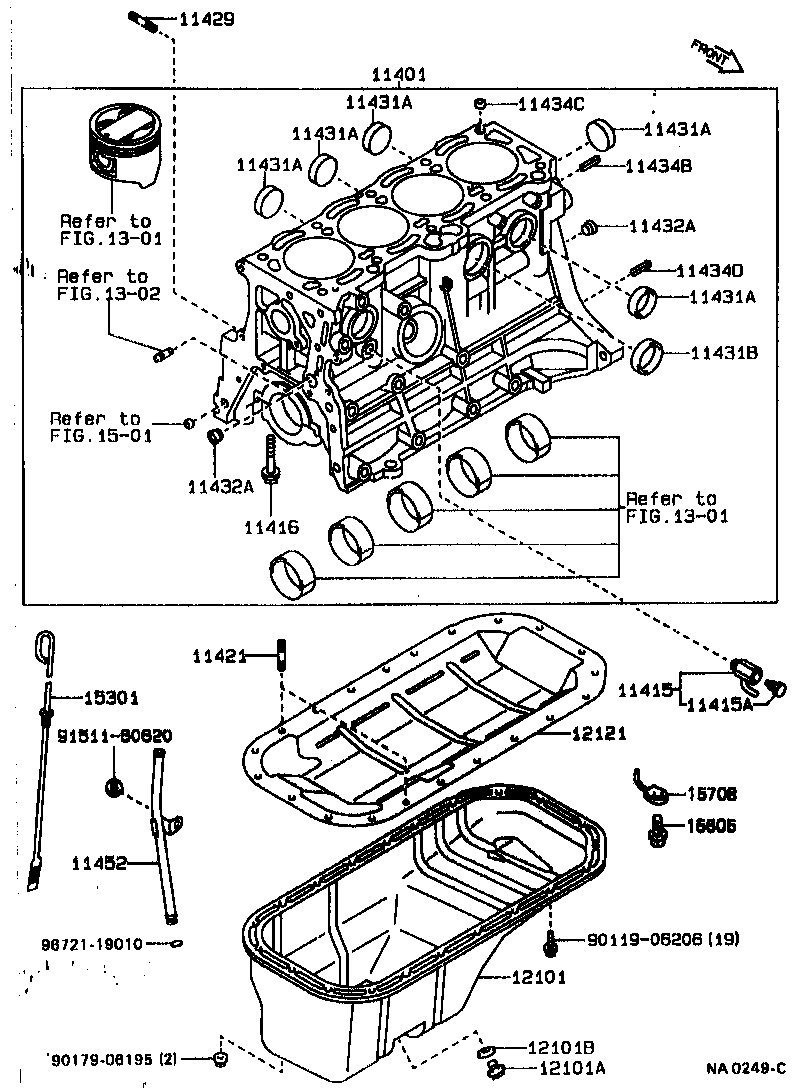

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11421 11429 11431A 11431A 11431A 11431A 11431A 11431B 11432A 11432A 11434B 11434C 11434D 11452 12101 12101A 12101B 12121 1301 1301 1302 1501 15301 15605 15708 9011906206 9017906195 9151160620 9672119010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19425

4AGE..AT171

 1
11401-19475

4AGE..AT171

 1
11401-19476

4AGE..AT171

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09088

4AGE..AT171

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-52003

4AGE..AT171

 1
90345-52013

4A#,5AF..AT170,171

 1
90910-09087

4AGE..AT171

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10007

4AF#,4AGE,5AF#..AT17#

 10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06022

4AF#,4AGE,5AF#..AT17#

 2
11429 - BOLT, STUD(FOR ALTERNATOR BRACKET)
90116-08170

4AGE..AT171

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

4AF#,4AGE..AT171,175

 6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

4AF#,4AGE..AT171,175

 6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

4AF#,4AGE..AT171,175

 6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

4AF#,4AGE..AT171,175

 6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

4AF#,4AGE..AT171,175

 6
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

4AF#,4AGE,5AF#..AT17#

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53008

4AF#,4AGE,5AF#..AT17#

 2
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53008

4AF#,4AGE,5AF#..AT17#

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

4AF#,4AGE,5AF#..AT17#

長さ=22,外径=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-13017

4AF#,4AGE,5AF#..AT17#

長さ=12,外径=13

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

4AF#,4AGE,5AF#..AT17#

長さ=14,外径=6

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-16030

4AGE..AT171

 1
11452-16010

4AGE..AT171

 1
12101 - PAN SUB-ASSY, OIL
12101-15070

4A#,5AF..AT170,171

 1
12101-16080

4AGE..AT171

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

4A#,5AF..AT17#

 1
90341-12026

4AF#,4AGE,5AFE..AT17#

 1
90341-12012

4AGE..AT171

 1
90341-12026

4AF#,4AGE,5AFE..AT17#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12019

4A#,5AF..AT17#

 1
90430-12019

4AGE..AT171

 1
90430-12019

4A#,5AF..AT17#

 1
90430-12027

4AF#,4AGE,5AFE..AT17#

 1
90430-12027

4AF#,4AGE,5AFE..AT17#

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12122-16011

4AGE..AT171

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-16041

4AGE..AT171

 1
15301-16060

4AGE..AT171

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15703-16010

4AGE..AT171

 4
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-16010

4AGE..AT171

NO.1,2,4

 3
15708-16020

4AGE..AT171

NO.3

 1
Common parts
90119-06206
90179-06195
91511-60620
96721-19010
Linked diagrams
1301
1302
1501
