AT171-CEPSK (1988)
Toyota Carina Ff
(8805- )

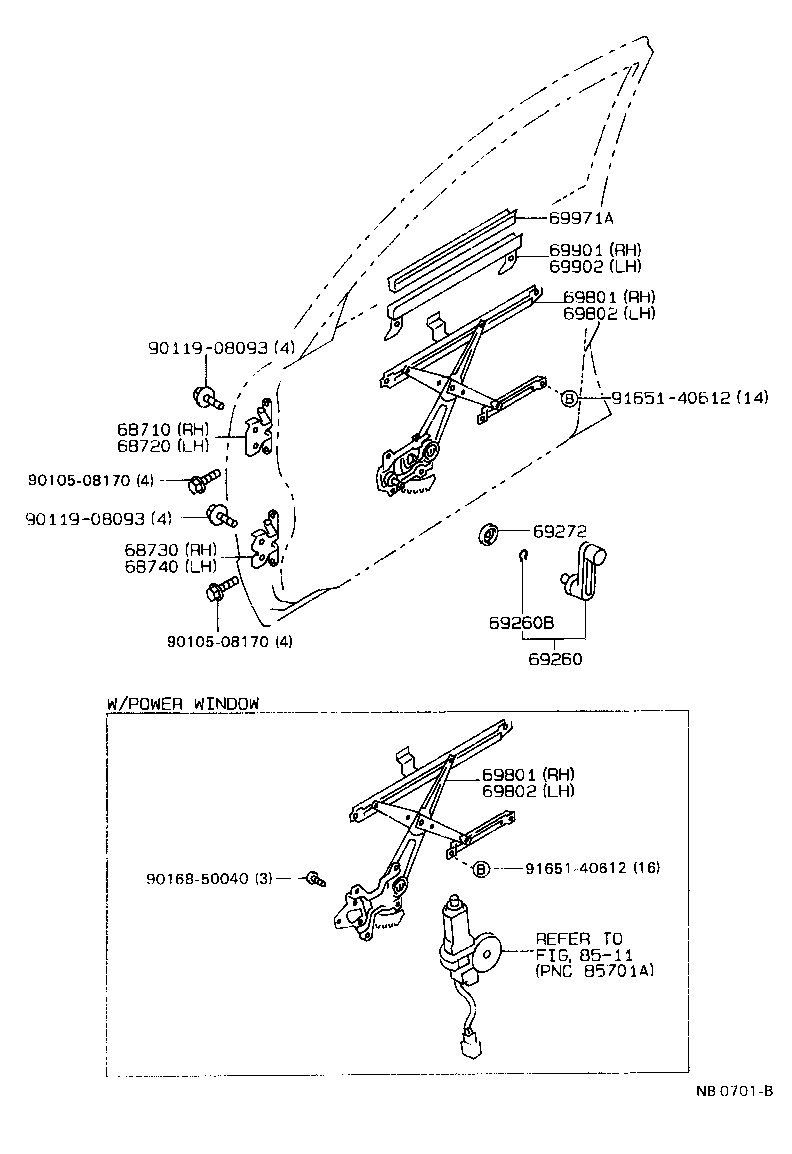

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-20060 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-20050 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-16010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-16010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR | ||||
| 69260-1402058 |
AT17#,CT170..S,SG,SV;CT176,ET176,ST170..DX,SG,SGEXT,SX SABLE,TRIM4# |
2 | ||
| 69260-1402054 |
ST170..SGEXT;AT17#,CT170..S,SG DARK BLUE,TRIM8# |
2 | ||
| 69260-1402033 |
ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV GRAY,TRIM1# |
2 | ||
| 69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE | ||||
| 90520-01002 |
ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
2 | ||
| 69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE | ||||
| 69285-2201008 |
ST170..SGEXT;AT17#,CT170..S,SG NATURAL WHITE,TRIM1#,4#,8# |
2 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-20150 |
AT170,171,ST170..S,SG,SGEXT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 69801-20150 |
ST170..SE..CI;AT17#,CT170,ST170..(GLIM,SE,SGEXT)..(CBR,DSL,EFI) |
1 | ||
| 69810-20170 |
ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-20150 |
AT170,171,ST170..S,SG,SGEXT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 69801-20150 |
ST170..SE..CI;AT17#,CT170,ST170..(GLIM,SE,SGEXT)..(CBR,DSL,EFI) |
1 | ||
| 69810-20170 |
ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-20150 |
AT170,171,ST170..S,SG,SGEXT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 69802-20150 |
ST170..SE..CI;AT17#,CT170,ST170..(GLIM,SE,SGEXT)..(CBR,DSL,EFI) |
1 | ||
| 69820-20170 |
ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-20150 |
AT170,171,ST170..S,SG,SGEXT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 69802-20150 |
ST170..SE..CI;AT17#,CT170,ST170..(GLIM,SE,SGEXT)..(CBR,DSL,EFI) |
1 | ||
| 69820-20170 |
ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
1 | ||
| 69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH | ||||
| 69901-20130 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH | ||||
| 69902-20060 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 69971A - FILLER, FRONT DOOR GLASS CHANNEL | ||||
| 69971-20010 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| Common parts | ||||
| 90105-08170 | ||||
| 90119-08093 | ||||
| 90168-50040 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8511 | ||||
