AT171-CEPSK (1988)
Toyota Carina Ff
(8805- )AT170,171,CT170,ST170 ; (9011- )
ｼﾝﾀｲｼﾖｳｶﾞｲｼﾔﾖｳ ｼﾔﾘﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-16050 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 47150-20230 |
AT170,171,ST170..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 47150-20160 |
AT171,175,CT176,ET176..DX,GLIM,SE,SG,SGEXT,STD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20520 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47311-20550 |
AT170,171..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20520 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47311-20550 |
AT170,171..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20520 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47311-20550 |
AT170,171..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10193 |
AT170,171..GLIM,S,SV;AT175,CT17#,ET176,ST170 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10193 |
AT170,171..GLIM,S,SV;AT175,CT17#,ET176,ST170 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20200 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20200 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20200 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20340 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47313-20370 |
AT170,171..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02565 |
AT170,171,CT17#,ET176,ST170 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02565 |
AT170,171,CT17#,ET176,ST170 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20280 |
AT170,171..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 47314-20300 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20400 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
AT171,175..GLIM,SE,SG,SGEXT |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AT171,175..GLIM,SE,SG,SGEXT |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AT171,175..GLIM,SE,SG,SGEXT |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02497 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02497 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02497 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02497 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20190 |
AT170,171,CT170,ST170 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20310 |
AT170,171,CT170,ST170 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-32040 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-32040 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-20060 |
AT170,171,CT170,ST170 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90461-06055 | ||||
| 90480-01359 | ||||
| 90949-01118 | ||||
| 90959-01274 | ||||
| 90959-01278 | ||||
| 91616-40614 | ||||
| 91656-B0616 | ||||
| 96991-10080 | ||||

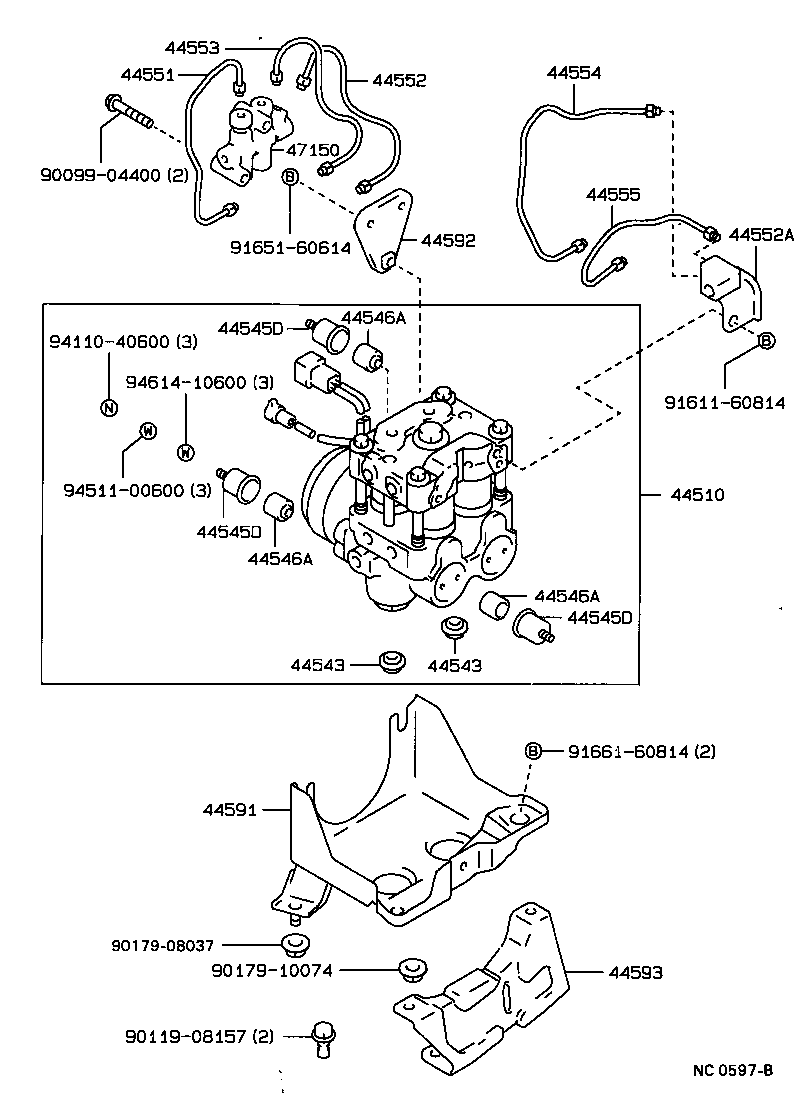

ILLUST NO. 2 OF 2(8805- )GLIM ; (8808-9005)AT170,171,ST170..S,SE ; (9006- )AT170,175..SE,SG,SG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-20030 |
AT170,171,ST170..S,SE |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
AT170,171,ST170..GLIM,S,SE |
2 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
AT170,171,ST170..GLIM,S,SE |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-14010 |
AT170,171,ST170..GLIM,S,SE |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-14010 |
AT170,171,ST170..GLIM,S,SE |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-14010 |
AT170,171,ST170..GLIM,S,SE |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-14010 |
AT170,171,ST170..GLIM,S,SE |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-14010 |
AT170,171,ST170..GLIM,S,SE |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-14010 |
AT170,171,ST170..GLIM,S,SE |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-20011 |
AT170,171,ST170..GLIM,S,SE |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-20031 |
AT170,171,ST170..GLIM,S,SE |
1 | ||
| 44552A - WAY, NO.2(FOR BRAKE ACTUATOR) | ||||
| 90413-10215 |
AT170,171,ST170..GLIM,S,SE |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-20011 |
AT170,171,ST170..GLIM,S,SE |
1 | ||
| 44554 - TUBE, BRAKE ACTUATOR, NO.4 | ||||
| 44554-20012 |
AT170,171,ST170..GLIM,S,SE |
1 | ||
| 44555 - TUBE, BRAKE ACTUATOR, NO.5 | ||||
| 44555-20011 |
AT170,171,ST170..GLIM,S,SE |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-20031 |
AT170,171..GLIM,S,SE |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-20010 |
AT170,171,ST170..GLIM,S,SE |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-20031 |
AT170,171..GLIM,S,SE |
1 | ||
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-16050 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 47150-20230 |
AT170,171,ST170..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 47150-20160 |
AT171,175,CT176,ET176..DX,GLIM,SE,SG,SGEXT,STD |
1 | ||
| Common parts | ||||
| 90099-04400 | ||||
| 90119-08157 | ||||
| 90179-08037 | ||||
| 90179-10074 | ||||
| 91611-60814 | ||||
| 91651-60614 | ||||
| 91661-60814 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94614-10600 | ||||

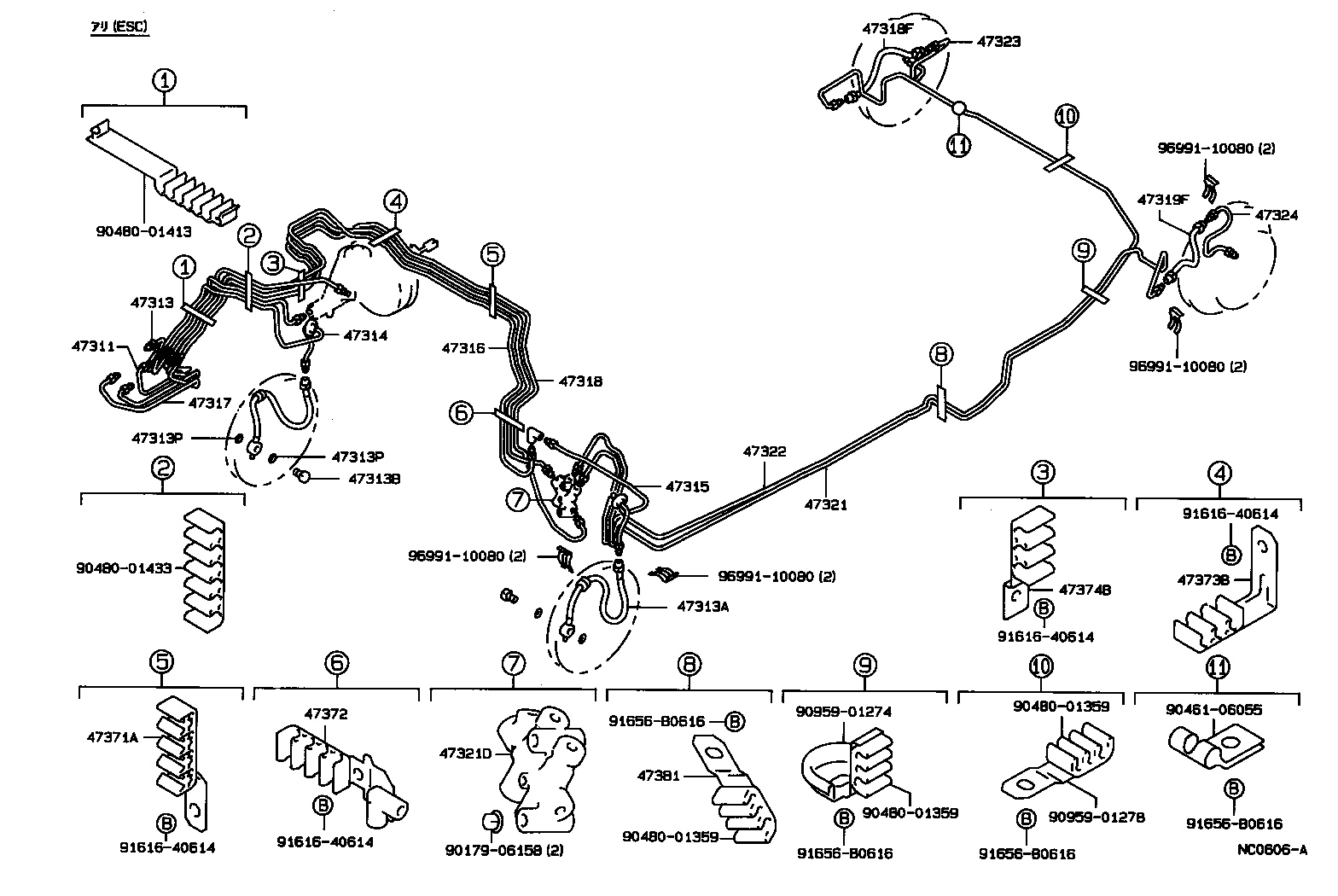

ILLUST NO. 1 OF 2(8808-9005)AT170,171..S,SE ; (9005- )AT170..SE,SG,SGEXT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20520 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 47311-20550 |
AT170,171..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20340 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47313-20370 |
AT170,171..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02565 |
AT170,171,CT17#,ET176,ST170 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AT17#,CT17#,ET176,ST170 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20280 |
AT170,171..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 47314-20300 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20400 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20401 |
AT170,171..S,SE |
1 | ||
| 47316-20400 |
AT170,171..S,SE |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-20060 |
AT170,171..S,SE |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20190 |
AT170,171..S,SE |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02497 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02497 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20190 |
AT170,171,CT170,ST170 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
AT170,171,ST170..GLIM,S,SE |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20310 |
AT170,171,CT170,ST170 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-32040 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-32040 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20080 |
AT170,171,ST170..GLIM,S,SE |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-20090 |
AT170,171,ST170..GLIM,S,SE |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-20120 |
AT170,171,ST170..GLIM,S,SE |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-20060 |
AT170,171,CT170,ST170 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90461-06055 | ||||
| 90480-01359 | ||||
| 90480-01413 | ||||
| 90480-01433 | ||||
| 90959-01274 | ||||
| 90959-01278 | ||||
| 91616-40614 | ||||
| 91656-B0616 | ||||
| 96991-10080 | ||||
