AT171-CEPSK (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )AT170,171,CT17#..4FC..DX,S,SE,SG,SV ;(8808- )AT175..4FC

Click highlighted areas on diagram

A240L,A241L,A241H

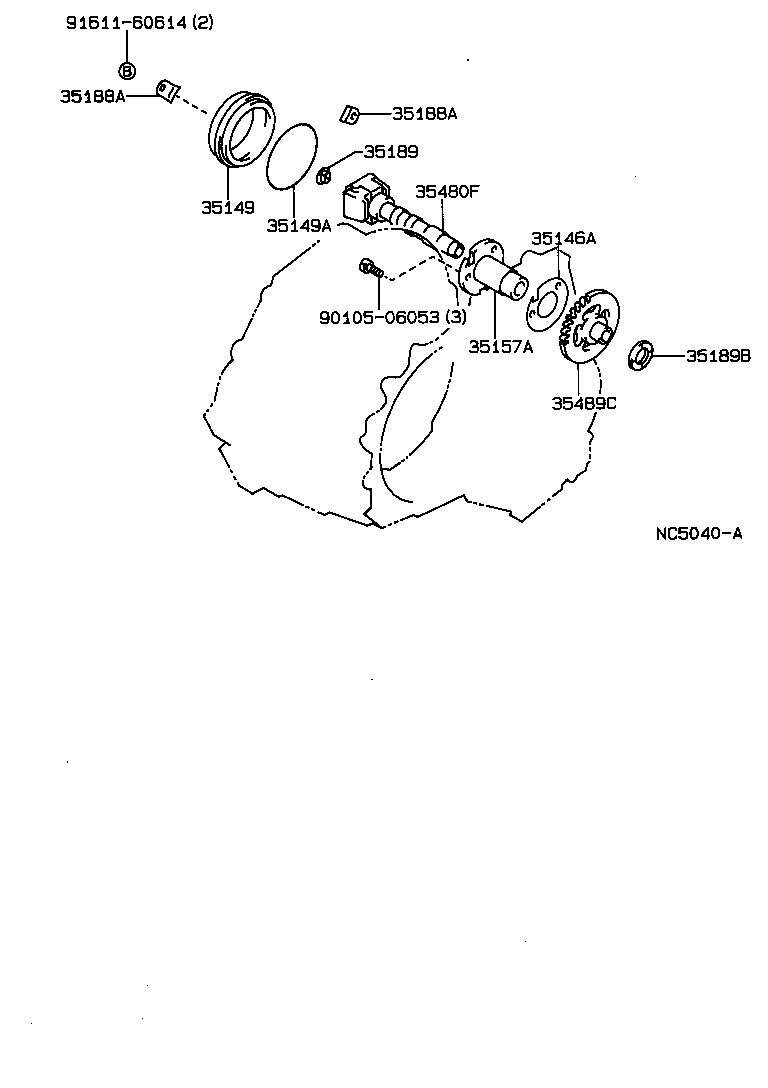

diagram 35146A 35149 35149A 35157A 35188A 35188A 35189 35189B 35480F 35489C 9010506053 9161160614
Part # Description Qty Price
35146A - GASKET, GOVERNOR BODY
35146-20010

AT17#,CT17#..4FC..(DX,S,SE,SG,SGEXT,SV)

 1
35149 - COVER, GOVERNOR
35149-20010

AT17#,CT17#..4FC..(DX,S,SE,SG,SGEXT,SV)

 1
35149A - RING, O (FOR GOVERNOR COVER)
90301-68001

AT17#,CT17#..4FC..(DX,S,SE,SG,SGEXT,SV)

 1
35157A - ADAPTER, GOVERNOR BODY
35157-20031

AT17#,CT17#..4FC..(DX,S,SE,SG,SGEXT,SV)

 1
35188A - BRACKET, GOVERNOR COVER
35188-20010

AT17#,CT17#..4FC..(DX,S,SE,SG,SGEXT,SV)

 2
35188A - BRACKET, GOVERNOR COVER
35188-20010

AT17#,CT17#..4FC..(DX,S,SE,SG,SGEXT,SV)

 2
35189 - WASHER, GOVERNOR THRUST, NO.1
35189-32011

AT17#,CT17#,ET176,ST170..ATM..(DX,S,SE,SG,SGEXT,SV,SX)

 1
35189B - WASHER, GOVERNOR THRUST, NO.2
35189-12010

AT17#,CT17#..4FC

 1
35480F - BODY ASSY, GOVERNOR
35480-12030

AT17#..4FC..(DX,S,SE,SG,SGEXT,SV)

 1
35489C - GEAR, GOVERNOR DRIVEN
35489-12010

AT17#,CT17#..4FC

 1
Common parts
90105-06053
91611-60614
